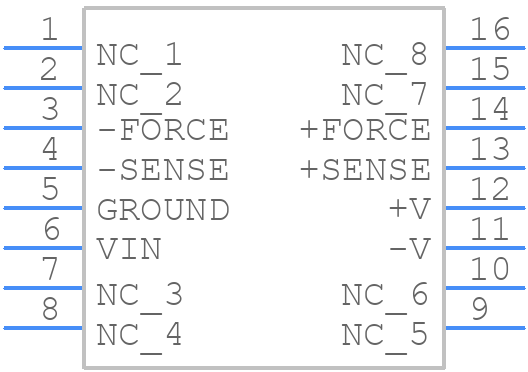

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SSM2142S by Analog Devices Inc
Results Overview of SSM2142S by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SSM2142S Information
SSM2142S by Analog Devices Inc is an Other Analog IC.
Other Analog ICs are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for SSM2142S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 1400 |
|
RFQ | ||
|
|
Bristol Electronics | 81 |
|
RFQ | ||
|
|
Bristol Electronics | 7 |
|
RFQ | ||
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 244 |
|
$3.5000 / $5.3800 | Buy Now |
|
|
Cytech Systems Limited | 7850 |
|
RFQ | ||
|
|
Win Source Electronics | Balanced Line Driver | 800 |
|
$24.3750 / $36.5625 | Buy Now |
Part Details for SSM2142S
SSM2142S CAD Models
SSM2142S Part Data Attributes
|
|
SSM2142S
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
SSM2142S
Analog Devices Inc
IC SPECIALTY ANALOG CIRCUIT, PDSO16, SOL-16, Analog IC:Other
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | SOL-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e0 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Nom (Vsup) | -18 V | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 240 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Nom (Vsup) | 18 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Lead (Sn85Pb15) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for SSM2142S
This table gives cross-reference parts and alternative options found for SSM2142S. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SSM2142S, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SSM2142SZ | Analog Devices Inc | Check for Price | Balance Line Driver | SSM2142S vs SSM2142SZ |
| SSM2142SZ-REEL | Analog Devices Inc | Check for Price | Balance Line Driver | SSM2142S vs SSM2142SZ-REEL |
