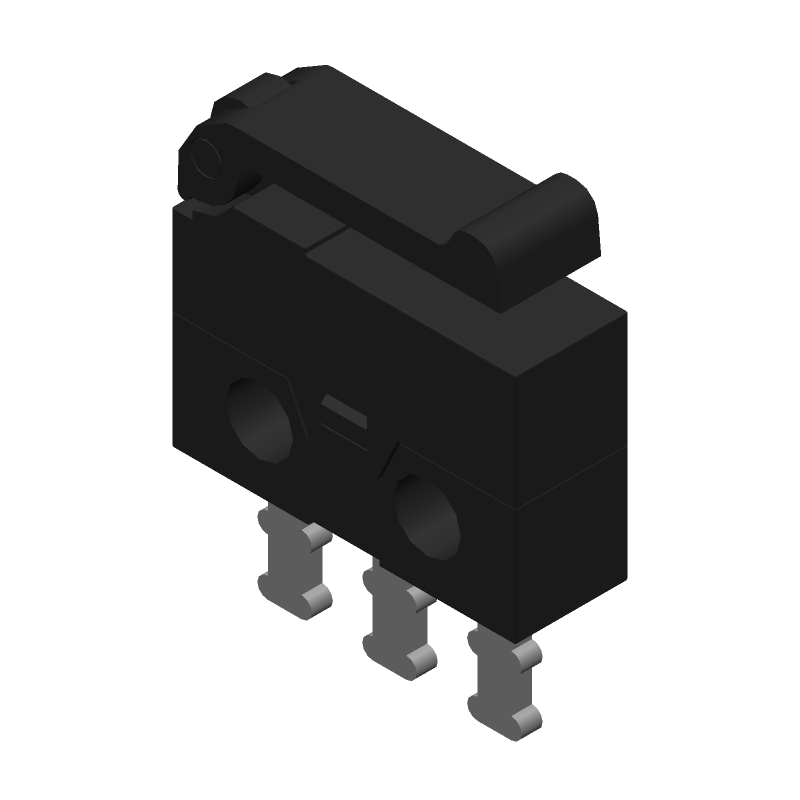

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SSM-001 by SPC Multicomp
Results Overview of SSM-001 by SPC Multicomp
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SSM-001 Information
SSM-001 by SPC Multicomp is a Snap Acting/Limit Switch.
Snap Acting/Limit Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SSM3K77FS | Toshiba Electronic Devices & Storage Corporation | N-ch MOSFET, 20 V, 0.2 A, 2.2 Ω@4.5 V, SSM | |
| SSM3K79FS | Toshiba Electronic Devices & Storage Corporation | N-ch MOSFET, 30 V, 0.1 A, 3.6 Ω@4 V, SSM | |
| SSM3J78FS | Toshiba Electronic Devices & Storage Corporation | P-ch MOSFET, -20 V, -0.25 A, 1.4 Ω@-4.5 V, SSM |
Price & Stock for SSM-001
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
24R7445
|
Newark | Microswitch, Lever, Spdt, 500Ma, Microswitch Type:Snap Action, Microswitch Actuator:Lever, Contact Configuration:Spdt, Switch Terminals:Solder, Contact Current Max:500Ma, Contact Voltage Dc Nom:30Vdc, Product Range:- Rohs Compliant: Yes |Multicomp Pro SSM-001 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 21824 |
|
$0.0900 | Buy Now |
|
DISTI #
28981321
|
Verical | Switch Snap Action N.O./N.C. SPDT Lever 0.5A 30VDC 1.18N Screw Mount Solder Min Qty: 556 Package Multiple: 1 | Americas - 21724 |
|
$0.1212 / $0.1360 | Buy Now |
Part Details for SSM-001
SSM-001 CAD Models
SSM-001 Part Data Attributes
|
|
SSM-001
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
SSM-001
SPC Multicomp
Snap Acting/Limit Switch, SPDT, Vertical, 0.5A, 30VDC, Solder Terminal, Plunger Actuator, Through Hole-straight
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.55 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Actuator Material | POLYOXYMETHYLENE | |
| Actuator Type | PLUNGER | |
| Body Breadth | 2.6924 mm | |
| Body Length or Diameter | 8.2042 mm | |
| Center Contact Material | SILVER ALLOY | |
| Contact Current(DC)-Max | 0.5 A | |
| Contact (DC) Max Rating R Load | 0.5A@30VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 30 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | SILVER ALLOY | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -15 °C | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPDT | |
| Switch Type | SNAP ACTING/LIMIT SWITCH | |
| Terminal Length | 0.122 inch | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
SSM-001 Frequently Asked Questions (FAQ)
-
The recommended storage condition for SSM-001 is in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 70%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
-
Yes, SSM-001 is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10Hz to 2000Hz. However, it's recommended to consult with the manufacturer or a qualified engineer to ensure the device meets the specific vibration requirements of your application.
-
To prevent electrostatic discharge (ESD) damage, handle SSM-001 with ESD-protective equipment, such as wrist straps, mats, or bags. Ensure that the device is grounded before handling, and avoid touching the pins or components directly.
-
The maximum operating temperature range for SSM-001 is -40°C to 125°C. However, the device's performance and reliability may degrade if operated outside the recommended temperature range of -20°C to 85°C.
-
No, SSM-001 is not designed for use in humid or wet environments. The device is sensitive to moisture, and exposure to high humidity or water can cause damage or malfunction. If your application requires operation in humid or wet environments, consider using a different device or implementing additional protection measures.
