SSL0402T-470M-N Information
SSL0402T-470M-N by Chilisin Electronics Corp is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LP3470M5X-3.08/NOPB | Texas Instruments | Active low Reset IC with Programmable Delay and 1% Reset Threshold 5-SOT-23 0 to 0 | |
| LP3470M5-4.00/NOPB | Texas Instruments | Active low Reset IC with Programmable Delay and 1% Reset Threshold 5-SOT-23 0 to 0 | |
| LP3470M5-3.08 | Texas Instruments | Active low Reset IC with Programmable Delay and 1% Reset Threshold 5-SOT-23 -20 to 85 |
Price & Stock for SSL0402T-470M-N
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Inductors | 918 |
|
RFQ |
Part Details for SSL0402T-470M-N

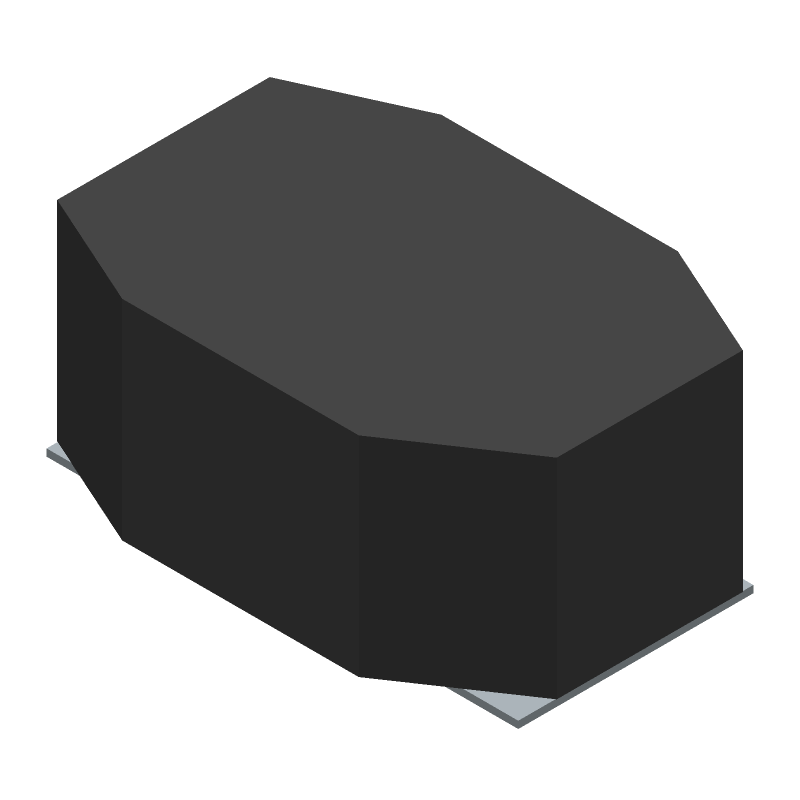

SSL0402T-470M-N CAD Models
SSL0402T-470M-N Part Data Attributes
|
|
SSL0402T-470M-N
Chilisin Electronics Corp
Buy Now
Datasheet
|
Compare Parts:
SSL0402T-470M-N
Chilisin Electronics Corp
General Purpose Inductor, 47uH, 20%, 2618
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | CHILISIN ELECTRONICS CORP | |
| Package Description | 2618 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | Chilisin | |
| Case/Size Code | 2618 | |
| Construction | Rectangular | |
| DC Resistance | 0.64 Ω | |
| Inductance-Nom (L) | 47 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 2.92 mm | |
| Package Length | 6.6 mm | |
| Package Style | SMT | |
| Package Width | 4.45 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Current-Max | 0.5 A | |
| Self Resonance Frequency | 14 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | FLAT | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
