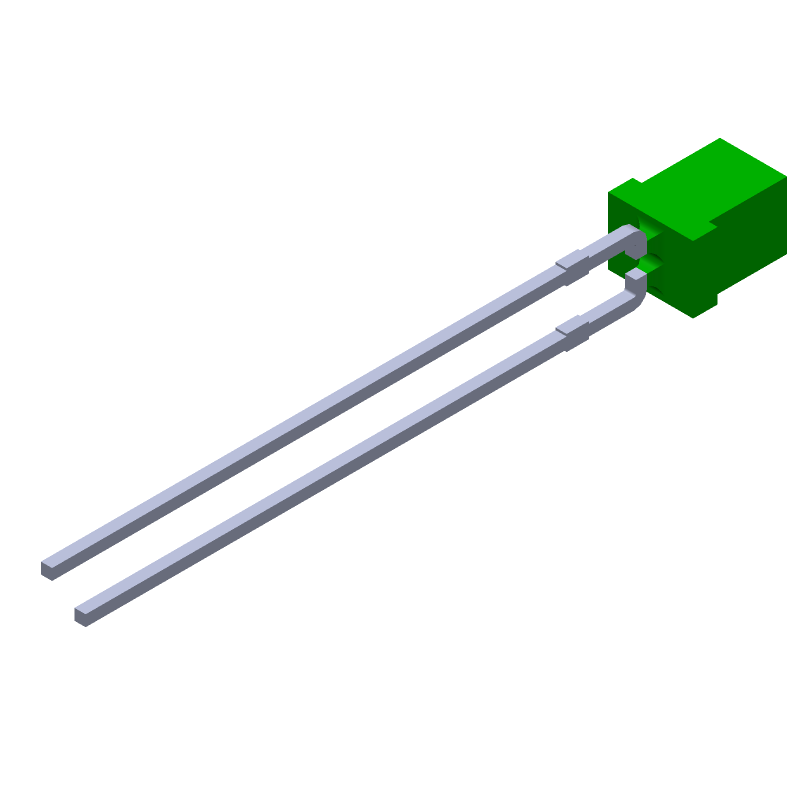

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SSL-LX3353GD by ITW Lumex
Results Overview of SSL-LX3353GD by ITW Lumex
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Healthcare
SSL-LX3353GD Information
SSL-LX3353GD by ITW Lumex is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for SSL-LX3353GD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20J2046
|
Newark | Rectangular Led Lamp, green, diffused, led-6B Rohs Compliant: Yes |Lumex SSL-LX3353GD RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.0830 / $0.0840 | Buy Now |
|
DISTI #
SSL-LX3353GD-ND
|
DigiKey | LED GRN DIFF SQUARE TYPE LED T/H Min Qty: 1 Lead time: 14 Weeks Container: Bulk |
19751 In Stock |
|
$0.0913 / $0.3400 | Buy Now |
|
DISTI #
696-SSL-LX3353GD
|
Mouser Electronics | Single Color LEDs Green, Square LED Diffuse, 565nm, 3x3 RoHS: Compliant | 11062 |
|
$0.0780 / $0.2200 | Buy Now |
|
DISTI #
71494729
|
RS | 3X3 SQUARE LED 565 GREEN TOP DFSD Min Qty: 20000 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1150 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.0720 / $0.1508 | Buy Now |
|
DISTI #
SSL-LX3353GD
|
IBS Electronics | SSL-LX3353GD by LUMEX is a green 3x3 mm square through-hole LED with 80°, diffused lens, 10 mcd brightness, 2.2 V forward voltage, ideal for indicators and displays. Min Qty: 20000 Package Multiple: 1 | 0 |
|
$0.1006 / $0.1097 | Buy Now |
Part Details for SSL-LX3353GD
SSL-LX3353GD CAD Models
SSL-LX3353GD Part Data Attributes
|
|
SSL-LX3353GD
ITW Lumex
Buy Now
Datasheet
|
Compare Parts:
SSL-LX3353GD
ITW Lumex
Single Color LED, Green, Diffused, 3mm,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LUMEX INC | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Lumex | |
| Color | GREEN | |
| Color@Wavelength | Green | |
| Configuration | SINGLE WITH BUILT-IN RESISTOR | |
| Forward Current-Max | 0.025 A | |
| Forward Voltage-Max | 2.8 V | |
| Lens Type | DIFFUSED | |
| Luminous Intensity-Nom | 10.0 mcd | |
| Mounting Feature | RADIAL MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 4.6 mm | |
| Packing Method | BULK | |
| Peak Wavelength | 565 nm | |
| Shape | SQUARE | |
| Size | 3 mm | |
| Surface Mount | NO | |
| Terminal Pitch | 2.54 mm | |
| Viewing Angle | 80 deg |
