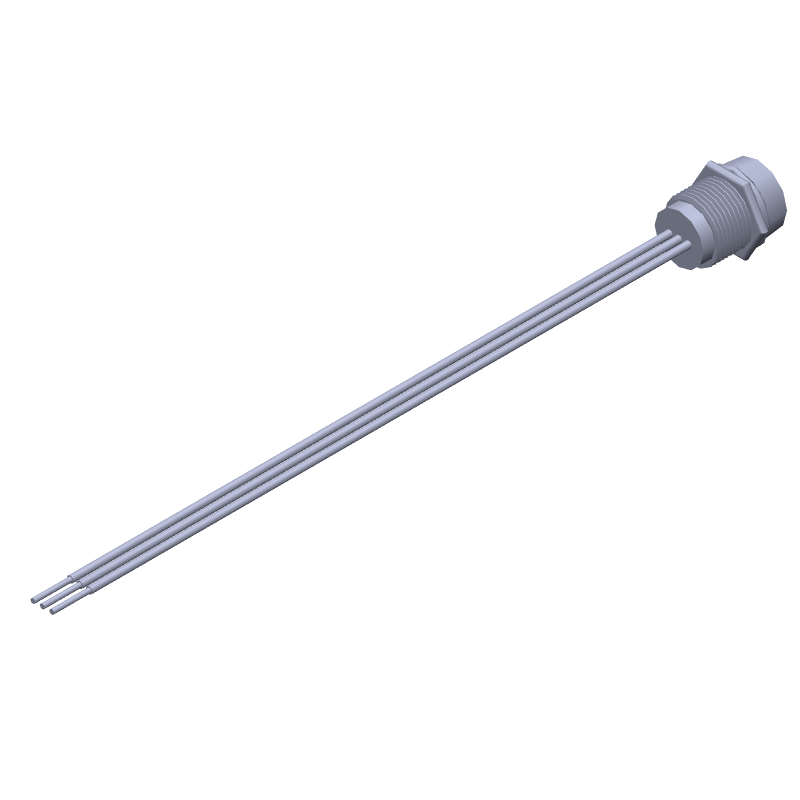

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SSI-LXR4915IGW3150 by ITW Lumex
Results Overview of SSI-LXR4915IGW3150 by ITW Lumex
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SSI-LXR4915IGW3150 Information
SSI-LXR4915IGW3150 by ITW Lumex is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for SSI-LXR4915IGW3150
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
696-ILXR4915IGW315
|
Mouser Electronics | LED Panel Mount Indicators LED PMI RoHS: Compliant | 0 |
|
$2.5300 | Order Now |
|
DISTI #
71495427
|
RS | T10mm CHRM PNL IND RD/GR N BIClear 3LDS 6 Min Qty: 20000 Package Multiple: 1 Container: Bulk | 0 |
|
$2.3000 / $3.0600 | RFQ |
Part Details for SSI-LXR4915IGW3150
SSI-LXR4915IGW3150 CAD Models
SSI-LXR4915IGW3150 Part Data Attributes
|
|
SSI-LXR4915IGW3150
ITW Lumex
Buy Now
Datasheet
|
Compare Parts:
SSI-LXR4915IGW3150
ITW Lumex
Dual Color LED, Red/green, Diffused Milky White, T-4, 10mm,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LUMEX INC | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Lumex | |
| Color | RED/GREEN | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Forward Current-Max | 0.03 A | |
| Lens Type | DIFFUSED MILKY WHITE | |
| Luminous Intensity-Nom | 20.0 mcd | |
| Mounting Feature | PANEL MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | DUAL COLOR LED | |
| Overall Height | 20 mm | |
| Packing Method | BULK | |
| Peak Wavelength | 635/565 nm | |
| Shape | ROUND | |
| Size | 10 mm | |
| Surface Mount | NO | |
| T-code | T-4 | |
| Viewing Angle | 60 deg |
