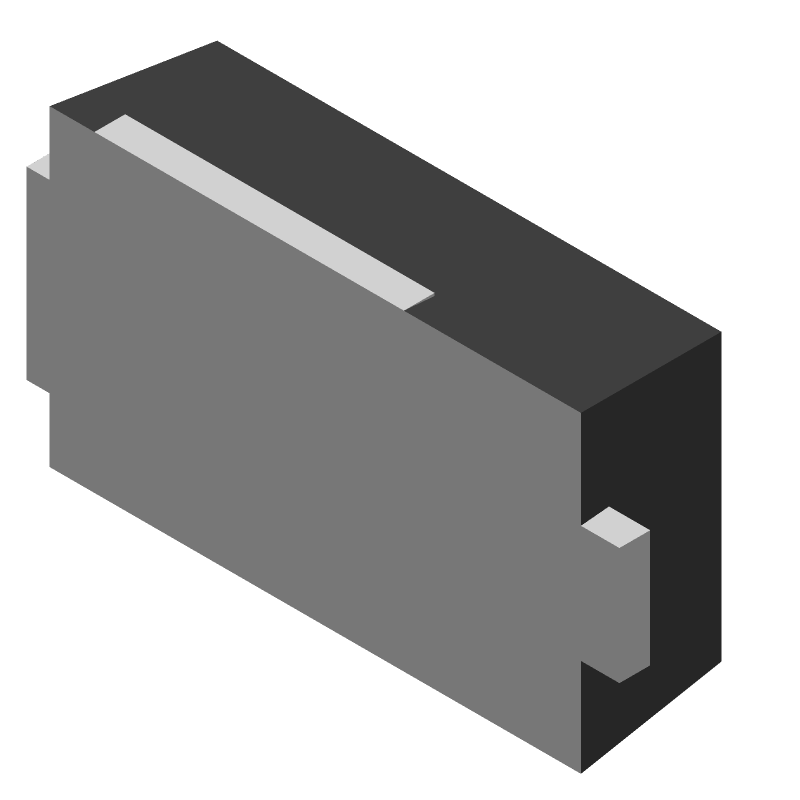

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SS3P6-M3/84A by Vishay Intertechnologies
Results Overview of SS3P6-M3/84A by Vishay Intertechnologies
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
SS3P6-M3/84A Information
SS3P6-M3/84A by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SS3P6-M3/84A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75R3245
|
Newark | Diode, Rectifier, Schottky, 3A, 60V, Smp, Repetitive Reverse Voltage Vrrm Max:60V, Forward Current If(Av):3A, Diode Configuration:Single, Diode Case Style:Smd, No. Of Pins:2Pins, Forward Voltage Vf Max:780Mv, Product Range:- Rohs Compliant: Yes |Vishay SS3P6-M3/84A RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 9035 |
|
$0.1720 / $0.3810 | Buy Now |
|
DISTI #
79AH6922
|
Newark | 3A,60V, sm Schottky Rect. Rohs Compliant: Yes |Vishay SS3P6-M3/84A RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 3000 |
|
$0.0650 | Buy Now |
|
DISTI #
SS3P6-M3/84A
|
Avnet Americas | Schottky Rectifier, 60 V, 3 A, Single, DO-220AA, 2 Pins, 780 mV - Tape and Reel (Alt: SS3P6-M3/84A) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 5 Weeks, 0 Days Container: Reel | 3000 |
|
$0.0604 / $0.0650 | Buy Now |
|
DISTI #
625-SS3P6-M3/84A
|
Mouser Electronics | Schottky Diodes & Rectifiers 60volts 3.0 Amp 45 Amp IFSM RoHS: Compliant | 15176 |
|
$0.0660 / $0.3200 | Buy Now |
|
DISTI #
E02:0323_00941747
|
Arrow Electronics | Diode Schottky Si 60V 3A 2-Pin SMP T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 5 Weeks Date Code: 2513 | Europe - 9000 |
|
$0.0843 | Buy Now |
|
DISTI #
V72:2272_18773743
|
Arrow Electronics | Diode Schottky Si 60V 3A 2-Pin SMP T/R Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2236 Container: Cut Strips | Americas - 19 |
|
$0.0654 / $0.3200 | Buy Now |
|
DISTI #
88117502
|
Verical | Diode Schottky Si 60V 3A 2-Pin SMP T/R Min Qty: 3000 Package Multiple: 3000 Date Code: 2513 | Americas - 9000 |
|
$0.0849 | Buy Now |
|
DISTI #
SS3P6-M3/84A
|
TTI | Schottky Diodes & Rectifiers 60volts 3.0 Amp 45 Amp IFSM RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 6000 In Stock |
|
$0.0850 / $0.0920 | Buy Now |
|
DISTI #
SS3P6-M3/84A
|
TME | Diode: Schottky rectifying, SMP, SMD, 60V, 3A, reel,tape Min Qty: 1 | 1990 |
|
$0.0980 / $0.3900 | Buy Now |
|
DISTI #
SS3P6-M3/84A
|
IBS Electronics | DIODE SCHOTTKY 60V 3A 2-PIN SMP T/R / DIODE SCHOTTKY 60V 3A DO220AA Min Qty: 3000 Package Multiple: 1 | 3000 |
|
$0.0716 / $0.0772 | Buy Now |
Part Details for SS3P6-M3/84A
SS3P6-M3/84A CAD Models
SS3P6-M3/84A Part Data Attributes
|
|
SS3P6-M3/84A
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SS3P6-M3/84A
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 60V V(RRM), Silicon, DO-220AA, PLASTIC, SMP, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | PLASTIC, SMP, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, LOW POWER LOSS | |
| Application | EFFICIENCY | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.78 V | |
| JEDEC-95 Code | DO-220AA | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 45 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 60 V | |
| Reverse Current-Max | 100 µA | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
SS3P6-M3/84A Frequently Asked Questions (FAQ)
-
The recommended storage temperature for the SS3P6-M3/84A is -40°C to 125°C.
-
Yes, the SS3P6-M3/84A is designed for high-reliability applications and is qualified to MIL-PRF-19500/452.
-
The maximum surge current rating for the SS3P6-M3/84A is 100 A for 10 ms.
-
Yes, the SS3P6-M3/84A is designed to operate in high-temperature environments up to 175°C.
-
Yes, the SS3P6-M3/84A is RoHS compliant and meets the requirements of the EU's Restriction of Hazardous Substances directive.
