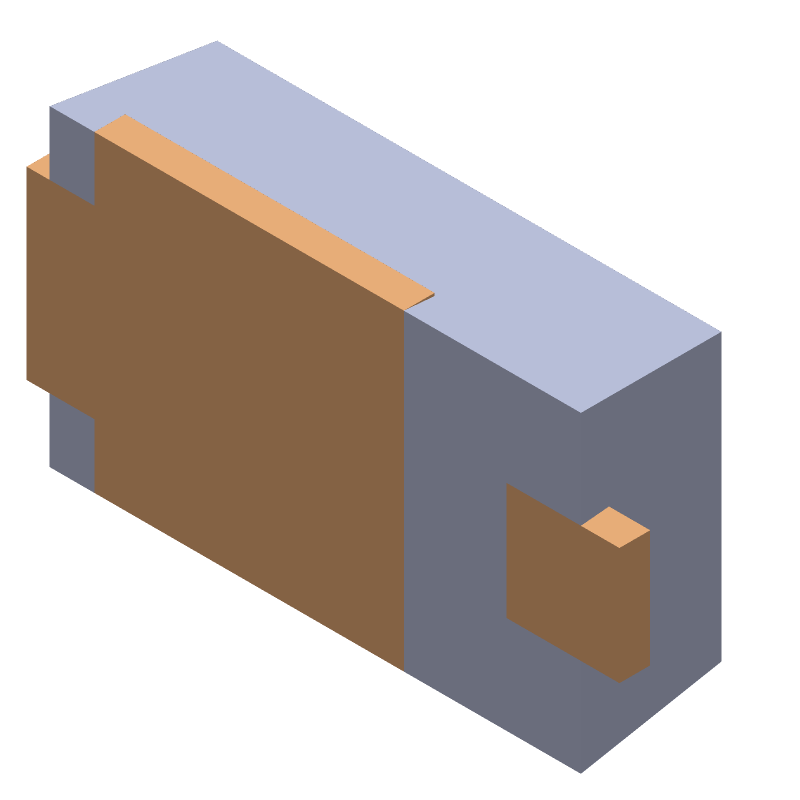

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SS2P3-M3/84A by Vishay Intertechnologies
Results Overview of SS2P3-M3/84A by Vishay Intertechnologies
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
SS2P3-M3/84A Information
SS2P3-M3/84A by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SS2P3-M3/84A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1812484
|
Farnell | DIODE, RECTIFIER, SCHOTTKY, 2A, 30V, SMP RoHS: Compliant Min Qty: 5 Lead time: 8 Weeks, 1 Days Container: Each | 135 |
|
$0.1128 / $0.4004 | Buy Now |
|
DISTI #
SS2P3-M3/84A
|
Avnet Americas | 2A,30V,SMP SCHOTTKY RECT. - Tape and Reel (Alt: SS2P3-M3/84A) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 5 Weeks, 0 Days Container: Reel | 0 |
|
$0.0874 / $0.0946 | Buy Now |
|
DISTI #
625-SS2P3-M3/84A
|
Mouser Electronics | Schottky Diodes & Rectifiers 30volt 2.0amp RoHS: Compliant | 5374 |
|
$0.0920 / $0.2800 | Buy Now |
|
DISTI #
E02:0323_00936928
|
Arrow Electronics | Diode Schottky 30V 2A 2-Pin SMP T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 5 Weeks Date Code: 2504 | Europe - 3000 |
|
$0.1039 | Buy Now |
|
DISTI #
V72:2272_18775749
|
Arrow Electronics | Diode Schottky 30V 2A 2-Pin SMP T/R Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2150 Container: Cut Strips | Americas - 1 |
|
$0.0912 | Buy Now |
|
DISTI #
87670678
|
Verical | Diode Schottky 30V 2A 2-Pin SMP T/R Min Qty: 3000 Package Multiple: 3000 Date Code: 2504 | Americas - 3000 |
|
$0.1042 | Buy Now |
|
|
Bristol Electronics | 4340 |
|
RFQ | ||
|
DISTI #
SS2P3-M3/84A
|
TME | Diode: Schottky rectifying, SMP, SMD, 30V, 2A, reel,tape Min Qty: 1 | 0 |
|
$0.1130 / $0.3530 | RFQ |
|
DISTI #
SS2P3-M3/84A
|
IBS Electronics | SS2P3 SERIES 30 V 2 A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER - DO-220AA Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.1339 / $0.1391 | Buy Now |
|
DISTI #
DSKY6414
|
Rutronik | SCHOTTKY-D. 2A 30V 0,50V SMP RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Stock DE - 51000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$0.0856 / $0.1051 | Buy Now |
Part Details for SS2P3-M3/84A
SS2P3-M3/84A CAD Models
SS2P3-M3/84A Part Data Attributes
|
|
SS2P3-M3/84A
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SS2P3-M3/84A
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 30V V(RRM), Silicon, DO-220AA, SMP, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SMP, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, LOW POWER LOSS | |
| Application | EFFICIENCY | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.55 V | |
| JEDEC-95 Code | DO-220AA | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 50 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 150 µA | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
