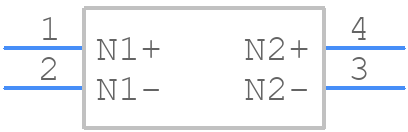

Part Symbol
-

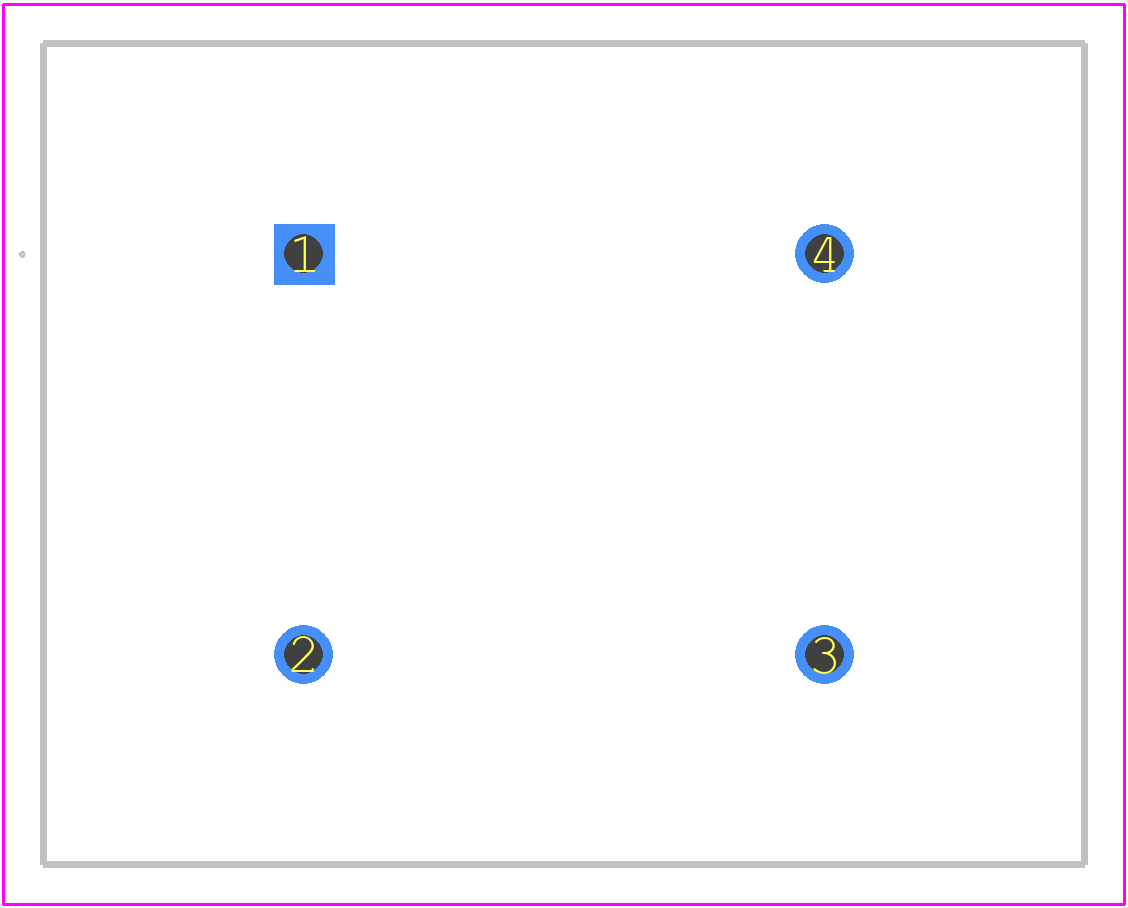

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SS26V-R180123 by KEMET Corporation
Results Overview of SS26V-R180123 by KEMET Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
SS26V-R180123 Information
SS26V-R180123 by KEMET Corporation is a Main Filter.
Mains Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for SS26V-R180123
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
19X2085
|
Newark | Common Mode Filter, 12300Uh, Thd, Inductance:12.3Mh, Rated Current:1.8A, Product Range:Ss26V Series, Svhc:No Svhc (15-Jan-2018), Dc Current Max:1.8A Rohs Compliant: Yes |Kemet SS26V-R180123 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$2.1900 / $6.1000 | Buy Now |
|
DISTI #
399-10591-ND
|
DigiKey | CMC 12.3MH 1.8A 2LN TH Min Qty: 350 Lead time: 25 Weeks Container: Bulk | Temporarily Out of Stock |
|
$1.7825 | Buy Now |
|
DISTI #
SS26V-R180123
|
Avnet Americas | Choke, Common Mode, 12.3 mH, 1.8 A - Bulk (Alt: SS26V-R180123) RoHS: Compliant Min Qty: 350 Package Multiple: 350 Lead time: 11 Weeks, 0 Days Container: Bulk | 0 |
|
$1.5494 / $1.5817 | Buy Now |
|
DISTI #
80-SS26V-R180123
|
Mouser Electronics | Common Mode Chokes / Filters 250V 1.8A 12.3mH RoHS: Compliant | 146 |
|
$1.4200 / $5.0300 | Buy Now |
|
DISTI #
73245081
|
RS | AC Line Filters, CMC 12.3mH,1.8A, 0.3ohm Min Qty: 35 Package Multiple: 1 Lead time: 21 Weeks, 0 Days Container: Bulk | 0 |
|
$1.6140 / $1.9370 | RFQ |
|
DISTI #
SS26V-R180123
|
Avnet Abacus | Choke Common Mode 123 mH 18 A (Alt: SS26V-R180123) RoHS: Compliant Min Qty: 350 Package Multiple: 70 Lead time: 26 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for SS26V-R180123
SS26V-R180123 CAD Models
SS26V-R180123 Part Data Attributes
|
|
SS26V-R180123
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
SS26V-R180123
KEMET Corporation
Single Phase EMI Filter,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | KEMET | |
| Approvals | UL | |
| Filter Type | SINGLE PHASE EMI FILTER | |
| Height | 30.5 mm | |
| High Pot | 500 V | |
| Insulation Resistance-Min | 100 MΩ | |
| Length | 26 mm | |
| Mounting Type | THROUGH HOLE MOUNT | |
| Operating Temperature-Max | 120 °C | |
| Operating Temperature-Min | -25 °C | |
| Packing Method | TRAY | |
| Rated Current | 1.8 A | |
| Rated Voltage | 250 V | |
| Width | 20.5 mm |
SS26V-R180123 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the SS26V-R180123 is between 250°C to 260°C, with a maximum peak temperature of 260°C for a maximum of 10 seconds.
-
Yes, the SS26V-R180123 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
-
The equivalent series resistance (ESR) of the SS26V-R180123 is 0.18 ohms at 100 kHz and 20°C.
-
Yes, the SS26V-R180123 is designed to withstand high-vibration environments, with a vibration rating of 10 Hz to 2000 Hz, 10 G peak acceleration.
-
The shelf life of the SS26V-R180123 capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under recommended storage conditions.
