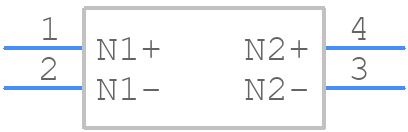

Part Symbol
-

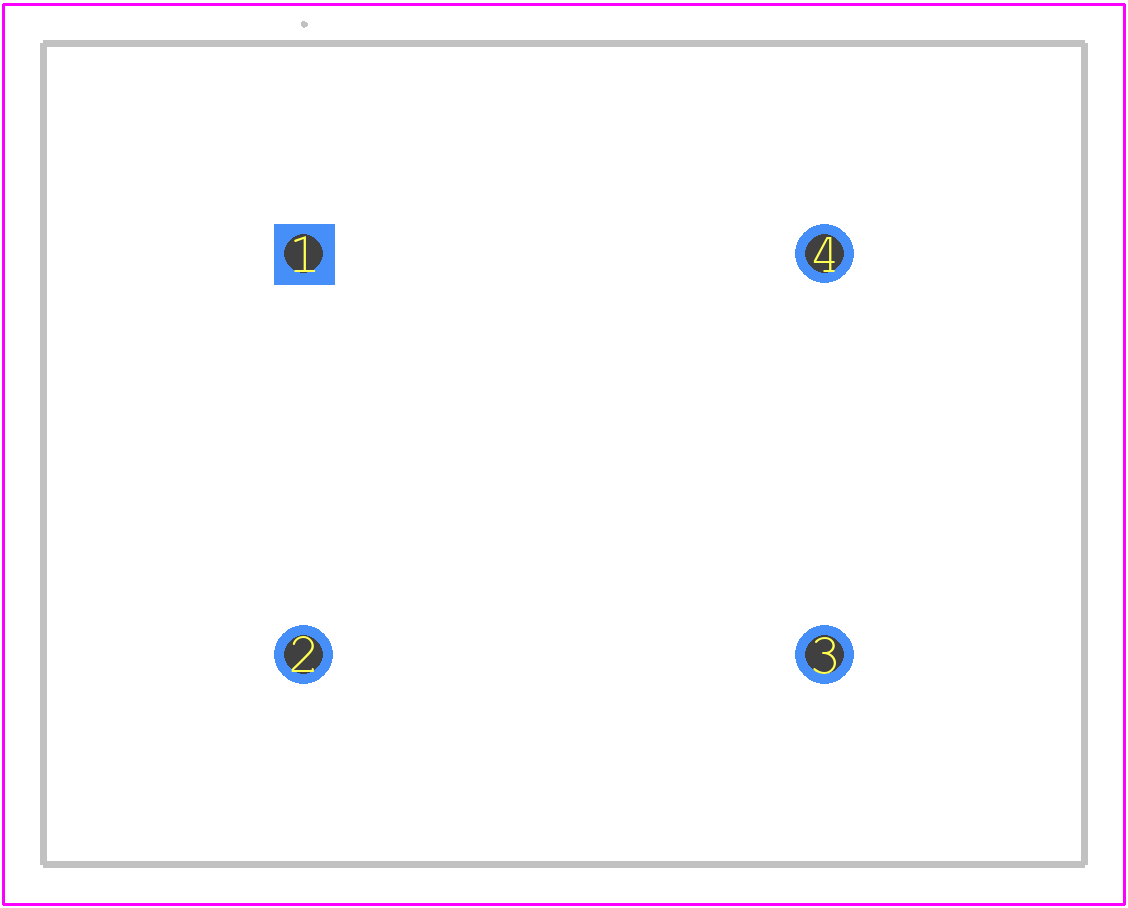

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SS26V-R150162 by KEMET Corporation
Results Overview of SS26V-R150162 by KEMET Corporation
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
SS26V-R150162 Information
SS26V-R150162 by KEMET Corporation is a Main Filter.
Mains Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for SS26V-R150162
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4428962
|
Farnell | RADIAL LEADED COMMON MODE CHOKES RoHS: Compliant Min Qty: 40 Lead time: 1 Weeks, 2 Days Container: Each | 260 |
|
$2.3555 / $2.6920 | Buy Now |
|
DISTI #
2364339
|
Farnell | COMMON MODE FILTER, 16200UH, THD RoHS: Compliant Min Qty: 1 Lead time: 26 Weeks, 1 Days Container: Each | 0 |
|
$1.7633 / $2.0998 | Buy Now |
|
DISTI #
2266-SS26V-R150162-ND
|
DigiKey | CMC 16.2MH 1.5A 2LN TH Min Qty: 30 Lead time: 25 Weeks Container: Bulk MARKETPLACE PRODUCT |
325 In Stock |
|
$2.1300 / $2.5400 | Buy Now |
|
DISTI #
399-10590-ND
|
DigiKey | CMC 16.2MH 1.5A 2LN TH Min Qty: 30 Lead time: 25 Weeks Container: Bulk | Temporarily Out of Stock |
|
$1.7825 | Buy Now |
|
DISTI #
SS26V-R150162
|
Avnet Americas | Choke, Common Mode, 16.2 mH, 1.5 A - Bulk (Alt: SS26V-R150162) RoHS: Compliant Min Qty: 350 Package Multiple: 350 Lead time: 11 Weeks, 0 Days Container: Bulk | 0 |
|
$1.0423 / $1.0923 | Buy Now |
|
DISTI #
80-SS26V-R150162
|
Mouser Electronics | Common Mode Chokes / Filters 250VAC 1.5A 16.2mH RoHS: Compliant | 697 |
|
$1.4500 / $2.7700 | Buy Now |
|
DISTI #
V79:2366_18324993
|
Arrow Electronics | Common Mode Chokes Dual 16200uH 1kHz 1.5A 0.4Ohm DCR Thru-Hole RoHS: Compliant Min Qty: 102 Package Multiple: 1 Lead time: 54 Weeks Date Code: 1401 | Americas - 340 |
|
$0.9800 | Buy Now |
|
DISTI #
73245080
|
RS | AC Line Filters, CMC 16.2mH,1.5A, 0.4ohm Min Qty: 35 Package Multiple: 1 Lead time: 21 Weeks, 0 Days Container: Bulk | 0 |
|
$1.6400 / $1.7800 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant |
325 Partner Stock |
|
$1.7600 / $2.5000 | Buy Now |
|
DISTI #
26121508
|
Verical | Common Mode Chokes Dual 16200uH 1kHz 1.5A 0.4Ohm DCR Thru-Hole RoHS: Compliant Min Qty: 102 Package Multiple: 1 Date Code: 1401 | Americas - 340 |
|
$0.9800 | Buy Now |
Part Details for SS26V-R150162
SS26V-R150162 CAD Models
SS26V-R150162 Part Data Attributes
|
|
SS26V-R150162
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
SS26V-R150162
KEMET Corporation
Single Phase EMI Filter,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | KEMET | |
| Approvals | UL | |
| Filter Type | SINGLE PHASE EMI FILTER | |
| Height | 30.5 mm | |
| High Pot | 500 V | |
| Insulation Resistance-Min | 100 MΩ | |
| Length | 26 mm | |
| Mounting Type | THROUGH HOLE MOUNT | |
| Operating Temperature-Max | 120 °C | |
| Operating Temperature-Min | -25 °C | |
| Packing Method | TRAY | |
| Rated Current | 1.5 A | |
| Rated Voltage | 250 V | |
| Width | 20.5 mm |
