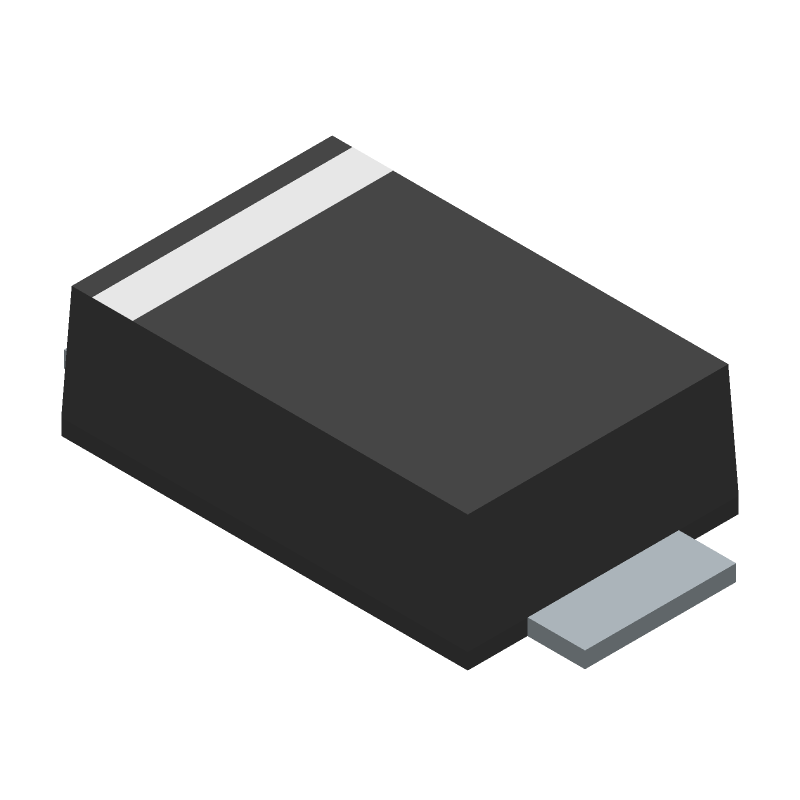

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SS26FLQ-TP by Micro Commercial Components
Results Overview of SS26FLQ-TP by Micro Commercial Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SS26FLQ-TP Information
SS26FLQ-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SS26FLQ-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-SS26FLQ-TPCT-ND
|
DigiKey | DIODE SCHOTTKY 60V 2A DO221AC Min Qty: 1 Lead time: 24 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
9970 In Stock |
|
$0.0838 / $0.4000 | Buy Now |
|
DISTI #
833-SS26FLQ-TP
|
Mouser Electronics | Schottky Diodes & Rectifiers SCHOTTKY BARRIER RECTIFIERS 60V 2A,DO-221AC RoHS: Compliant | 9994 |
|
$0.0980 / $0.4000 | Buy Now |
|
DISTI #
84024876
|
Verical | Surface Mount Schottky Rectifier Min Qty: 10000 Package Multiple: 10000 | Americas - 20000 |
|
$0.0800 | Buy Now |
Part Details for SS26FLQ-TP
SS26FLQ-TP CAD Models
SS26FLQ-TP Part Data Attributes
|
|
SS26FLQ-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SS26FLQ-TP
Micro Commercial Components
Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 60V V(RRM), Silicon, DO-221AC, SMA-FL, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | SMA-FL, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Breakdown Voltage-Min | 60 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.7 V | |
| JEDEC-95 Code | DO-221AC | |
| JESD-30 Code | R-PDSO-F2 | |
| Non-rep Pk Forward Current-Max | 75 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 60 V | |
| Reverse Current-Max | 100 µA | |
| Reverse Test Voltage | 60 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL |
