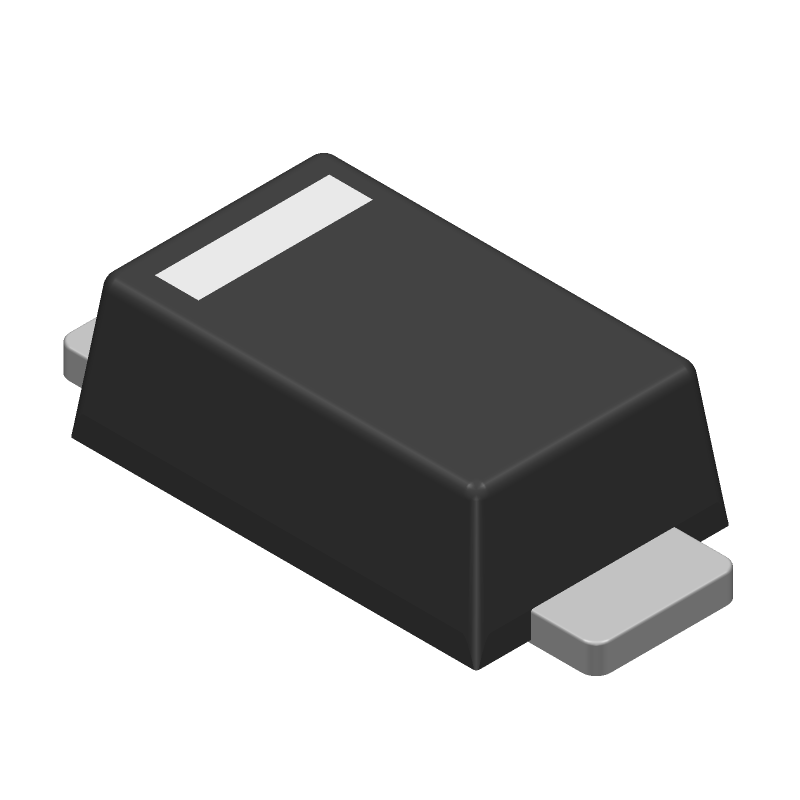

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SS14FP by onsemi
Results Overview of SS14FP by onsemi
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
SS14FP Information
SS14FP by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SS14FP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
07AH4832
|
Newark | Schottky Rect, Single, 40V, Sod-123He, Repetitive Reverse Voltage Vrrm Max:40V, Forward Current If(Av):1A, Diode Configuration:Single, Diode Case Style:Sod-123He, No. Of Pins:2Pins, Forward Voltage Vf Max:450Mv, Forward Surge Currentrohs Compliant: Yes |Onsemi SS14FP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3144 |
|
$0.1580 / $0.3900 | Buy Now |
|
DISTI #
SS14FPCT-ND
|
DigiKey | DIODE SCHOTTKY 40V 1A SOD123HE Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4250 In Stock |
|
$0.0715 / $0.3500 | Buy Now |
|
DISTI #
SS14FP
|
Avnet Americas | Diode Schottky 40V 1A 2-Pin SOD-123HE T/R - Tape and Reel (Alt: SS14FP) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.0736 / $0.0803 | Buy Now |
|
DISTI #
512-SS14FP
|
Mouser Electronics | Schottky Diodes & Rectifiers 40V 1A Schottky B arrier Rectifier RoHS: Compliant | 9297 |
|
$0.0710 / $0.3500 | Buy Now |
|
|
Onlinecomponents.com | Diode Schottky 40V 1A 2-Pin SOD-123HE T/R - Tape and Reel RoHS: Compliant | 0 |
|
$0.0683 / $0.0781 | Buy Now |
|
|
Bristol Electronics | Min Qty: 34 | 220 |
|
$0.0750 / $0.1500 | Buy Now |
|
DISTI #
SS14FP
|
TME | Diode: Schottky rectifying, SOD123F, SMD, 40V, 1A, reel,tape Min Qty: 1 | 0 |
|
$0.0960 / $0.4960 | RFQ |
|
DISTI #
SS14FP
|
IBS Electronics | RECTIFIER DIODE SCHOTTKY 40V 1A 6NS 2-PIN SOD-123FL T/R Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.0853 / $0.0919 | Buy Now |
|
DISTI #
SS14FP
|
Richardson RFPD | RECTIFIER MODULE - SCHOTTKY RoHS: Compliant Min Qty: 9000 | 0 |
|
$0.0700 | Buy Now |
|
DISTI #
SS14FP
|
Avnet Asia | Diode Schottky 40V 1A 2-Pin SOD-123HE T/R (Alt: SS14FP) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days | 0 |
|
$0.0671 / $0.0750 | Buy Now |
Part Details for SS14FP
SS14FP CAD Models
SS14FP Part Data Attributes
|
|
SS14FP
onsemi
Buy Now
Datasheet
|
Compare Parts:
SS14FP
onsemi
1.0 A, 40 V, Surface Mount Schottky Barrier Rectifiers, SOD-123 FL, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-123 FL | |
| Manufacturer Package Code | 425AC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | LOW POWER LOSS | |
| Application | EFFICIENCY | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.55 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Reverse Current-Max | 400 µA | |
| Reverse Recovery Time-Max | 0.006 µs | |
| Reverse Test Voltage | 40 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
SS14FP Frequently Asked Questions (FAQ)
-
The SS14FP can handle surge currents up to 30A for 10ms, but it's recommended to derate the current to ensure reliable operation.
-
To ensure proper biasing, connect the anode to a voltage source through a current-limiting resistor, and the cathode to a voltage sink or ground through a current-limiting resistor. Consult the datasheet for specific values.
-
Use a compact, symmetrical layout with short leads and a solid ground plane. Keep the device away from high-frequency circuits and ensure good thermal conduction to the PCB.
-
Yes, the SS14FP is suitable for switching power supply applications due to its fast switching times and low forward voltage drop. However, ensure proper snubber design and layout to minimize ringing and EMI.
-
Use a voltage clamp or transient voltage suppressor (TVS) to protect against overvoltage, and a fuse or current-limiting resistor to protect against overcurrent. Consult the datasheet for specific recommendations.
