Diodes / Rectifier Diodes / SS14
Datasheets
SS14 by:

Rectifier Diode, Avalanche, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, PLASTIC, SMA, 2 PIN

Part Details for SS14 by SPC Multicomp

Results Overview of SS14 by SPC Multicomp

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

SS14 Information

SS14 by SPC Multicomp is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for SS14

Part # Distributor Description Stock Price Buy
DISTI # 90R9173
Newark Schottky Diode, 1A, 40V, Sma, Repetitive Peak Reverse Voltage:40V, Average Forward Current:1A, Diode Configuration:Single, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Forward Voltage Max:500Mv, Forward Surge Current:40A Rohs Compliant: Yes |Multicomp Pro SS14 RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 892
  • 1,000 $0.0460
$0.0460 Buy Now
DISTI # 05AC0191
Newark Schottky Rectifier, 1A, 40V, Do-214Ac, Repetitive Reverse Voltage Vrrm Max:40V, Forward Current If(Av):1A, Diode Configuration:Single, Diode Case Style:Do-214Ac, No. Of Pins:2Pins, Forward Voltage Vf Max:550Mv, Forward Surge Current Rohs Compliant: Yes |Multicomp Pro SS14 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $0.0770
  • 250 $0.0610
  • 500 $0.0560
  • 1,000 $0.0510
  • 5,000 $0.0480
$0.0480 / $0.0770 Buy Now
DISTI # 90R9174
Newark Schottky Diode, 1A, 40V, Sma, Full Reel, Repetitive Peak Reverse Voltage:40V, Average Forward Current:1A, Diode Configuration:Single, Diode Case Style:Do-214Ac (Sma), No. Of Pins:2Pins, Forward Voltage Max:550Mv, Product Range:- Rohs Compliant: Yes |Multicomp Pro SS14 RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now

Part Details for SS14

SS14 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

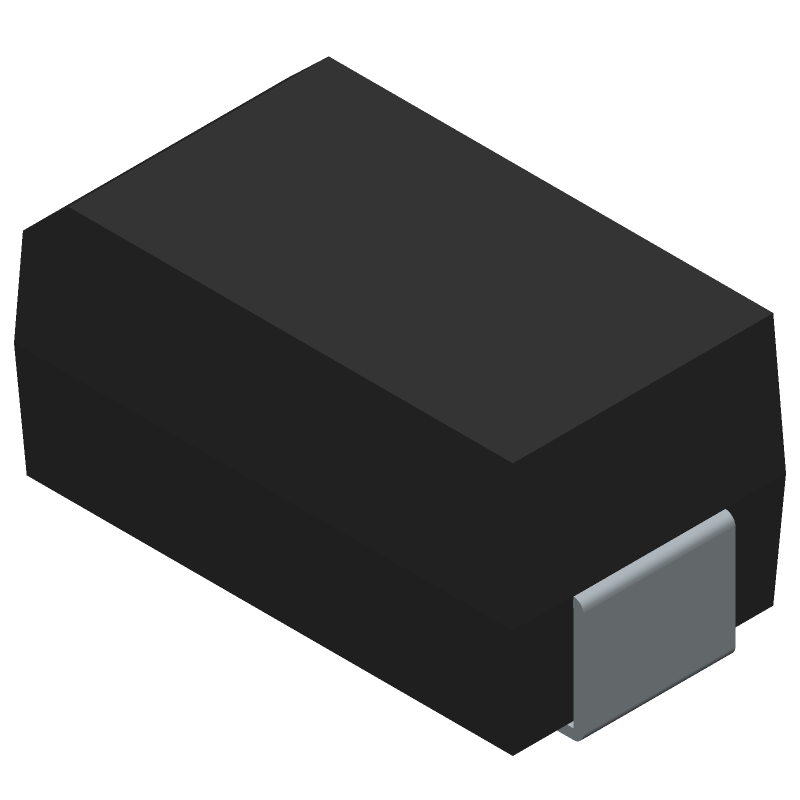

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SS14 Part Data Attributes

Parametric Data
SS14 SPC Multicomp
Buy Now Datasheet
Compare Parts:
SS14 SPC Multicomp Rectifier Diode, Avalanche, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, PLASTIC, SMA, 2 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MULTICOMP PRO
Part Package Code DO-214AC
Package Description PLASTIC, SMA, 2 PIN
Pin Count 2
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer Multicomp Pro
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -65 °C
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Rep Pk Reverse Voltage-Max 40 V
Surface Mount YES
Technology AVALANCHE
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Alternate Parts for SS14

This table gives cross-reference parts and alternative options found for SS14. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SS14, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
B140B-7 Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, PLASTIC, SMB, 2 PIN SS14 vs B140B-7
LS14R3 Taiwan Semiconductor Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, SMA, 2 PIN SS14 vs LS14R3
SSL14F2 Taiwan Semiconductor Check for Price 1A, 40V, SILICON, SIGNAL DIODE, DO-214AC, SMA, 2 PIN SS14 vs SSL14F2
SS14 Microsemi Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, SMA, 2 PIN SS14 vs SS14
SSL14E3G Taiwan Semiconductor Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, SMA, 2 PIN SS14 vs SSL14E3G
SS14-M3/5AT Vishay Semiconductors Check for Price 1A,40V,SM SCHOTTKY RECT SS14 vs SS14-M3/5AT
SS14-LT-T Micro Commercial Components Check for Price Rectifier Diode, SS14 vs SS14-LT-T
SS14-T3-LF Surge Components Inc Check for Price 1A, 40V, SILICON, SIGNAL DIODE, DO-214AC, SMA, 2 PIN SS14 vs SS14-T3-LF
Part Number Manufacturer Composite Price Description Compare
B140-E3/5AT Vishay Intertechnologies $0.0634 Rectifier Diode, Schottky, 1 Phase, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, SMA, 2 PIN SS14 vs B140-E3/5AT
SS14-LT Micro Commercial Components Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SS14 vs SS14-LT
SS14E Micro Commercial Components Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, PLASTIC, SMAE, 2 PIN SS14 vs SS14E
SS14E Promax-Johnton Electronic Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, PLASTIC, SMA, 2 PIN SS14 vs SS14E
SS14G-TP Micro Commercial Components Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN SS14 vs SS14G-TP
B140-7 Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, PLASTIC, SMA, 2 PIN SS14 vs B140-7
SL14A Micro Commercial Components Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, SMA, 2 PIN SS14 vs SL14A
SS14-T3 Surge Components Inc Check for Price 1A, 40V, SILICON, SIGNAL DIODE, DO-214AC, SMA, 2 PIN SS14 vs SS14-T3
B140HB-13 Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, PLASTIC, SMB, 2 PIN SS14 vs B140HB-13
B140AG Axelite Technology Co Ltd Check for Price Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC PACKAGE-2 SS14 vs B140AG

SS14 Related Parts

SS14 Frequently Asked Questions (FAQ)

  • Store in a cool, dry place away from direct sunlight, with a temperature range of 10°C to 30°C (50°F to 86°F) and relative humidity below 60%.

  • While SS14 can operate up to 150°C (302°F), it's not recommended for continuous use above 125°C (257°F) to ensure reliability and prevent degradation.

  • Use proper ESD handling procedures, such as grounding yourself, using an anti-static wrist strap, and storing the device in an anti-static bag or container.

  • Use a soldering iron with a temperature of 250°C (482°F) to 270°C (518°F) and a soldering time of 3-5 seconds to prevent damage.

  • While SS14 is not hermetically sealed, it can operate in humid environments. However, it's recommended to use conformal coating or potting to protect the device from moisture.
