SS13FP Information
SS13FP by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SS13FP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AC9720
|
Newark | 1 A, 30 V Surface Mount Schottky Barrier Rectifiers/ Reel Rohs Compliant: Yes |Onsemi SS13FP RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.0800 / $0.0880 | Buy Now |
|
DISTI #
SS13FPCT-ND
|
DigiKey | DIODE SCHOTTKY 30V 1A SOD123HE Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5623 In Stock |
|
$0.0715 / $0.3500 | Buy Now |
|
DISTI #
SS13FP
|
Avnet Americas | Schottky Diodes & Rectifiers 30V 1A Schottky B arrier Rectifier - Tape and Reel (Alt: SS13FP) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.0736 / $0.0803 | Buy Now |
|
DISTI #
512-SS13FP
|
Mouser Electronics | Schottky Diodes & Rectifiers 30V 1A Schottky B arrier Rectifier RoHS: Compliant | 26736 |
|
$0.0740 / $0.3500 | Buy Now |
|
|
Onlinecomponents.com | Schottky Diodes & Rectifiers 30V 1A Schottky B arrier Rectifier RoHS: Compliant | 0 |
|
$0.0683 / $0.0781 | Buy Now |
|
DISTI #
SS13FP
|
TME | Diode: Schottky rectifying, SOD123F, SMD, 30V, 1A, reel,tape Min Qty: 1 | 0 |
|
$0.0960 / $0.4960 | RFQ |
|
DISTI #
SS13FP
|
Richardson RFPD | RECTIFIER MODULE - SCHOTTKY RoHS: Compliant Min Qty: 9000 | 0 |
|
$0.0700 | Buy Now |
|
DISTI #
SS13FP
|
Avnet Asia | Schottky Diodes & Rectifiers 30V 1A Schottky B arrier Rectifier (Alt: SS13FP) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days | 27000 |
|
$0.0671 / $0.0814 | Buy Now |
|
DISTI #
SS13FP
|
Avnet Silica | Schottky Diodes Rectifiers 30V 1A Schottky B arrier Rectifier (Alt: SS13FP) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 19 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
SS13FP
|
EBV Elektronik | Schottky Diodes Rectifiers 30V 1A Schottky B arrier Rectifier (Alt: SS13FP) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for SS13FP

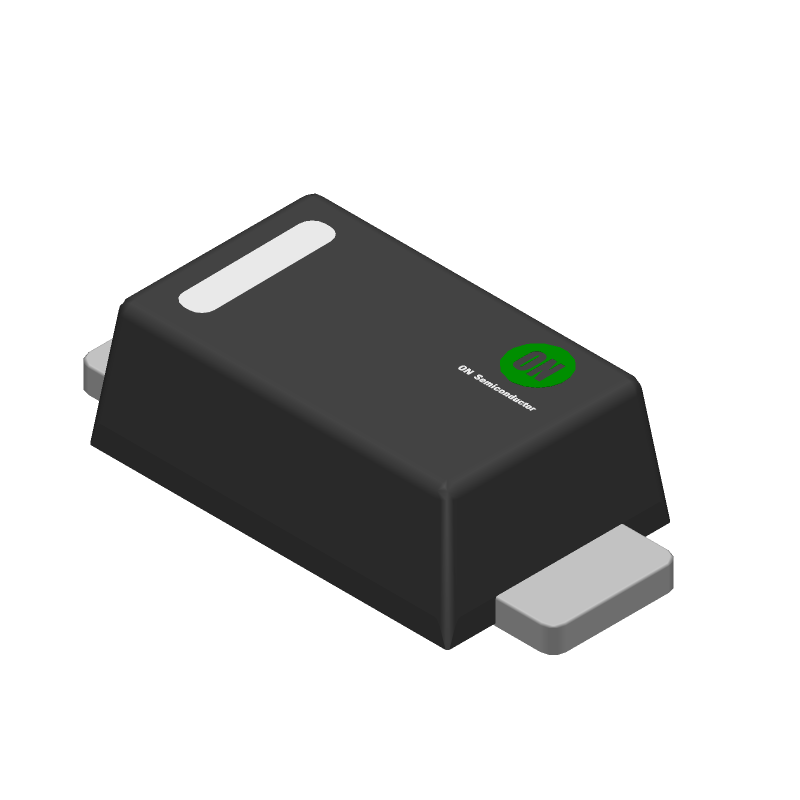

SS13FP CAD Models
SS13FP Part Data Attributes
|
|
SS13FP
onsemi
Buy Now
Datasheet
|
Compare Parts:
SS13FP
onsemi
1.0 A, 30 V, Surface Mount Schottky Barrier Rectifiers, SOD-123 FL, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-123 FL | |
| Manufacturer Package Code | 425AC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | LOW POWER LOSS | |
| Application | EFFICIENCY | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.5 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 400 µA | |
| Reverse Recovery Time-Max | 0.006 µs | |
| Reverse Test Voltage | 30 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
SS13FP Frequently Asked Questions (FAQ)
-
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
-
Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout. Also, consider derating the device's power handling at high temperatures.
-
The maximum allowable voltage on the anode (A) pin is 1.5V above the cathode (K) pin voltage to prevent internal diode conduction.
-
While possible, it's not recommended to use the SS13FP as a switch due to its high voltage drop and limited current handling. Instead, consider using a dedicated switch or a more suitable device for switching applications.
-
Use a TVS (Transient Voltage Suppressor) or a zener diode to clamp overvoltages. For ESD protection, add a series resistor and a capacitor to the input lines, and consider using ESD protection devices.
