Inductors / Fixed Inductors / SRU2011-2R2Y
Datasheets

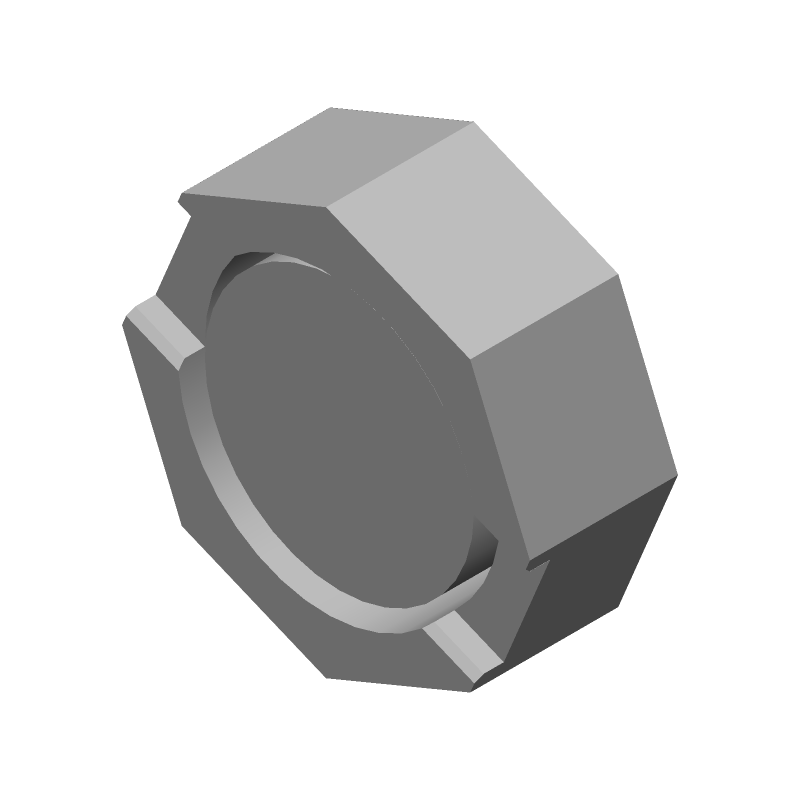

SRU2011-2R2Y by: Bourns Inc

General Purpose Inductor, 2.2uH, 30%, 1 Element, Ferrite-Core, SMD, 1111, ROHS COMPLIANT

Part Details for SRU2011-2R2Y by Bourns Inc

Results Overview of SRU2011-2R2Y by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SRU2011-2R2Y Information

SRU2011-2R2Y by Bourns Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for SRU2011-2R2Y

Part # Distributor Description Stock Price Buy
DISTI # 33M0151
Newark Ind2.8X2.8X1.1Mm,2.2Uh30%1.2A, shdsmd /Tape & Reel - 7" Reel |Bourns SRU2011-2R2Y RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.4970
  • 5,000 $0.4850
  • 10,000 $0.4490
  • 20,000 $0.4180
  • 30,000 $0.3900
  • 50,000 $0.3730
$0.3730 / $0.4970 Buy Now
DISTI # SRU2011-2R2Y-ND
DigiKey FIXED IND 2.2UH 1.2A 165MOHM SMD Min Qty: 1500 Lead time: 16 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,500 $0.4156
$0.4156 Buy Now
DISTI # SRU2011-2R2Y
Avnet Americas Power Inductor (SMD), 2.2 uH, ? 30%, 1.2 A, Shielded, 900 mA, 2.8mm x 2.8mm x 1.1mm - Tape and Reel (Alt: SRU2011-2R2Y) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 1,500 $0.3679
  • 3,000 $0.3660
  • 6,000 $0.3641
  • 9,000 $0.3623
  • 12,000 $0.3604
$0.3604 / $0.3679 Buy Now
Onlinecomponents.com   RoHS: Compliant 0
  • 1,500 $0.4087
  • 3,000 $0.3972
  • 6,000 $0.3811
  • 7,500 $0.3754
  • 10,500 $0.3697
  • 15,000 $0.3642
  • 25,500 $0.3587
$0.3587 / $0.4087 Buy Now
Bristol Electronics   554
RFQ
DISTI # SRU2011-2R2Y
Avnet Abacus Power Inductor SMD 22 uH 30 12 A Shielded 900 mA 28mm x 28mm x 11mm - Tape and Reel (Alt: SRU2011-2R2Y) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 17 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics   RoHS: Compliant 0
  • 1,500 $0.4087
  • 3,000 $0.3972
  • 6,000 $0.3811
  • 7,500 $0.3754
  • 10,500 $0.3697
  • 15,000 $0.3642
  • 25,500 $0.3587
$0.3587 / $0.4087 Buy Now

Part Details for SRU2011-2R2Y

SRU2011-2R2Y Part Data Attributes

Parametric Data
SRU2011-2R2Y Bourns Inc
Buy Now Datasheet
Compare Parts:
SRU2011-2R2Y Bourns Inc General Purpose Inductor, 2.2uH, 30%, 1 Element, Ferrite-Core, SMD, 1111, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Factory Lead Time 16 Weeks
Samacsys Manufacturer Bourns
Case/Size Code 1111
Construction Rectangular
Core Material FERRITE
DC Resistance 0.165 Ω
Inductance-Nom (L) 2.2 µH
Inductor Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
JESD-609 Code e3
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Height 1.1 mm
Package Length 2.8 mm
Package Style SMT
Package Width 2.8 mm
Packing Method TR, Embossed, 7 Inch
Rated Current-Max 1.2 A
Self Resonance Frequency 120 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded YES
Surface Mount YES
Terminal Finish TIN
Terminal Placement DUAL ENDED
Terminal Shape ONE SURFACE
Test Frequency 0.1 MHz
Tolerance 30%
