Inductors / Fixed Inductors / SRR6603-681ML
Datasheets

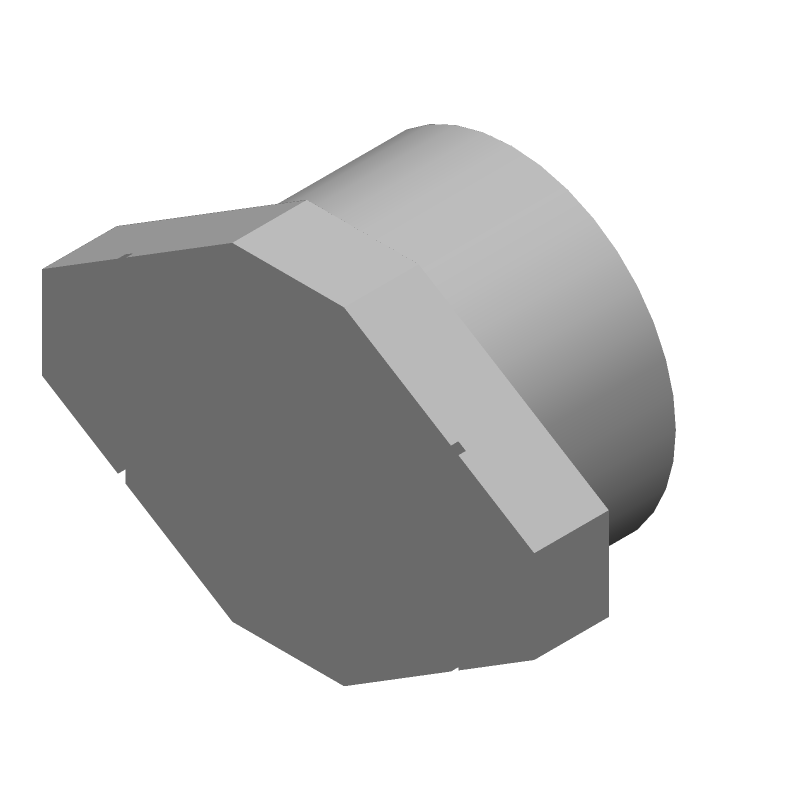

SRR6603-681ML by: Bourns Inc

General Purpose Inductor, 680uH, 20%, 1 Element, Ferrite-Core, SMD, 2617,

Part Details for SRR6603-681ML by Bourns Inc

Results Overview of SRR6603-681ML by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation

SRR6603-681ML Information

SRR6603-681ML by Bourns Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for SRR6603-681ML

Part # Distributor Description Stock Price Buy
DISTI # 06X7961
Newark Surface Mount Power Inductor, Srr6603 Series, 680 H, 20%, Shielded, 2.2 Ohm, 180 Ma Rohs Compliant: Yes |Bourns SRR6603-681ML RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 74
  • 1 $0.7300
  • 10 $0.7220
$0.7220 / $0.7300 Buy Now
DISTI # 61J9156
Newark Surface Mount Power Inductor, Srr6603 Series, 680 H, 20%, Shielded, 2.2 Ohm, 180 Ma Rohs Compliant: Yes |Bourns SRR6603-681ML RoHS: Compliant Min Qty: 600 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.7380
  • 1,000 $0.7100
  • 2,000 $0.6440
  • 4,000 $0.5790
  • 6,000 $0.5580
  • 10,000 $0.5460
$0.5460 / $0.7380 Buy Now
DISTI # SRR6603-681MLCT-ND
DigiKey FIXED IND 680UH 180MA 2.2OHM SMD Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) Temporarily Out of Stock
  • 1 $1.0800
  • 10 $0.8910
  • 100 $0.7324
  • 600 $0.6291
  • 1,200 $0.5933
  • 1,800 $0.5733
  • 3,000 $0.5490
  • 4,200 $0.5336
  • 6,000 $0.5178
  • 15,000 $0.5125
$0.5125 / $1.0800 Buy Now
DISTI # SRR6603-681ML
Avnet Americas Power Inductor (SMD), 680 uH, ? 20%, 180 mA, Shielded, 55 mA, 6.6mm x 4.4mm x 3mm - Tape and Reel (Alt: SRR6603-681ML) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 600 $0.5645
  • 1,200 $0.5021
  • 2,400 $0.4995
  • 3,600 $0.4970
  • 4,800 $0.4944
$0.4944 / $0.5645 Buy Now
DISTI # 652-SRR6603-681ML
Mouser Electronics Power Inductors - SMD 680uH 20% SMD 6603 RoHS: Compliant 843
  • 1 $0.7300
  • 10 $0.7220
  • 600 $0.5820
  • 1,200 $0.5690
  • 2,400 $0.5200
$0.5200 / $0.7300 Buy Now
DISTI # V36:1790_06263002
Arrow Electronics SRR6603-681ML Bourns Inductor Surface Mount Power Shielded Wirewound 680uH 100KHz 40Q-Factor 0.18A 2.2Ohm - Arrow.com RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 16 Weeks Date Code: 2252 Americas - 71400
  • 600 $0.4992
  • 1,200 $0.4938
  • 1,800 $0.4889
  • 2,400 $0.4887
$0.4887 / $0.4992 Buy Now
DISTI # V72:2272_06263002
Arrow Electronics SRR6603-681ML Bourns Inductor Surface Mount Power Shielded Wirewound 680uH 100KHz 40Q-Factor 0.18A 2.2Ohm - Arrow.com RoHS: Compliant Min Qty: 190 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2306 Container: Cut Strips Americas - 230
  • 1 $0.5182
  • 10 $0.5135
  • 25 $0.5089
  • 100 $0.5042
$0.5042 / $0.5182 Buy Now
Onlinecomponents.com Inductor Power - Shielded - Wirewound - 4.8 x 4..8 x 1.8mm - 680 uH - 100KHz - 180mA - 2.2 Ohm. RoHS: Compliant 1200 In Stock
  • 600 $0.6410
  • 1,200 $0.5940
  • 3,000 $0.5540
  • 5,400 $0.5460
  • 7,800 $0.5380
  • 10,200 $0.5290
  • 15,000 $0.5220
  • 25,200 $0.5140
$0.5140 / $0.6410 Buy Now
DISTI # 67021641
Verical SRR6603-681ML Bourns Inductor Surface Mount Power Shielded Wirewound 680uH 100KHz 40Q-Factor 0.18A 2.2Ohm - Arrow.com RoHS: Compliant Min Qty: 600 Package Multiple: 600 Date Code: 2252 Americas - 71400
  • 600 $0.4889
  • 2,400 $0.4887
$0.4887 / $0.4889 Buy Now
DISTI # 69275671
Verical SRR6603-681ML Bourns Inductor Surface Mount Power Shielded Wirewound 680uH 100KHz 40Q-Factor 0.18A 2.2Ohm - Arrow.com RoHS: Compliant Min Qty: 600 Package Multiple: 600 Date Code: 2326 Americas - 1200
  • 600 $0.8333
  • 1,200 $0.7722
  • 3,000 $0.7202
  • 5,400 $0.7098
  • 7,800 $0.6994
$0.6994 / $0.8333 Buy Now
DISTI # 66729903
Verical SRR6603-681ML Bourns Inductor Surface Mount Power Shielded Wirewound 680uH 100KHz 40Q-Factor 0.18A 2.2Ohm - Arrow.com RoHS: Compliant Min Qty: 190 Package Multiple: 1 Date Code: 2306 Americas - 230
  • 190 $0.6279
  • 1,200 $0.6122
$0.6122 / $0.6279 Buy Now
DISTI # SRR6603-681ML
TTI Power Inductors - SMD 680uH 20% SMD 6603 pbFree: Pb-Free Min Qty: 600 Package Multiple: 600 Container: Reel Americas - 0
  • 600 $0.6860
  • 1,200 $0.6720
  • 1,800 $0.6590
  • 2,400 $0.6460
  • 3,600 $0.6330
$0.6330 / $0.6860 Buy Now
DISTI # SRR6603-681ML
Avnet Abacus Power Inductor SMD 680 uH 20 180 mA Shielded 55 mA 66mm x 44mm x 3mm - Tape and Reel (Alt: SRR6603-681ML) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 17 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
LCSC 180mA 680uH 20% 55mA SMD4.4x6.6mm Power Inductors ROHS 50
  • 1 $0.8555
  • 10 $0.8374
  • 30 $0.8238
  • 100 $0.8102
$0.8102 / $0.8555 Buy Now
Master Electronics Inductor Power - Shielded - Wirewound - 4.8 x 4..8 x 1.8mm - 680 uH - 100KHz - 180mA - 2.2 Ohm. RoHS: Compliant 1200 In Stock
  • 600 $0.6410
  • 1,200 $0.5940
  • 3,000 $0.5540
  • 5,400 $0.5460
  • 7,800 $0.5380
  • 10,200 $0.5290
  • 15,000 $0.5220
  • 25,200 $0.5140
$0.5140 / $0.6410 Buy Now

Part Details for SRR6603-681ML

SRR6603-681ML Part Data Attributes

Parametric Data
SRR6603-681ML Bourns Inc
Buy Now Datasheet
Compare Parts:
SRR6603-681ML Bourns Inc General Purpose Inductor, 680uH, 20%, 1 Element, Ferrite-Core, SMD, 2617,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Factory Lead Time 16 Weeks
Samacsys Manufacturer Bourns
Case/Size Code 2617
Construction RECTANGULAR PACKAGE
Core Material Ferrite
DC Resistance 2.2 Ω
Inductance-Nom (L) 680 µH
Inductor Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 3 mm
Package Length 6.6 mm
Package Style SMT
Package Width 4.4 mm
Packing Method TR, Embossed, 7 Inch
Rated Current-Max 0.18 A
Self Resonance Frequency 3 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded YES
Surface Mount YES
Terminal Finish TIN COPPER SILVER
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 0.1 MHz
Tolerance 20%

SRR6603-681ML Related Parts

SRR6603-681ML Frequently Asked Questions (FAQ)

  • A symmetrical layout with a central ground plane and minimal track lengths is recommended to minimize electromagnetic interference (EMI) and ensure optimal performance.

  • Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are clean and free of oxidation.

  • The SRR6603-681ML is rated for operation from -40°C to +125°C, but derating may be necessary for high-frequency applications or high-power dissipation.

  • Yes, the SRR6603-681ML is suitable for high-reliability and safety-critical applications, but additional testing and validation may be required to ensure compliance with specific industry standards or regulations.

  • Use a signal generator and oscilloscope to verify the input signal, and check for proper PCB layout, soldering, and component orientation. Consult the datasheet and application notes for troubleshooting guidelines.
