Inductors / Fixed Inductors / SRR6603-471ML
Datasheets

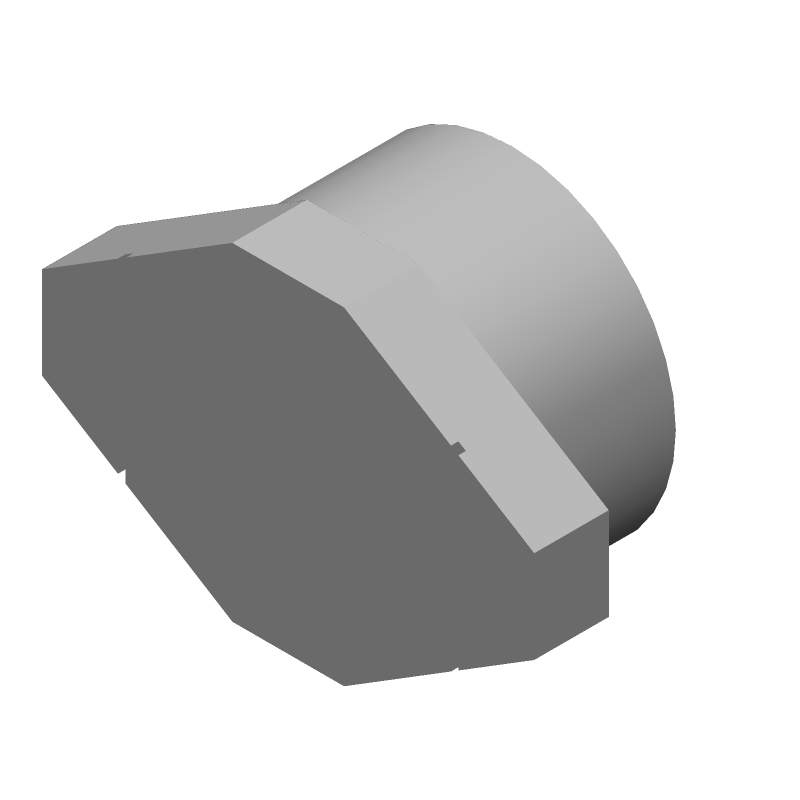

SRR6603-471ML by: Bourns Inc

General Purpose Inductor, 470uH, 20%, 1 Element, Ferrite-Core, SMD, 2617,

Part Details for SRR6603-471ML by Bourns Inc

Results Overview of SRR6603-471ML by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation

SRR6603-471ML Information

SRR6603-471ML by Bourns Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for SRR6603-471ML

Part # Distributor Description Stock Price Buy
DISTI # 06X7957
Newark Surface Mount Power Inductor, Srr6603 Series, 470 H, 20%, Shielded, 1.8 Ohm, 190 Ma Rohs Compliant: Yes |Bourns SRR6603-471ML RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 23
  • 1 $1.2100
  • 10 $0.8920
  • 25 $0.8500
  • 50 $0.8070
  • 100 $0.7650
$0.7650 / $1.2100 Buy Now
DISTI # 61J9153
Newark Surface Mount Power Inductor, Srr6603 Series, 470 H, 20%, Shielded, 1.8 Ohm, 190 Ma Rohs Compliant: Yes |Bourns SRR6603-471ML RoHS: Compliant Min Qty: 600 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.7380
  • 1,000 $0.7100
  • 2,000 $0.6440
  • 4,000 $0.5790
  • 6,000 $0.5580
  • 10,000 $0.5460
$0.5460 / $0.7380 Buy Now
DISTI # 118-SRR6603-471MLCT-ND
DigiKey FIXED IND 470UH 190MA 1.8OHM SMD Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 183
In Stock
  • 1 $1.0800
  • 10 $0.8910
  • 100 $0.7324
  • 600 $0.6291
  • 1,200 $0.5933
  • 1,800 $0.5733
  • 3,000 $0.5490
  • 4,200 $0.5336
  • 6,000 $0.5178
  • 15,000 $0.5125
$0.5125 / $1.0800 Buy Now
DISTI # SRR6603-471ML
Avnet Americas Power Inductor (SMD), 470 uH, ? 20%, 190 mA, Shielded, 60 mA, 6.6mm x 4.4mm x 3mm - Tape and Reel (Alt: SRR6603-471ML) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 600 $0.5419
  • 1,200 $0.4729
  • 2,400 $0.4704
  • 3,600 $0.4680
  • 4,800 $0.4656
$0.4656 / $0.5419 Buy Now
DISTI # 652-SRR6603-471ML
Mouser Electronics Power Inductors - SMD 470uH 20% SMD 6603 RoHS: Compliant 472
  • 1 $1.2100
  • 10 $0.8920
  • 100 $0.7650
  • 600 $0.5820
  • 1,200 $0.5470
  • 2,400 $0.5000
$0.5000 / $1.2100 Buy Now
DISTI # 71279733
RS Ind6.6x4.4x3mm,470uH20%0.19A, shdSMD Min Qty: 600 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk 0
  • 600 $0.8400
  • 6,000 $0.7900
  • 30,000 $0.7500
  • 60,000 $0.7100
$0.7100 / $0.8400 RFQ
Onlinecomponents.com Inductor Power Shielded Wirewound 470uH 20% 100KHz 40Q-Factor Ferrite 190mA 1.8Ohm DCR T/R RoHS: Compliant 0
  • 600 $0.6410
  • 1,200 $0.5940
  • 3,000 $0.5540
  • 5,400 $0.5460
  • 7,800 $0.5380
  • 10,200 $0.5290
  • 15,000 $0.5220
  • 25,200 $0.5140
$0.5140 / $0.6410 Buy Now
Quest Components IND,FERRITE,470UH,+-20% TOL,2617-CASE,LEAD FREE 1560
  • 1 $1.6250
  • 700 $0.6825
  • 1,466 $0.6370
$0.6370 / $1.6250 Buy Now
DISTI # SRR6603-471ML
TTI Power Inductors - SMD 470uH 20% SMD 6603 pbFree: Pb-Free Min Qty: 600 Package Multiple: 600 Container: Reel Americas - 0
  • 600 $0.6860
  • 1,200 $0.6720
  • 1,800 $0.6590
  • 3,000 $0.6460
  • 4,800 $0.6330
$0.6330 / $0.6860 Buy Now
DISTI # SRR6603-471ML
Avnet Abacus Power Inductor SMD 470 uH 20 190 mA Shielded 60 mA 66mm x 44mm x 3mm - Tape and Reel (Alt: SRR6603-471ML) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 17 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics Inductor Power Shielded Wirewound 470uH 20% 100KHz 40Q-Factor Ferrite 190mA 1.8Ohm DCR T/R RoHS: Compliant 0
  • 600 $0.6410
  • 1,200 $0.5940
  • 3,000 $0.5540
  • 5,400 $0.5460
  • 7,800 $0.5380
  • 10,200 $0.5290
  • 15,000 $0.5220
  • 25,200 $0.5140
$0.5140 / $0.6410 Buy Now
Vyrian Inductors 234
RFQ

Part Details for SRR6603-471ML

SRR6603-471ML Part Data Attributes

Parametric Data
SRR6603-471ML Bourns Inc
Buy Now Datasheet
Compare Parts:
SRR6603-471ML Bourns Inc General Purpose Inductor, 470uH, 20%, 1 Element, Ferrite-Core, SMD, 2617,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Factory Lead Time 16 Weeks
Samacsys Manufacturer Bourns
Case/Size Code 2617
Construction RECTANGULAR PACKAGE
Core Material Ferrite
DC Resistance 1.8 Ω
Inductance-Nom (L) 470 µH
Inductor Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 3 mm
Package Length 6.6 mm
Package Style SMT
Package Width 4.4 mm
Packing Method TR, Embossed, 7 Inch
Rated Current-Max 0.19 A
Self Resonance Frequency 4 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded YES
Surface Mount YES
Terminal Finish TIN COPPER SILVER
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 0.1 MHz
Tolerance 20%

SRR6603-471ML Related Parts

SRR6603-471ML Frequently Asked Questions (FAQ)

  • The recommended land pattern for the SRR6603-471ML can be found in the Bourns application note AN-13, which provides guidelines for PCB layout and land pattern design.

  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a thermally conductive interface material to improve heat dissipation.

  • Yes, the SRR6603-471ML is suitable for high-frequency applications up to 1 GHz. However, it is recommended to consult the datasheet and application notes for specific guidance on high-frequency design considerations.

  • The recommended soldering profile for the SRR6603-471ML is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.

  • Yes, the SRR6603-471ML is compatible with lead-free soldering processes, and is RoHS compliant.
