Inductors / Fixed Inductors / SRR1260-102K
Datasheets
SRR1260-102K by: Bourns Inc

General Purpose Inductor, 1000uH, 10%, 1 Element, Ferrite-Core, SMD, 4949, ROHS COMPLIANT

Part Details for SRR1260-102K by Bourns Inc

Results Overview of SRR1260-102K by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Industrial Automation

SRR1260-102K Information

SRR1260-102K by Bourns Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for SRR1260-102K

Part # Distributor Description Stock Price Buy
DISTI # 82AC0051
Newark Ind12.5X12.5X6Mm,1000Uh10%0.68A, shdsmd Rohs Compliant: Yes |Bourns SRR1260-102K RoHS: Compliant Min Qty: 600 Package Multiple: 1 Date Code: 0 Container: Reel 1200
  • 600 $0.5350
  • 1,200 $0.5090
  • 2,400 $0.4920
$0.4920 / $0.5350 Buy Now
DISTI # 57AC3493
Newark Power Inductor, 1Mh, 0.68A, 10%, Inductance:1Mh, Rms Current (Irms):680Ma, Inductor Construction:Shielded, Saturation Current (Isat):600Ma, Product Range:Srr1260 Series, Inductor Case/Package:-, Dc Resistance Max:1.7Ohm Rohs Compliant: Yes |Bourns SRR1260-102K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 673
  • 1 $1.1500
  • 10 $0.9840
  • 25 $0.9350
  • 50 $0.8870
  • 100 $0.8380
$0.8380 / $1.1500 Buy Now
DISTI # 04P2014
Newark Inductor, Shielded, 1Uh, 600Ma, Smd, Inductance:1Mh, Rms Current (Irms):680Ma, Inductor Construction:Shielded, Saturation Current (Isat):600Ma, Product Range:Srr1260 Series, Dc Resistance Max:1.7Ohm, Inductance Tolerance:± 10% Rohs Compliant: Yes |Bourns SRR1260-102K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 600
  • 1 $1.1800
  • 10 $1.0800
  • 25 $1.0500
  • 50 $1.0200
  • 100 $0.9910
$0.9910 / $1.1800 Buy Now
DISTI # 33M0072
Newark Inductor, Shielded, 1Mh, 0.68A, 10%, Inductance:1Mh, Rms Current (Irms):680Ma, Inductor Construction:Shielded, Saturation Current (Isat):600Ma, Product Range:Srr1260 Series, Inductor Case/Package:-, Dc Resistance Max:1.7Ohm Rohs Compliant: Yes |Bourns SRR1260-102K RoHS: Compliant Min Qty: 600 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 600 $0.5350
  • 1,200 $0.5090
  • 2,400 $0.4920
$0.4920 / $0.5350 Buy Now
DISTI # SRR1260-102KCT-ND
DigiKey FIXED IND 1MH 680MA 1.7 OHM SMD Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) 1180
In Stock
  • 1 $1.0100
  • 10 $0.8300
  • 100 $0.6824
  • 600 $0.5861
  • 1,200 $0.5527
  • 1,800 $0.5341
  • 3,000 $0.5115
  • 4,200 $0.4972
  • 6,000 $0.4824
  • 15,000 $0.4738
$0.4738 / $1.0100 Buy Now
DISTI # SRR1260-102K
Avnet Americas Power Inductor (SMD), 1 mH, 680 mA, Shielded, 600 mA, SRR1260 Series - Tape and Reel (Alt: SRR1260-102K) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 16 Weeks, 0 Days Container: Reel 1200
  • 600 $0.4605
  • 1,200 $0.4037
  • 2,400 $0.4017
  • 3,600 $0.3996
  • 4,800 $0.3975
$0.3975 / $0.4605 Buy Now
DISTI # SRR1260-102K
Avnet Americas Power Inductor (SMD), 1 mH, 680 mA, Shielded, 600 mA, SRR1260 Series - Tape and Reel (Alt: SRR1260-102K) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 111 Weeks, 0 Days Container: Reel 0
  • 600 $0.4893
  • 1,200 $0.4232
  • 2,400 $0.4166
  • 3,600 $0.4096
  • 4,800 $0.4029
$0.4029 / $0.4893 Buy Now
DISTI # 652-SRR1260-102K
Mouser Electronics Power Inductors - SMD 1000uH 10% SMD 1260 RoHS: Compliant 1928
  • 1 $1.0100
  • 10 $0.8300
  • 100 $0.6830
  • 600 $0.5870
  • 1,200 $0.5860
$0.5860 / $1.0100 Buy Now
DISTI # V72:2272_06262588
Arrow Electronics Inductor Power Shielded Wirewound 1000uH 10% 1KHz 30Q-Factor Ferrite 0.68A 1.7Ohm DCR T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2232 Container: Cut Strips Americas - 20
  • 20 $0.4459
$0.4459 Buy Now
DISTI # 70277058
RS Inductor, Power, Shielded, Wirewound, 1000uH, 10%, 0.68A Min Qty: 600 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk 600
  • 600 $1.0200
  • 3,000 $0.9400
  • 6,000 $0.9000
  • 60,000 $0.8200
  • 150,000 $0.7700
$0.7700 / $1.0200 Buy Now
Onlinecomponents.com Inductor Power Shielded Wirewound 1mH 10% 1KHz 30Q-Factor Ferrite 680mA 1.7Ohm DCR T/R RoHS: Compliant 1783 In Stock
  • 600 $0.5920
  • 1,200 $0.5490
  • 3,000 $0.5120
  • 5,400 $0.5040
  • 7,800 $0.4969
  • 10,200 $0.4895
  • 15,000 $0.4821
  • 25,200 $0.4749
$0.4749 / $0.5920 Buy Now
DISTI # 87531574
Verical Inductor Power Shielded Wirewound 1000uH 10% 1KHz 30Q-Factor Ferrite 0.68A 1.7Ohm DCR T/R RoHS: Compliant Min Qty: 600 Package Multiple: 600 Date Code: 2232 Americas - 1200
  • 600 $0.7699
  • 1,200 $0.7141
  • 3,000 $0.6659
  • 5,400 $0.6558
  • 7,800 $0.6460
$0.6460 / $0.7699 Buy Now
DISTI # 87531260
Verical Inductor Power Shielded Wirewound 1000uH 10% 1KHz 30Q-Factor Ferrite 0.68A 1.7Ohm DCR T/R RoHS: Compliant Min Qty: 128 Package Multiple: 1 Americas - 583
  • 128 $0.4900
$0.4900 Buy Now
DISTI # 64028210
Verical Inductor Power Shielded Wirewound 1000uH 10% 1KHz 30Q-Factor Ferrite 0.68A 1.7Ohm DCR T/R RoHS: Compliant Min Qty: 14 Package Multiple: 1 Date Code: 2232 Americas - 20
  • 14 $0.4459
$0.4459 Buy Now
Bristol Electronics   2150
RFQ
Quest Components 1 ELEMENT, 1000 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD 25
  • 1 $1.0689
  • 6 $0.8908
  • 18 $0.6413
$0.6413 / $1.0689 Buy Now
DISTI # SRR1260-102K.
TTI Power Inductors - SMD 1K UH 10% RoHS: Compliant pbFree: Pb-Free Min Qty: 10 Package Multiple: 10 Container: Cut Tape Americas - 600
In Stock
  • 10 $0.7190
$0.7190 Buy Now
DISTI # SRR1260-102K
TTI Power Inductors - SMD 1000uH 10% SMD 1260 pbFree: Pb-Free Min Qty: 600 Package Multiple: 600 Container: Reel Americas - 0
  • 600 $0.5770
  • 1,200 $0.5660
  • 1,800 $0.5550
$0.5550 / $0.5770 Buy Now
DISTI # SMC-SRR1260-102K
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 165
RFQ
DISTI # SRR1260-102K
Avnet Abacus Power Inductor SMD 1 mH 680 mA Shielded 600 mA SRR1260 Series - Tape and Reel (Alt: SRR1260-102K) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 19 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics Inductor Power Shielded Wirewound 1mH 10% 1KHz 30Q-Factor Ferrite 680mA 1.7Ohm DCR T/R RoHS: Compliant 1783 In Stock
  • 600 $0.5920
  • 1,200 $0.5490
  • 3,000 $0.5120
  • 5,400 $0.5040
  • 7,800 $0.4969
  • 10,200 $0.4895
  • 15,000 $0.4821
  • 25,200 $0.4749
$0.4749 / $0.5920 Buy Now

Part Details for SRR1260-102K

SRR1260-102K CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

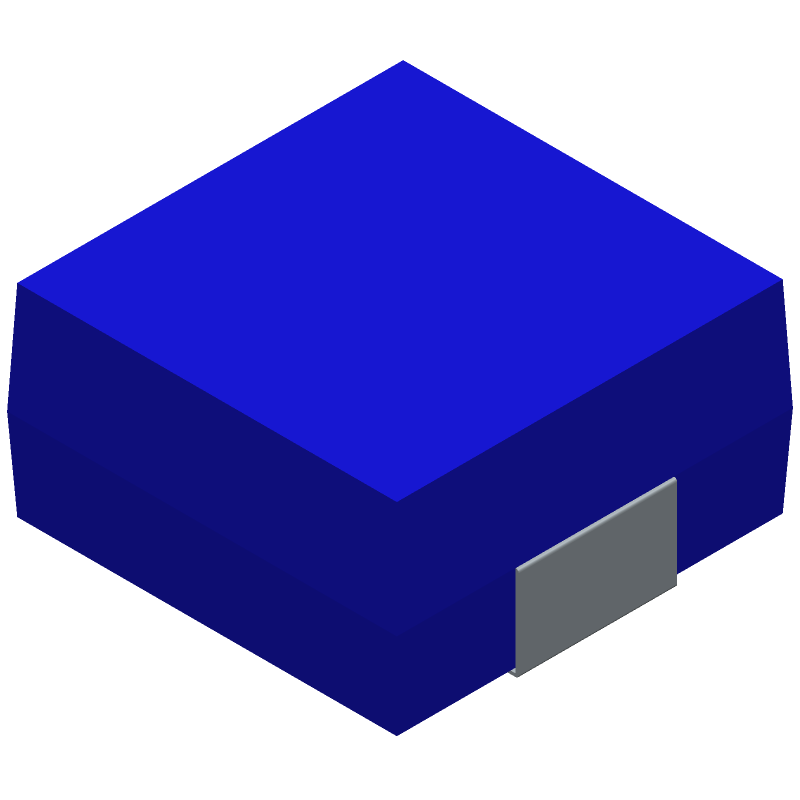

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SRR1260-102K Part Data Attributes

Parametric Data
SRR1260-102K Bourns Inc
Buy Now Datasheet
Compare Parts:
SRR1260-102K Bourns Inc General Purpose Inductor, 1000uH, 10%, 1 Element, Ferrite-Core, SMD, 4949, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8504.50.80.00
Factory Lead Time 16 Weeks
Samacsys Manufacturer Bourns
Case/Size Code 4949
Construction Rectangular
Core Material FERRITE
DC Resistance 1.7 Ω
Inductance-Nom (L) 1000 µH
Inductor Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
JESD-609 Code e3
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Height 6 mm
Package Length 12.5 mm
Package Style SMT
Package Width 12.5 mm
Packing Method TR, EMBOSSED, 13 INCH
Rated Current-Max 0.68 A
Self Resonance Frequency 1.8 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded YES
Surface Mount YES
Terminal Finish MATTE TIN OVER NICKEL
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 0.001 MHz
Tolerance 10%

SRR1260-102K Related Parts

SRR1260-102K Frequently Asked Questions (FAQ)

  • The recommended PCB footprint for the SRR1260-102K is a rectangular pad with dimensions of 12.7 mm x 6.35 mm, with a 1.27 mm diameter hole in the center for the radial lead.

  • To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the risk of overheating the component.

  • The maximum operating temperature range for the SRR1260-102K is -40°C to +125°C, with a derating of 1.5% per °C above 80°C.

  • Yes, the SRR1260-102K is designed to withstand high-vibration environments, with a vibration rating of 10 G peak acceleration, 10-2000 Hz frequency range.

  • Handle the SRR1260-102K with care to avoid mechanical stress, and store them in their original packaging or in a dry, clean environment. Avoid exposing them to moisture, extreme temperatures, or physical shock.
