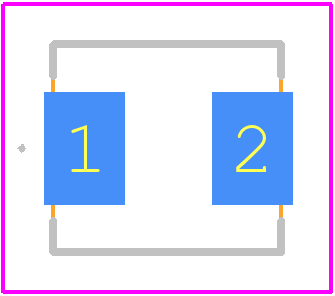

Footprint
-

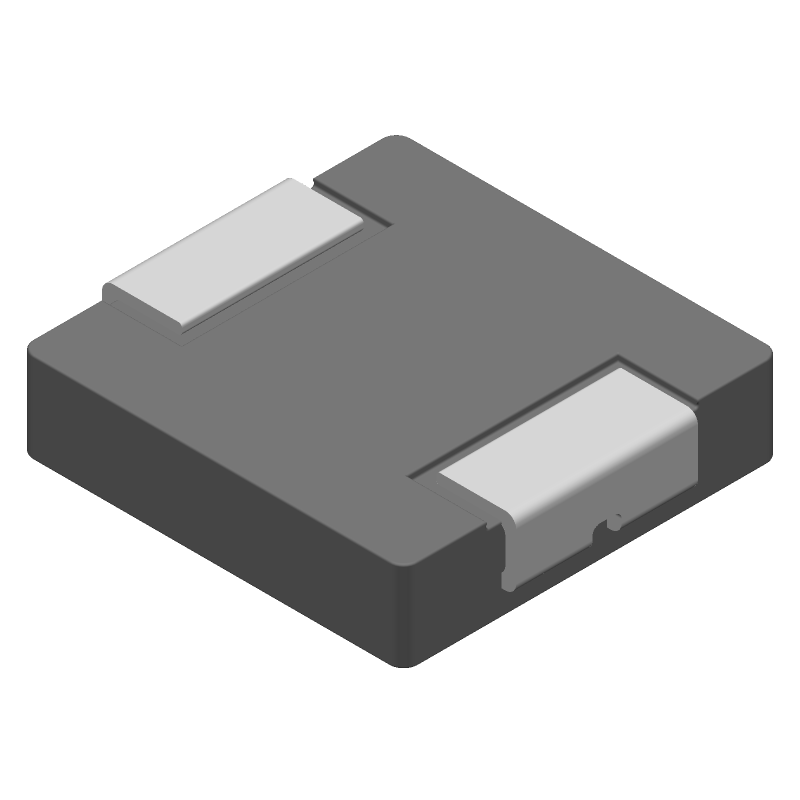

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SRP5015TA-8R2M by Bourns Inc
Results Overview of SRP5015TA-8R2M by Bourns Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
SRP5015TA-8R2M Information
SRP5015TA-8R2M by Bourns Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for SRP5015TA-8R2M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58Y3789
|
Newark | Inductor, 8.2Uh, 2.1A, 20%, Shielded, Inductance:8.2Μh, Rms Current (Irms):2.1A, Inductor Construction:Shielded, Saturation Current (Isat):2.6A, Product Range:Srp5015Ta Series, Power Inductor Case:5.7Mm X 5.2Mm X 1.3Mm, Dc Resistancerohs Compliant: Yes |Bourns SRP5015TA-8R2M RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1940 |
|
$0.6370 / $1.2400 | Buy Now |
|
DISTI #
SRP5015TA-8R2MCT-ND
|
DigiKey | FIXED IND 8.2UH 2.1A 210MOHM SMD Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2842 In Stock |
|
$0.5038 / $1.0700 | Buy Now |
|
DISTI #
SRP5015TA-8R2M
|
Avnet Americas | Power Inductor (SMD), 8.2 uH, ? 20%, 2.1 A, Shielded, 2.6 A, 5.7mm x 5.2mm x 1.3mm - Tape and Reel (Alt: SRP5015TA-8R2M) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.4791 / $0.4897 | Buy Now |
|
DISTI #
652-SRP5015TA-8R2M
|
Mouser Electronics | Power Inductors - SMD 8.2uH 20% RoHS: Compliant | 3460 |
|
$0.5240 / $1.3100 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.5000 / $1.0480 | Buy Now |
|
DISTI #
SRP5015TA-8R2M
|
Avnet Abacus | Power Inductor SMD 82 uH 20 21 A Shielded 26 A 57mm x 52mm x 13mm - Tape and Reel (Alt: SRP5015TA-8R2M) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 25 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | FIXED IND 8.2UH 2.1A 210MOHM SMD | 3500 |
|
RFQ | |
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$0.5000 / $1.0480 | Buy Now |
Part Details for SRP5015TA-8R2M
SRP5015TA-8R2M CAD Models
SRP5015TA-8R2M Part Data Attributes
|
|
SRP5015TA-8R2M
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
SRP5015TA-8R2M
Bourns Inc
General Purpose Inductor, 8.2uH, 20%, 1 Element, Carbonyl Powder-Core, SMD, CHIP,2220
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Case/Size Code | 2220 | |
| Construction | Rectangular | |
| Core Material | CARBONYL POWDER | |
| DC Resistance | 0.21 Ω | |
| Inductance-Nom (L) | 8.2 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 1.3 mm | |
| Package Length | 5.7 mm | |
| Package Style | SMT | |
| Package Width | 5.2 mm | |
| Packing Method | TR, EMBOSSED, 13 INCH | |
| Quality Factor-Min (at L-nom) | 10 | |
| Rated Current-Max | 2.1 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 22 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
