Inductors / Fixed Inductors / SRP2010TMA-R24M
Datasheets
SRP2010TMA-R24M by: Bourns Inc

General Purpose Inductor, 0.24uH, 20%, 1 Element, Powdered Metal Alloy-Core, SMD, 0806, CHIP

Part Details for SRP2010TMA-R24M by Bourns Inc

Results Overview of SRP2010TMA-R24M by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SRP2010TMA-R24M Information

SRP2010TMA-R24M by Bourns Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for SRP2010TMA-R24M

Part # Distributor Description Stock Price Buy
DISTI # 33AK7109
Newark Power Inductor, 0.24Uh, Shielded, 6.5A Rohs Compliant: Yes |Bourns SRP2010TMA-R24M RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1800
  • 1 $0.2700
  • 10 $0.1830
  • 25 $0.1740
  • 50 $0.1650
  • 100 $0.1560
  • 250 $0.1480
  • 500 $0.1400
  • 1,000 $0.1130
$0.1130 / $0.2700 Buy Now
DISTI # 118-SRP2010TMA-R24MCT-ND
DigiKey IND METAL POWDER 0.24UH 6.5A Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 1938
In Stock
  • 1 $0.2500
  • 10 $0.2020
  • 25 $0.1872
  • 50 $0.1766
  • 100 $0.1664
  • 250 $0.1540
  • 500 $0.1451
  • 1,000 $0.1368
  • 2,000 $0.1290
  • 4,000 $0.1217
  • 6,000 $0.1176
  • 10,000 $0.1126
  • 14,000 $0.1094
  • 20,000 $0.1062
  • 50,000 $0.0988
$0.0988 / $0.2500 Buy Now
DISTI # SRP2010TMA-R24M
Avnet Americas Inductor Power Shielded Wirewound 0.24uH 20% 1MHz 15Q-Factor Metal Composite 6.5A T/R - Tape and Reel (Alt: SRP2010TMA-R24M) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.0960
  • 4,000 $0.0948
  • 8,000 $0.0936
  • 12,000 $0.0924
  • 16,000 $0.0912
$0.0912 / $0.0960 Buy Now
DISTI # 652-SRP2010TMA-R24M
Mouser Electronics Power Inductors - SMD Ind,2x1.6x0.8mm,0.24uH+/-20%,6.5A,shd AEC-Q200 RoHS: Compliant 3989
  • 1 $0.3200
  • 10 $0.2580
  • 25 $0.2390
  • 100 $0.1930
  • 250 $0.1870
  • 1,000 $0.1440
  • 2,000 $0.1290
  • 4,000 $0.1230
  • 10,000 $0.1120
$0.1120 / $0.3200 Buy Now
DISTI # V72:2272_26807790
Arrow Electronics Inductor Power Shielded Wirewound 0.24uH 20% 1MHz 15Q-Factor Metal Alloy Powder 6.5A 0.0205Ohm DCR 0806 Automotive AEC-Q200 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2143 Container: Cut Strips Americas - 2000
  • 1 $0.1133
  • 10 $0.1116
  • 25 $0.1099
  • 50 $0.1082
  • 100 $0.1065
  • 250 $0.1047
  • 500 $0.1030
  • 1,000 $0.1013
$0.1013 / $0.1133 Buy Now
Onlinecomponents.com Inductor - SMD - 2x1.6x0.8mm - 0.24uH±20% - 6.5A - Shielded RoHS: Compliant 1990 Partner Stock
  • 1 $0.1357
  • 2,000 $0.1234
  • 4,000 $0.1179
  • 6,000 $0.1161
  • 8,000 $0.1144
  • 26,000 $0.1082
  • 50,000 $0.1039
  • 100,000 $0.1013
$0.1013 / $0.1357 Buy Now
DISTI # 61900927
Verical Inductor Power Shielded Wirewound 0.24uH 20% 1MHz 15Q-Factor Metal Alloy Powder 6.5A 0.0205Ohm DCR 0806 Automotive AEC-Q200 T/R RoHS: Compliant Min Qty: 59 Package Multiple: 1 Date Code: 2143 Americas - 2000
  • 59 $0.1082
  • 100 $0.1065
  • 250 $0.1047
  • 500 $0.1030
  • 1,000 $0.1013
$0.1013 / $0.1082 Buy Now
DISTI # 86273051
Verical Inductor Power Shielded Wirewound 0.24uH 20% 1MHz 15Q-Factor Metal Alloy Powder 6.5A 0.0205Ohm DCR 0806 Automotive AEC-Q200 T/R RoHS: Compliant Min Qty: 703 Package Multiple: 1 Americas - 1990
  • 703 $0.0890
$0.0890 Buy Now
DISTI # SRP2010TMA-R24M
IBS Electronics INDUCTOR POWER SHIELDED WIREWOUND 0.24UH 20% 1MHZ 15Q-FACTOR METAL COMPOSITE 6.5A T/R Min Qty: 1500 Package Multiple: 1 1990
  • 1,500 $0.0887
$0.0887 Buy Now
DISTI # SRP2010TMA-R24M
Avnet Abacus Inductor Power Shielded Wirewound 024uH 20 1MHz 15QFactor Metal Composite 65A TR - Tape and Reel (Alt: SRP2010TMA-R24M) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics Inductor - SMD - 2x1.6x0.8mm - 0.24uH±20% - 6.5A - Shielded RoHS: Compliant 1990 Partner Stock
  • 1 $0.1357
  • 2,000 $0.1234
  • 4,000 $0.1179
  • 6,000 $0.1161
  • 8,000 $0.1144
  • 26,000 $0.1082
  • 50,000 $0.1039
  • 100,000 $0.1013
$0.1013 / $0.1357 Buy Now

Part Details for SRP2010TMA-R24M

SRP2010TMA-R24M CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

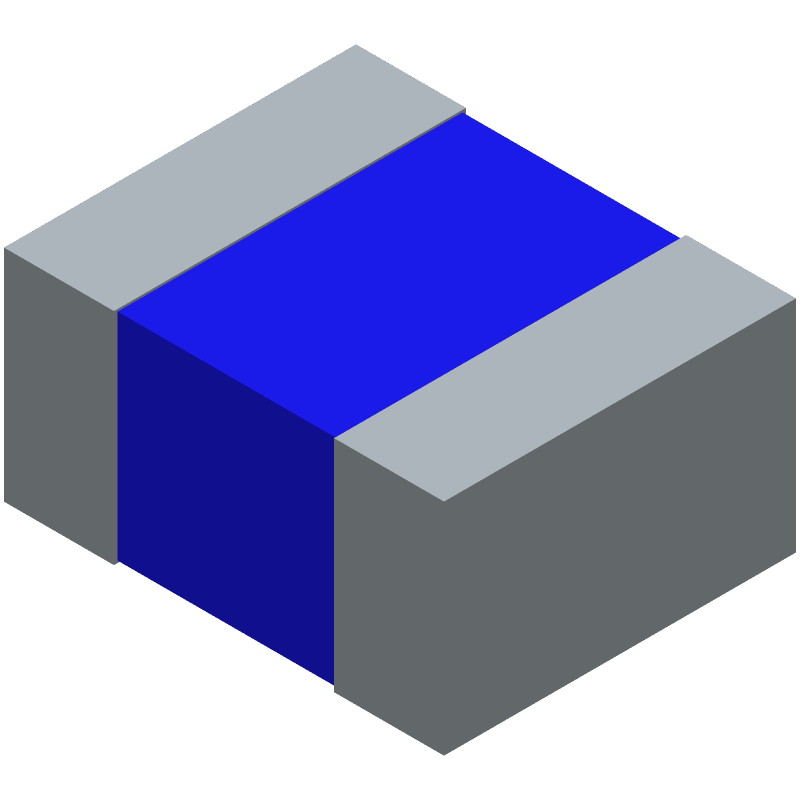

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SRP2010TMA-R24M Part Data Attributes

Parametric Data
SRP2010TMA-R24M Bourns Inc
Buy Now Datasheet
Compare Parts:
SRP2010TMA-R24M Bourns Inc General Purpose Inductor, 0.24uH, 20%, 1 Element, Powdered Metal Alloy-Core, SMD, 0806, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 14 Weeks
Samacsys Manufacturer Bourns
Case/Size Code 0806
Construction Rectangular
Core Material POWDERED METAL ALLOY
DC Resistance 0.0205 Ω
Inductance-Nom (L) 0.24 µH
Inductor Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
JESD-609 Code e3
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Height 0.8 mm
Package Length 2 mm
Package Style SMT
Package Width 1.6 mm
Packing Method TR, 7 Inch
Rated Current-Max 6.5 A
Reference Standard AEC-Q200
Self Resonance Frequency 130 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded YES
Surface Mount YES
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 1 MHz
Tolerance 20%
