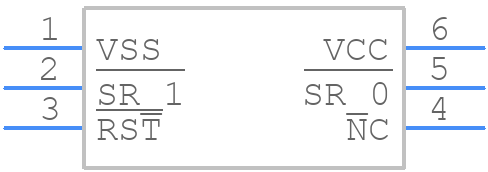

Part Symbol
-
Footprint
-

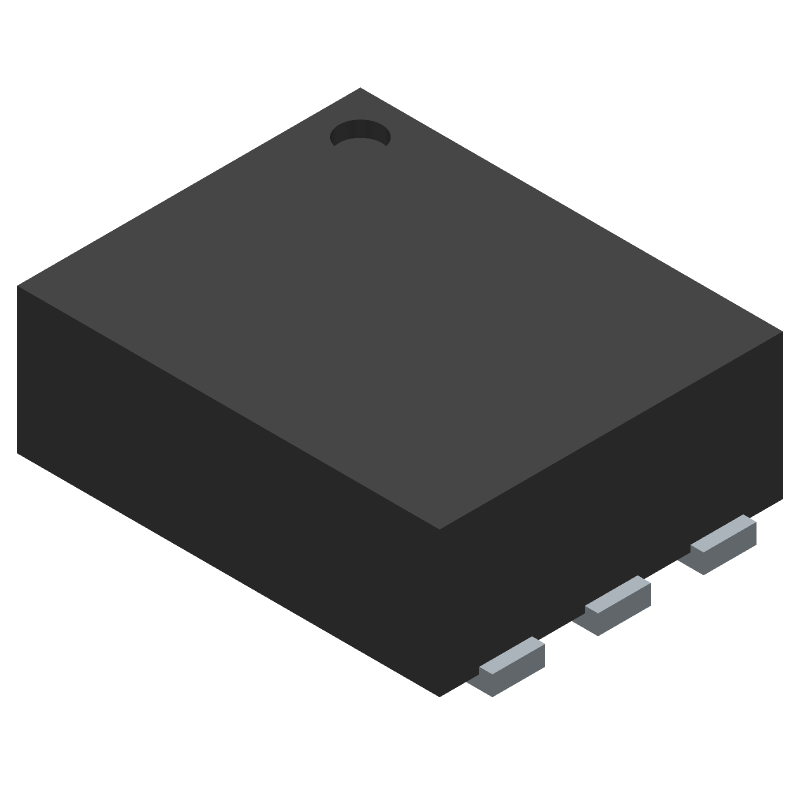

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SR2UABU by STMicroelectronics
Results Overview of SR2UABU by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SR2UABU Information
SR2UABU by STMicroelectronics is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for SR2UABU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-14629-1-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL 6UDFN Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3000 In Stock |
|
$0.4059 / $0.9200 | Buy Now |
|
DISTI #
SR2UABU
|
Avnet Americas | Supervisor, Active-Low, Open-Drain Reset, 1.65V-5.5Vin, UDFN-6 - Tape and Reel (Alt: SR2UABU) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.3634 / $0.3865 | Buy Now |
|
DISTI #
511-SR2UABU
|
Mouser Electronics | Supervisory Circuits 6 pin Smart Reset RoHS: Compliant | 3314 |
|
$0.4190 / $0.9200 | Buy Now |
|
DISTI #
E02:0323_07858508
|
Arrow Electronics | Processor Supervisor 1 Active Low/Open Drain 6-Pin UDFN T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks Date Code: 2438 | Europe - 3000 |
|
$0.8108 / $0.8481 | Buy Now |
|
|
STMicroelectronics | 6 pin Smart Reset RoHS: Compliant Min Qty: 1 | 1914 |
|
$0.4600 / $0.9000 | Buy Now |
|
DISTI #
87776578
|
Verical | Processor Supervisor 1 Active Low/Open Drain 6-Pin UDFN T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2438 | Americas - 3000 |
|
$0.8154 / $0.8529 | Buy Now |
|
DISTI #
SMC-SR2UABU
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: 18112022 | 42000 |
|
RFQ | |
|
DISTI #
SR2UABU
|
Avnet Silica | Supervisor ActiveLow OpenDrain Reset 165V55Vin UDFN6 (Alt: SR2UABU) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days | Silica - 18000 |
|
Buy Now | |
|
DISTI #
SR2UABU
|
EBV Elektronik | Supervisor ActiveLow OpenDrain Reset 165V55Vin UDFN6 (Alt: SR2UABU) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 25 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for SR2UABU
SR2UABU CAD Models
SR2UABU Part Data Attributes
|
|
SR2UABU
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SR2UABU
STMicroelectronics
6 pin Smart Reset
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | UDFN-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-N6 | |
| Length | 1.6 mm | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC6,.06,16 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 0.6 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 1.3 mm |
