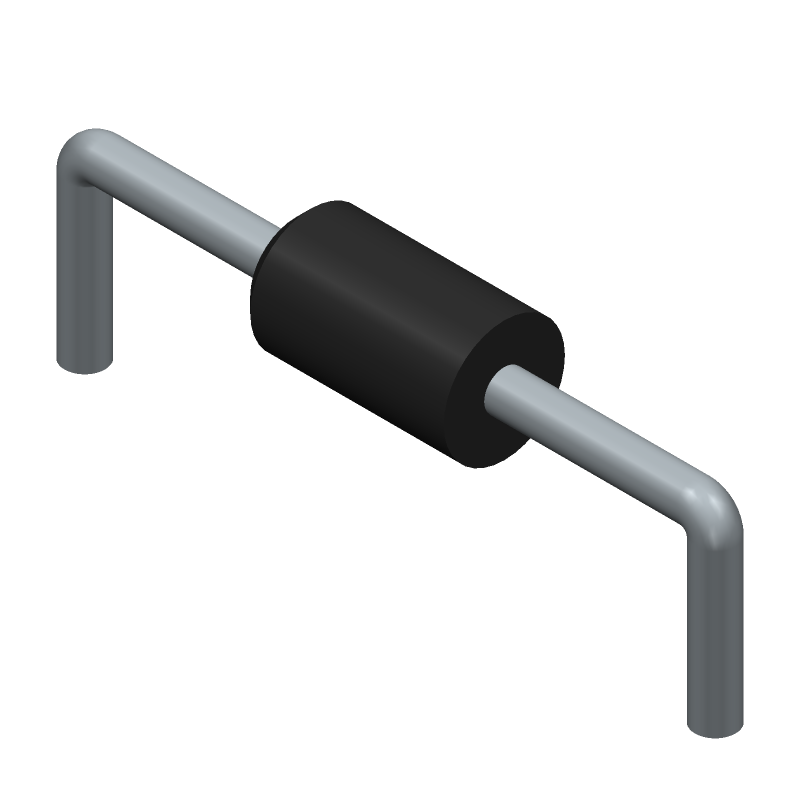

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SR2010-TP by Micro Commercial Components
Results Overview of SR2010-TP by Micro Commercial Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SR2010-TP Information
SR2010-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SR2010-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SR2010-TPCT-ND
|
DigiKey | DIODE SCHOTTKY 100V 2A DO41 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
5231 In Stock |
|
$0.0500 / $0.3000 | Buy Now |
|
DISTI #
833-SR2010-TP
|
Mouser Electronics | Schottky Diodes & Rectifiers 2.0A 100V RoHS: Compliant | 5200 |
|
$0.0500 / $0.3000 | Buy Now |
|
DISTI #
SR2010-TP
|
IBS Electronics | SR2010-TP by MCC is a Schottky barrier rectifier with 100V reverse voltage, 2A forward current, and DO-41 package. Ideal for efficient power conversion and low forward voltage drop applications. Min Qty: 5000 Package Multiple: 1 | 0 |
|
$0.0612 / $0.0647 | Buy Now |
|
|
LCSC | 100V 850mV2A 2A DO-41 Schottky Diodes ROHS | 4910 |
|
$0.0378 / $0.0683 | Buy Now |
|
|
Vyrian | Diodes | 3031 |
|
RFQ |
Part Details for SR2010-TP
SR2010-TP CAD Models
SR2010-TP Part Data Attributes
|
|
SR2010-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SR2010-TP
Micro Commercial Components
Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | DO-41 | |
| Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | MCC | |
| Additional Feature | REVERSE ENERGY TESTED | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.85 V | |
| JEDEC-95 Code | DO-41 | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 50 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Output Current-Max | 2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 10 µA | |
| Surface Mount | NO | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for SR2010-TP
This table gives cross-reference parts and alternative options found for SR2010-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SR2010-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SR2010-AP-HF | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-41, | SR2010-TP vs SR2010-AP-HF |
| SB2010-BP | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2 | SR2010-TP vs SB2010-BP |
| SB2010 | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, PLASTIC, DO-15, 2 PIN | SR2010-TP vs SB2010 |
SR2010-TP Frequently Asked Questions (FAQ)
-
Store the SR2010-TP in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
-
Handle the SR2010-TP by the body, avoid touching the leads or pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge.
-
The maximum power rating for the SR2010-TP is 1W, and it's essential to ensure the device operates within this rating to prevent overheating and damage.
-
While the SR2010-TP is suitable for high-frequency applications, it's essential to consider the device's self-resonant frequency (SRF) and ensure the operating frequency is below the SRF to prevent oscillations and ensure stability.
-
Use a soldering iron with a temperature range of 200°C to 250°C, and ensure the soldering time is less than 3 seconds to prevent overheating and damage to the device.
