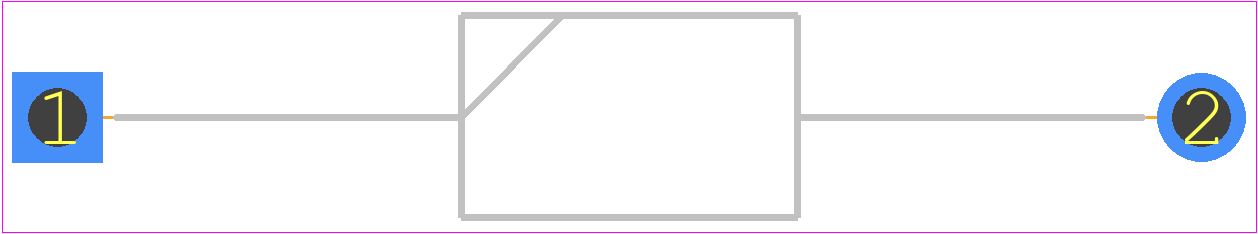

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SR10100L-TP by Micro Commercial Components
Results Overview of SR10100L-TP by Micro Commercial Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SR10100L-TP Information
SR10100L-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SR10100L-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-SR10100L-TP-ND
|
DigiKey | DIODE SCHOTTKY 100V 10A DO201AD Min Qty: 1200 Lead time: 16 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.2901 | Buy Now |
|
DISTI #
833-SR10100L-TP
|
Mouser Electronics | Schottky Diodes & Rectifiers RoHS: Compliant | 1088 |
|
$0.2410 / $0.6300 | Buy Now |
Part Details for SR10100L-TP
SR10100L-TP CAD Models
SR10100L-TP Part Data Attributes
|
|
SR10100L-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
SR10100L-TP
Micro Commercial Components
Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 100V V(RRM), Silicon, DO-201AD,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | not_compliant | |
| Samacsys Description | Schottky Barrier Rectifiers | |
| Samacsys Manufacturer | MCC | |
| Samacsys Modified On | 2024-05-17 16:34:44 | |
| Total Weight | 1140.807 | |
| Category CO2 Kg | 8.8 | |
| CO2 | 10039.101600000002 | |
| Compliance Temperature Grade | Military: -55C to +150C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| EU RoHS Exemptions | 7(a) | |
| Candidate List Date | 2025-01-21 | |
| SVHC Over MCV | 7439-92-1 | |
| CAS Accounted for Wt | 70 | |
| CA Prop 65 Presence | YES | |
| CA Prop 65 CAS Numbers | 7439-92-1 | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.40 | |
| Application | GENERAL PURPOSE | |
| Breakdown Voltage-Min | 100 V | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.75 V | |
| JEDEC-95 Code | DO-201AD | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 150 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 10 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 200 µA | |
| Reverse Test Voltage | 100 V | |
| Surface Mount | NO | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for SR10100L-TP
This table gives cross-reference parts and alternative options found for SR10100L-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SR10100L-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBRF10100G | Galaxy Microelectronics | Check for Price | Rectifier Diode, | SR10100L-TP vs MBRF10100G |
| SB10100F | Formosa Microsemi Co Ltd | Check for Price | Rectifier Diode, | SR10100L-TP vs SB10100F |
