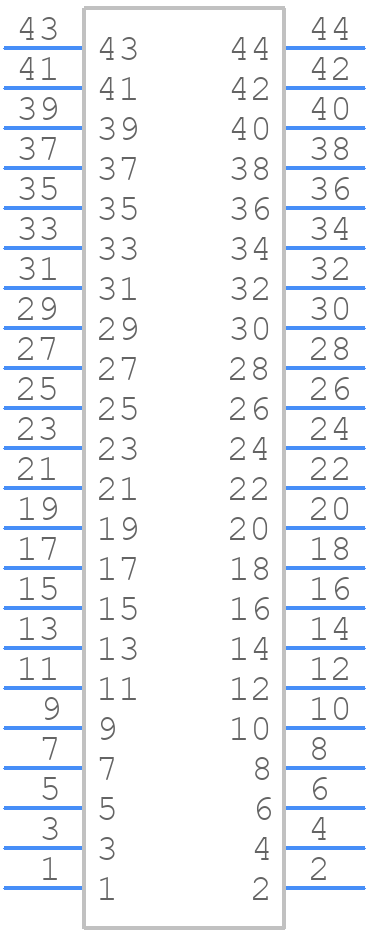

Part Symbol
-

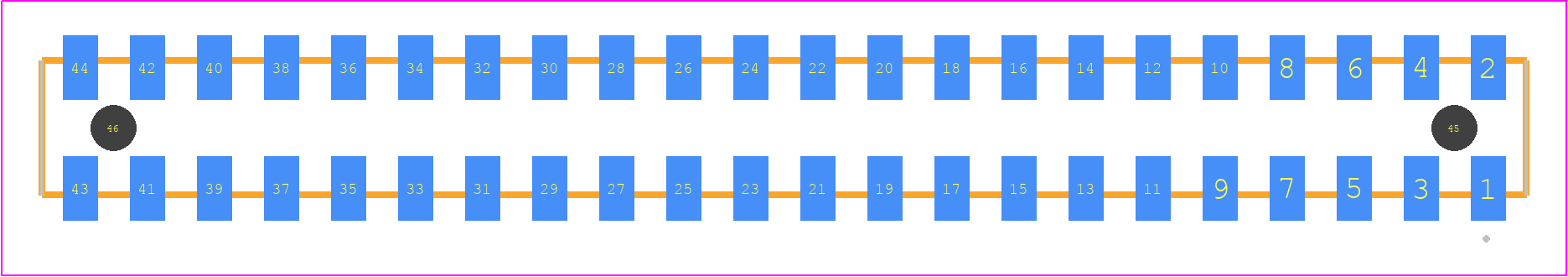

Footprint
-

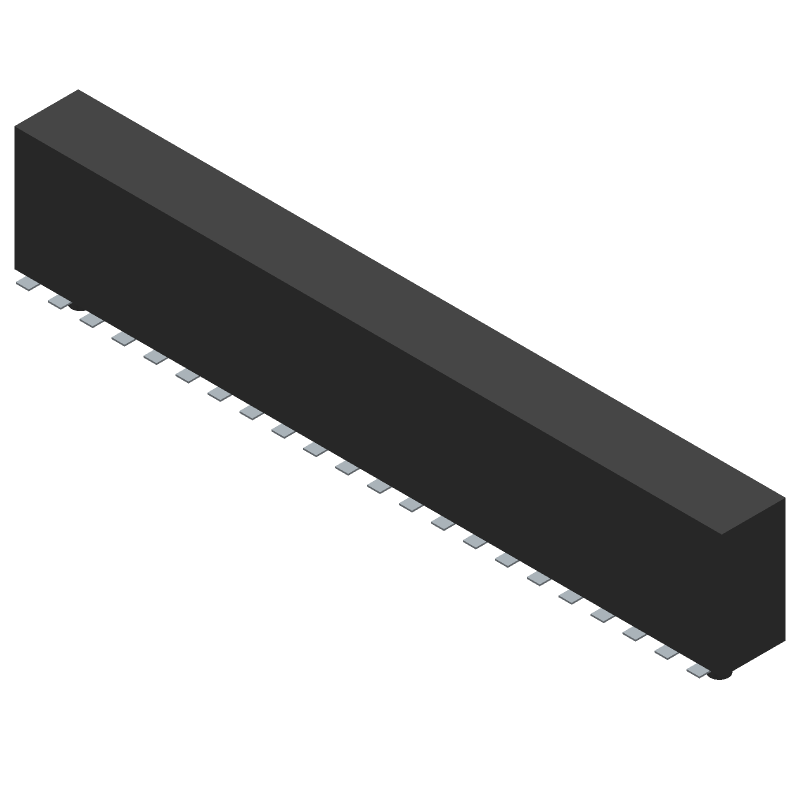

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SQW-122-01-L-D-VS-A-K-TR by Samtec Inc
Results Overview of SQW-122-01-L-D-VS-A-K-TR by Samtec Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SQW-122-01-L-D-VS-A-K-TR Information
SQW-122-01-L-D-VS-A-K-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LD09P24A4GV00LF | Amphenol Communications Solutions | D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness | |
| DB5W5P543M40LF | Amphenol Communications Solutions | D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Without Accessory, Back: Metal Brackets. | |
| DCV8W8P543M30LF | Amphenol Communications Solutions | D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Metal Brackets. |
Price & Stock for SQW-122-01-L-D-VS-A-K-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81P1121
|
Newark | Cost Effective Rugged Pcb Sockets |Samtec SQW-122-01-L-D-VS-A-K-TR RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
SQW-122-01-L-D-VS-A-K-TR-ND
|
DigiKey | CONN RCPT 44POS 0.079 GOLD SMD Min Qty: 275 Lead time: 6 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$4.9800 | Buy Now |
|
DISTI #
SQW-122-01-L-D-VS-
|
Avnet Americas | - Tape and Reel (Alt: SQW-122-01-L-D-VS-) RoHS: Compliant Min Qty: 275 Package Multiple: 275 Lead time: 2 Weeks, 6 Days Container: Reel | 0 |
|
$1.8240 / $4.3525 | Buy Now |
|
DISTI #
200-SQW12201LDVSAKTR
|
Mouser Electronics | Headers & Wire Housings Cost Effective Rugged PCB Sockets | 0 |
|
$2.8200 / $6.3200 | Order Now |
|
|
Onlinecomponents.com | Headers & Wire Housings Cost Effective Rugged PCB Sockets, 2.00mm pitch RoHS: Compliant | 0 |
|
$1.9500 / $6.9800 | Buy Now |
|
DISTI #
5cd91d32cd7c1c4c3875d1b7
|
Samtec | Cost Effective Rugged PCB Sockets, 2.00mm pitch RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 4 Days Container: Tape & Reel | 0 |
|
$1.9000 / $6.3200 | Buy Now |
|
DISTI #
000000000001347419
|
Sager | Headers & Wire Housings Cost Effective Rugged PCB Sockets, 2.00mm pitch Min Qty: 1 | 0 |
|
$3.9300 / $6.3200 | Buy Now |
|
|
Master Electronics | Headers & Wire Housings Cost Effective Rugged PCB Sockets, 2.00mm pitch RoHS: Compliant | 0 |
|
$1.9500 / $6.9800 | Buy Now |
Part Details for SQW-122-01-L-D-VS-A-K-TR
SQW-122-01-L-D-VS-A-K-TR CAD Models
SQW-122-01-L-D-VS-A-K-TR Part Data Attributes
|
|
SQW-122-01-L-D-VS-A-K-TR
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
SQW-122-01-L-D-VS-A-K-TR
Samtec Inc
Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 2 Weeks, 6 Days | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | TIGER BUY CONTACT | |
| Board Mounting Option | PEG | |
| Body Breadth | 0.157 inch | |
| Body Depth | 0.3 inch | |
| Body Length | 1.744 inch | |
| Body/Shell Style | SOCKET | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD (10) | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | FEMALE | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Durability | 100 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.078 inch | |
| Mating Contact Row Spacing | 0.078 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 1.91 mm | |
| Plating Thickness | 10u inch | |
| Rated Current (Signal) | 3.8 A | |
| Reference Standard | UL | |
| Terminal Pitch | 2 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 44 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for SQW-122-01-L-D-VS-A-K-TR
This table gives cross-reference parts and alternative options found for SQW-122-01-L-D-VS-A-K-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SQW-122-01-L-D-VS-A-K-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SQW-122-01-S-D | Samtec Inc | $6.6927 | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, | SQW-122-01-L-D-VS-A-K-TR vs SQW-122-01-S-D |
| SQW-122-01-FM-D-VS-K-TR | Samtec Inc | Check for Price | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, | SQW-122-01-L-D-VS-A-K-TR vs SQW-122-01-FM-D-VS-K-TR |
| SQW-122-01-S-D-VS-A-P-TR | Samtec Inc | Check for Price | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, | SQW-122-01-L-D-VS-A-K-TR vs SQW-122-01-S-D-VS-A-P-TR |
| SQW-122-01-SM-D-VS-A | Samtec Inc | Check for Price | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, | SQW-122-01-L-D-VS-A-K-TR vs SQW-122-01-SM-D-VS-A |
| SQW-122-01-S-D-VS | Samtec Inc | Check for Price | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, | SQW-122-01-L-D-VS-A-K-TR vs SQW-122-01-S-D-VS |
| SQW-122-01-S-D-VS-A-TR | Samtec Inc | Check for Price | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, | SQW-122-01-L-D-VS-A-K-TR vs SQW-122-01-S-D-VS-A-TR |
| SQW-122-01-F-D-VS-A-TR | Samtec Inc | Check for Price | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, | SQW-122-01-L-D-VS-A-K-TR vs SQW-122-01-F-D-VS-A-TR |
| SQW-122-01-LM-D-VS-A-P-TR | Samtec Inc | Check for Price | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, | SQW-122-01-L-D-VS-A-K-TR vs SQW-122-01-LM-D-VS-A-P-TR |
| SQW-122-01-F-D-VS-K-TR | Samtec Inc | Check for Price | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, | SQW-122-01-L-D-VS-A-K-TR vs SQW-122-01-F-D-VS-K-TR |
| SQW-122-01-L-D-VS-P-TR | Samtec Inc | Check for Price | Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, | SQW-122-01-L-D-VS-A-K-TR vs SQW-122-01-L-D-VS-P-TR |
SQW-122-01-L-D-VS-A-K-TR Frequently Asked Questions (FAQ)
-
The recommended torque for the screw locks on SQW-122-01-L-D-VS-A-K-TR is 0.5-1.5 N·m (0.37-1.06 lbf·in).
-
Yes, the SQW-122-01-L-D-VS-A-K-TR is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
-
Yes, the SQW-122-01-L-D-VS-A-K-TR is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F).
-
The SQW-122-01-L-D-VS-A-K-TR has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
-
Yes, the SQW-122-01-L-D-VS-A-K-TR is designed to operate in harsh environments, with an operating temperature range of -55°C to 125°C (-65°F to 257°F) and a humidity rating of 95% RH at 40°C (104°F).
