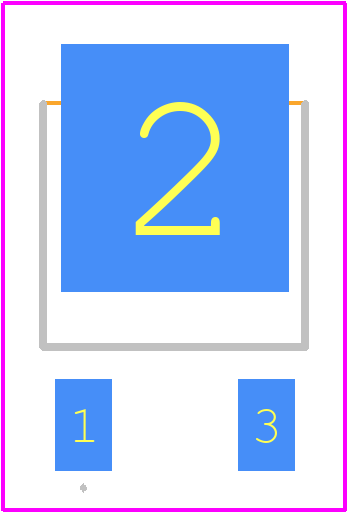

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SQD97N06-6M3L_GE3 by Vishay Intertechnologies
Results Overview of SQD97N06-6M3L_GE3 by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Medical Imaging
Robotics and Drones
SQD97N06-6M3L_GE3 Information
SQD97N06-6M3L_GE3 by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SQD97N06-6M3L_GE3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SQD97N06-6M3L_GE3
|
Avnet Americas | - Tape and Reel (Alt: SQD97N06-6M3L_GE3) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
$0.6548 / $0.6704 | Buy Now |
|
DISTI #
78-SQD97N06-6M3L_GE3
|
Mouser Electronics | MOSFETs 60V 97A 136W AEC-Q101 Qualified RoHS: Compliant | 71100 |
|
$0.6960 / $1.9200 | Buy Now |
|
DISTI #
E02:0323_08469315
|
Arrow Electronics | Trans MOSFET N-CH 60V 97A 3-Pin(2+Tab) DPAK Automotive AEC-Q101 Min Qty: 2000 Package Multiple: 2000 Lead time: 27 Weeks | Europe - 2000 |
|
$0.6883 / $0.7023 | Buy Now |
|
DISTI #
SQD97N06-6M3L_GE3
|
IBS Electronics | N-CHANNEL 60-V (D-S) 175C MOSFET Min Qty: 2000 Package Multiple: 1 | 0 |
|
$0.8385 / $0.8580 | Buy Now |
|
DISTI #
SMC-SQD97N06-6M3L_GE3
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 1500 |
|
RFQ | |
|
DISTI #
SQD97N06-6M3L_GE3
|
EBV Elektronik | (Alt: SQD97N06-6M3L_GE3) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 19 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Transistors | 15716 |
|
RFQ |
Part Details for SQD97N06-6M3L_GE3
SQD97N06-6M3L_GE3 CAD Models
SQD97N06-6M3L_GE3 Part Data Attributes
|
|
SQD97N06-6M3L_GE3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SQD97N06-6M3L_GE3
Vishay Intertechnologies
Power Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Vishay | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | MATTE TIN | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
SQD97N06-6M3L_GE3 Frequently Asked Questions (FAQ)
-
The thermal resistance of the SQD97N06-6M3L_GE3 is typically around 2.5°C/W, but it can vary depending on the specific application and cooling conditions.
-
Yes, the SQD97N06-6M3L_GE3 is a high-reliability device that meets the requirements of AEC-Q101, making it suitable for use in automotive and other high-reliability applications.
-
The SQD97N06-6M3L_GE3 is a power MOSFET, and as such, it is not designed for high-frequency operation. However, it can be used in switching applications up to around 100 kHz.
-
Yes, the SQD97N06-6M3L_GE3 is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
-
The recommended gate drive voltage for the SQD97N06-6M3L_GE3 is between 4.5V and 10V, with a typical value of 5V.
