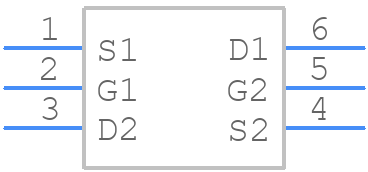

Part Symbol
-
Footprint
-

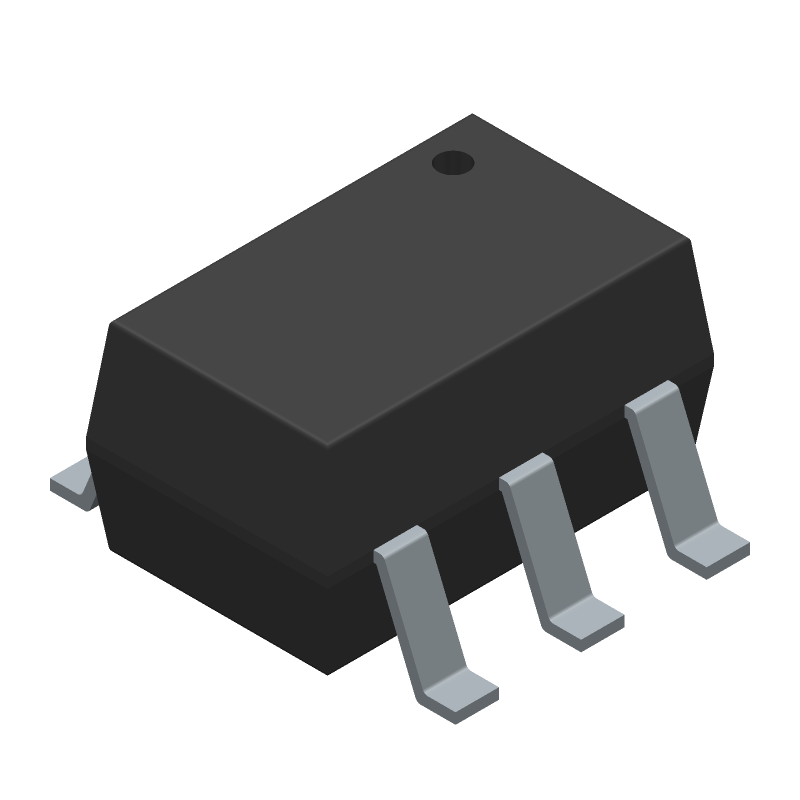

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SQ1563AEH-T1_GE3 by Vishay Intertechnologies
Results Overview of SQ1563AEH-T1_GE3 by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
SQ1563AEH-T1_GE3 Information
SQ1563AEH-T1_GE3 by Vishay Intertechnologies is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SQ1563AEH-T1_GE3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20AC4086
|
Newark | N- And P-Channel 20-V (D-S) 175C Mos |Vishay SQ1563AEH-T1_GE3 RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1630 / $0.2130 | Buy Now |
|
DISTI #
SQ1563AEH-T1_GE3
|
Avnet Americas | Trans MOSFET N/P-CH 20V/20V 0.85A/0.85A 6-Pin SC-70 T/R - Tape and Reel (Alt: SQ1563AEH-T1_GE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.1349 / $0.1434 | Buy Now |
|
DISTI #
78-SQ1563AEH-T1_GE3
|
Mouser Electronics | MOSFETs N Ch 20Vds 8Vgs AEC-Q101 Qualified RoHS: Compliant | 346487 |
|
$0.1500 / $0.3900 | Buy Now |
|
|
Quest Components | SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 0.85A I(D), 20V, 2-ELEMENT, N-CHANNEL AND P-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET | 2400 |
|
$0.1350 / $0.9000 | Buy Now |
|
DISTI #
SQ1563AEH-T1_GE3
|
EBV Elektronik | Trans MOSFET NPCH 20V20V 085A085A 6Pin SC70 TR (Alt: SQ1563AEH-T1_GE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for SQ1563AEH-T1_GE3
SQ1563AEH-T1_GE3 CAD Models
SQ1563AEH-T1_GE3 Part Data Attributes
|
|
SQ1563AEH-T1_GE3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SQ1563AEH-T1_GE3
Vishay Intertechnologies
Small Signal Field-Effect Transistor, 0.85A I(D), 20V, 2-Element, N-Channel and P-Channel, Silicon, Metal-oxide Semiconductor FET, SC-70, 6 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SC-70, SOT-363, 6 PIN | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 20 V | |
| Drain Current-Max (ID) | 0.8 A | |
| Drain-source On Resistance-Max | 0.28 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 12 pF | |
| JESD-30 Code | R-PDSO-G6 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 1.5 W | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Element Material | SILICON |
