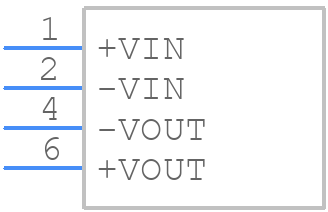

Part Symbol
-

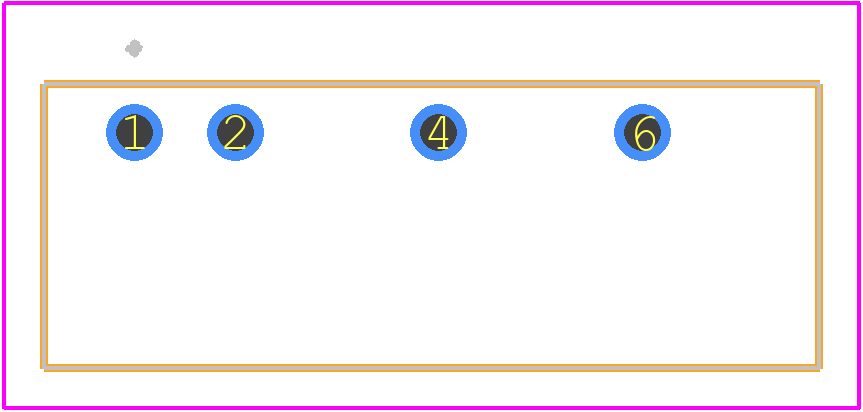

Footprint
-

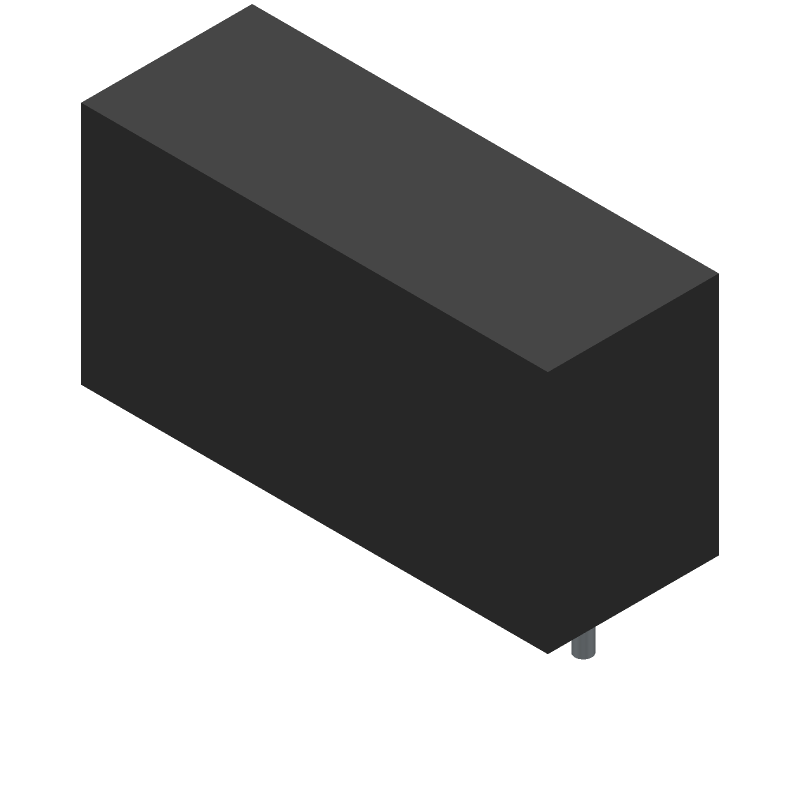

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SPR01O-05 by Mean Well
Results Overview of SPR01O-05 by Mean Well
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SPR01O-05 Information
SPR01O-05 by Mean Well is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Part Details for SPR01O-05
SPR01O-05 CAD Models
SPR01O-05 Part Data Attributes
|
|
SPR01O-05
Mean Well
Buy Now
Datasheet
|
Compare Parts:
SPR01O-05
Mean Well
Analog Circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MEAN WELL ENTERPRISES CO LTD | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Mean Well | |
| Additional Feature | SEATED HEIGHT NOM | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, EAC | |
| Efficiency (Main Output) | 62% | |
| Input Voltage-Max | 52.8 V | |
| Input Voltage-Min | 43.2 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | R-PSIP-T4 | |
| Length | 19.6 mm | |
| Line Regulation-Max | 1% | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Current-Max | 0.2 A | |
| Output Voltage-Max | 5.15 V | |
| Output Voltage-Min | 4.85 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SIP | |
| Package Equivalence Code | SIP4/7,.1 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Protections | OVER LOAD, SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.03535 Vrms | |
| Seated Height-Max | 10.14 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 7.1 mm |
