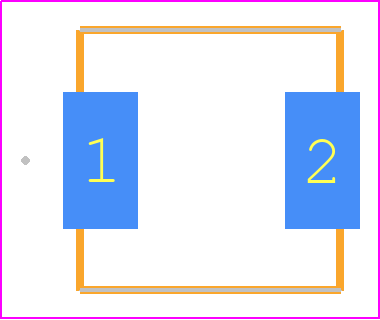

Footprint
-

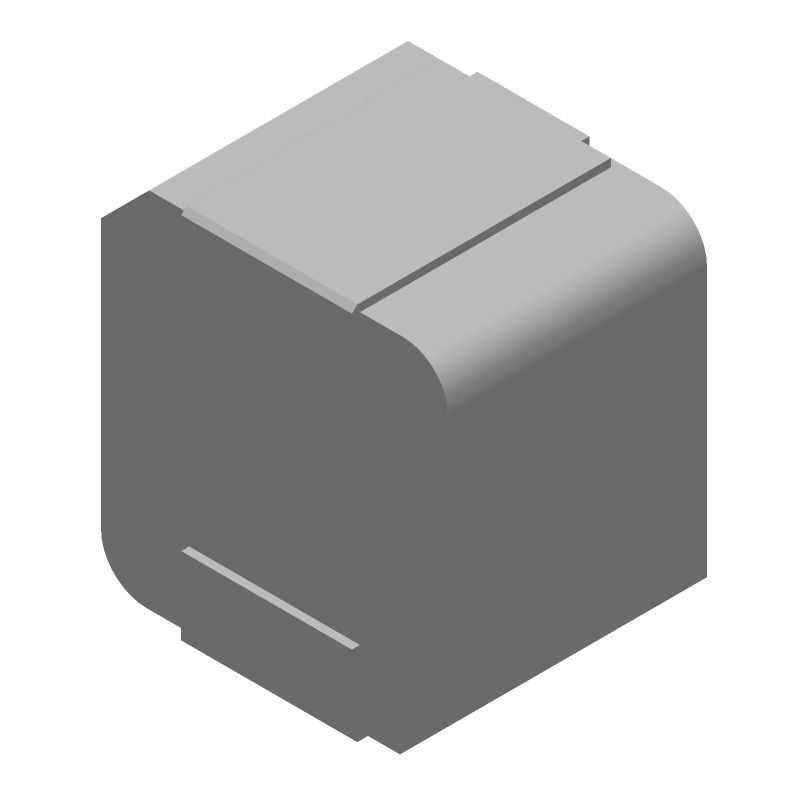

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SPM6550T-2R2M-HZ by TDK Corporation
Results Overview of SPM6550T-2R2M-HZ by TDK Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
SPM6550T-2R2M-HZ Information
SPM6550T-2R2M-HZ by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| DFE2016CKA-2R2M=P2 | Murata Manufacturing Co Ltd | Fixed IND 2.2uH 1400mA NONAUTO | |
| DFE32CAH2R2MR0L | Murata Manufacturing Co Ltd | Fixed IND 2.2uH 4000mA POWRTRN | |
| DFE322520F-2R2M=P2 | Murata Manufacturing Co Ltd | Fixed IND 2.2uH 4400mA NONAUTO |
Price & Stock for SPM6550T-2R2M-HZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH5234
|
Newark | Inductor, Aec-Q200, 2.2Uh, Shld, 14.2A, Inductance:2.2Μh, Rms Current (Irms):14.2A, Inductor Construction:Shielded, Saturation Current (Isat):8.3A, Product Range:Spm-Hz Series, Power Inductor Case:7.1Mm X 6.5Mm X 5Mm, Dc Resistance Rohs Compliant: Yes |Tdk SPM6550T-2R2M-HZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 647 |
|
$0.9930 / $1.9300 | Buy Now |
|
DISTI #
445-180118-1-ND
|
DigiKey | FIXED IND 2.2UH 14.2A 10.67 MOHM Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
853 In Stock |
|
$0.7963 / $1.6400 | Buy Now |
|
DISTI #
SPM6550T-2R2M-HZ
|
Avnet Americas | Ind Power Shielded Wirewound 2.2uH ?20% 100kHz Metal 8.3A T/R - Tape and Reel (Alt: SPM6550T-2R2M-HZ) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.7071 / $0.8167 | Buy Now |
|
DISTI #
810-SPM6550T-2R2M-HZ
|
Mouser Electronics | Power Inductors - SMD 2.2uH 20% 9.7mOhms Pwr Indctr AEC-Q200 RoHS: Compliant | 1339 |
|
$0.7970 / $1.3700 | Buy Now |
|
DISTI #
V72:2272_21355823
|
Arrow Electronics | Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Metal 14.2A 0.0107Ohm DCR Automotive AEC-Q200 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 1829 Container: Cut Strips | Americas - 670 |
|
$0.4360 / $0.8193 | Buy Now |
|
DISTI #
29415697
|
Verical | Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Metal 14.2A 0.0107Ohm DCR Automotive AEC-Q200 T/R RoHS: Compliant Min Qty: 8 Package Multiple: 1 Date Code: 1829 | Americas - 670 |
|
$0.8244 / $0.8944 | Buy Now |
|
DISTI #
SPM6550T-2R2M-HZ
|
Avnet Abacus | Ind Power Shielded Wirewound 22uH 20 100kHz Metal 83A TR (Alt: SPM6550T-2R2M-HZ) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 33 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for SPM6550T-2R2M-HZ
SPM6550T-2R2M-HZ CAD Models
SPM6550T-2R2M-HZ Part Data Attributes
|
|
SPM6550T-2R2M-HZ
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
SPM6550T-2R2M-HZ
TDK Corporation
General Purpose Inductor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 2826 | |
| Construction | Rectangular | |
| Core Material | Metal | |
| DC Resistance | 0.0107 Ω | |
| Inductance-Nom (L) | 2.2 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 5 mm | |
| Package Length | 7.1 mm | |
| Package Style | SMT | |
| Package Width | 6.5 mm | |
| Packing Method | TR, Embossed Plastic, 13 Inch | |
| Rated Current-Max | 14.2 A | |
| Reference Standard | AEC-Q200 | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
