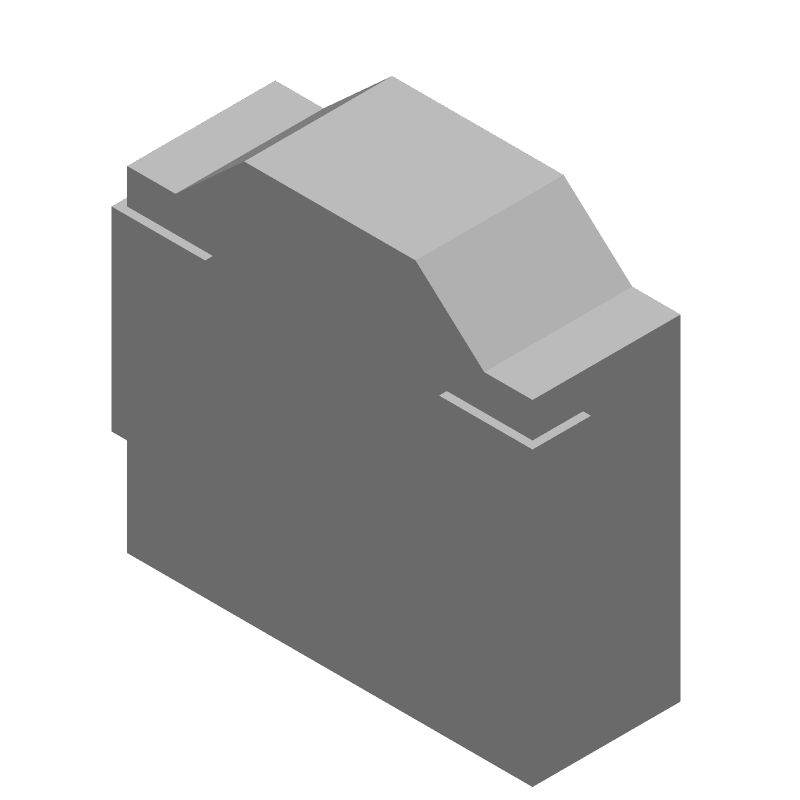

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SPM5020T-2R2M-LR by TDK Corporation
Results Overview of SPM5020T-2R2M-LR by TDK Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Internet of Things (IoT)
Environmental Monitoring
Smart Cities
Transportation and Logistics
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Consumer Electronics
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
SPM5020T-2R2M-LR Information
SPM5020T-2R2M-LR by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for SPM5020T-2R2M-LR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-174497-1-ND
|
DigiKey | FIXED IND 2.2UH 4.6A 40.7MOHM SM Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
4 In Stock |
|
$0.5877 / $1.2500 | Buy Now |
|
DISTI #
SPM5020T-2R2M-LR
|
Avnet Americas | Power Inductor (SMD), 2.2 uH, ? 20%, 4.6 A, Shielded, 7 A, 5.4mm x 5.1mm x 2mm - Tape and Reel (Alt: SPM5020T-2R2M-LR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.5219 / $0.5784 | Buy Now |
|
DISTI #
810-SPM5020T2R2MLR
|
Mouser Electronics | Power Inductors - SMD 5.4mm x 5.1mm, -40 to +125 degC, 4.6A, 2.2?H, 40.7mohm RoHS: Compliant | 689 |
|
$0.6060 / $1.2500 | Buy Now |
|
DISTI #
30608988
|
Verical | Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Metal 4.6A 0.0407Ohm DCR T/R RoHS: Compliant Min Qty: 161 Package Multiple: 1 | Americas - 2718 |
|
$0.6290 / $1.2000 | Buy Now |
|
DISTI #
SPM5020T-2R2M-LR
|
Avnet Abacus | Power Inductor SMD 22 uH 20 46 A Shielded 7 A 54mm x 51mm x 2mm (Alt: SPM5020T-2R2M-LR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 27 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
SPM5020T-2R2M-LR
|
Chip One Stop | SMD Inductor RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2718 |
|
$0.3930 / $1.2000 | Buy Now |
Part Details for SPM5020T-2R2M-LR
SPM5020T-2R2M-LR CAD Models
SPM5020T-2R2M-LR Part Data Attributes
|
|
SPM5020T-2R2M-LR
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
SPM5020T-2R2M-LR
TDK Corporation
General Purpose Inductor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 2120 | |
| Construction | Rectangular | |
| Core Material | Metal | |
| DC Resistance | 0.0407 Ω | |
| Inductance-Nom (L) | 2.2 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 2 mm | |
| Package Length | 5.4 mm | |
| Package Style | SMT | |
| Package Width | 5.1 mm | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Rated Current-Max | 4.6 A | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | L BEND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
SPM5020T-2R2M-LR Frequently Asked Questions (FAQ)
-
The recommended land pattern for the SPM5020T-2R2M-LR can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
-
Handle the SPM5020T-2R2M-LR by the edges or the body, avoiding touching the pins or the capacitive area to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap or mat, and ensure the assembly area is ESD-safe.
-
The maximum allowable voltage derating for the SPM5020T-2R2M-LR is typically 80% of the rated voltage. However, it is recommended to consult the datasheet or contact TDK Corporation for specific derating guidelines for your application.
-
The SPM5020T-2R2M-LR is rated for operation up to 125°C. However, it is essential to consider the temperature coefficient of the capacitor and the potential for capacitance change or other performance degradation at high temperatures. Consult the datasheet or contact TDK Corporation for guidance on using the SPM5020T-2R2M-LR in high-temperature environments.
-
Store the SPM5020T-2R2M-LR in its original packaging or in a dry, cool place away from direct sunlight and moisture. Avoid exposing the capacitor to extreme temperatures, humidity, or physical stress, which can affect its performance and shelf life.
