SPD08-080-RB-TR Information
SPD08-080-RB-TR by 3M Interconnect is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for SPD08-080-RB-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65T7020
|
Newark | Card Edge Conn, Dual Side, 80Pos, Smd, Card Edge Connector Type:Dual Side, Card Thickness:1.57Mm, No. Of Contacts:80 Contacts, Connector Mounting:Surface Mount, Connector Body Orientation:Straight, Contact Termination Type:Solder Rohs Compliant: Yes |3M SPD08-080-RB-TR RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$8.9800 / $10.0300 | Buy Now |
|
DISTI #
3M10603CT-ND
|
DigiKey | CONN EDGE DUAL FMALE 80POS 0.031 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$6.6261 / $11.4900 | Buy Now |
|
DISTI #
7000107376
|
Avnet Americas | Conn Card Edge SKT 80 POS 0.8mm Solder ST SMD T/R - Tape and Reel (Alt: 7000107376) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 12 Weeks, 6 Days Container: Reel | 0 |
|
$6.8255 / $7.3942 | Buy Now |
|
DISTI #
517-SPD08-080-RB-TR
|
Mouser Electronics | Standard Card Edge Connectors 80P CARD EDGE CONN NO LATCH HI SPEED AU | 541 |
|
$6.4600 / $11.4900 | Buy Now |
|
DISTI #
MMM7000107376
|
Heilind Electronics | 7000107376 XF003815545 SPD08/80/.76umAu/T&R | Americas - 0 in Stock |
|
$7.9551 / $8.0794 | Buy Now |
Part Details for SPD08-080-RB-TR
SPD08-080-RB-TR CAD Models
SPD08-080-RB-TR Part Data Attributes
|
|
SPD08-080-RB-TR
3M Interconnect
Buy Now
Datasheet
|
Compare Parts:
SPD08-080-RB-TR
3M Interconnect

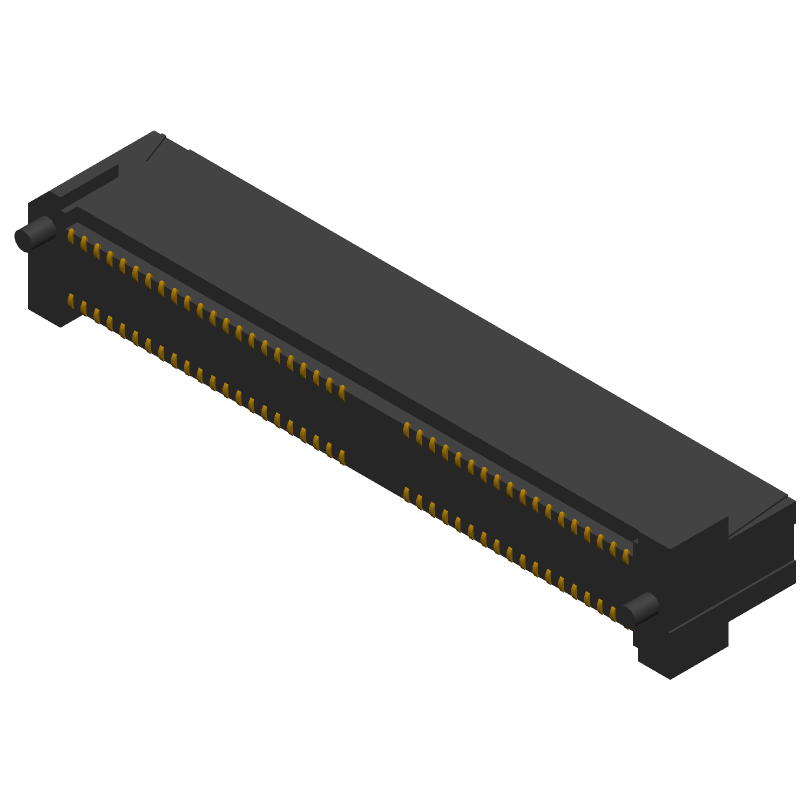

Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | 3M ELECTRONIC PRODUCTS DIVISION | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 12 Weeks, 6 Days | |
| Samacsys Manufacturer | 3M | |
| Additional Feature | 3M | |
| Body Breadth | 0.276 inch | |
| Body Depth | 0.315 inch | |
| Body Length | 1.567 inch | |
| Connector Type | CARD EDGE CONNECTOR | |
| Contact Finish Mating | GOLD (30) | |
| Contact Gender | FEMALE | |
| Contact Material | COPPER ALLOY | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| Contact Style | BELLOWED TYPE | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | BLACK | |
| Insulator Material | GLASS FILLED LIQUID CRYSTAL POLYMER | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.031 inch | |
| Mating Contact Row Spacing | 0.03 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 3.4036 mm | |
| Plating Thickness | 30u inch | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Terminal Pitch | 0.8 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 80 | |
| UL Flammability Code | 94V-0 |
