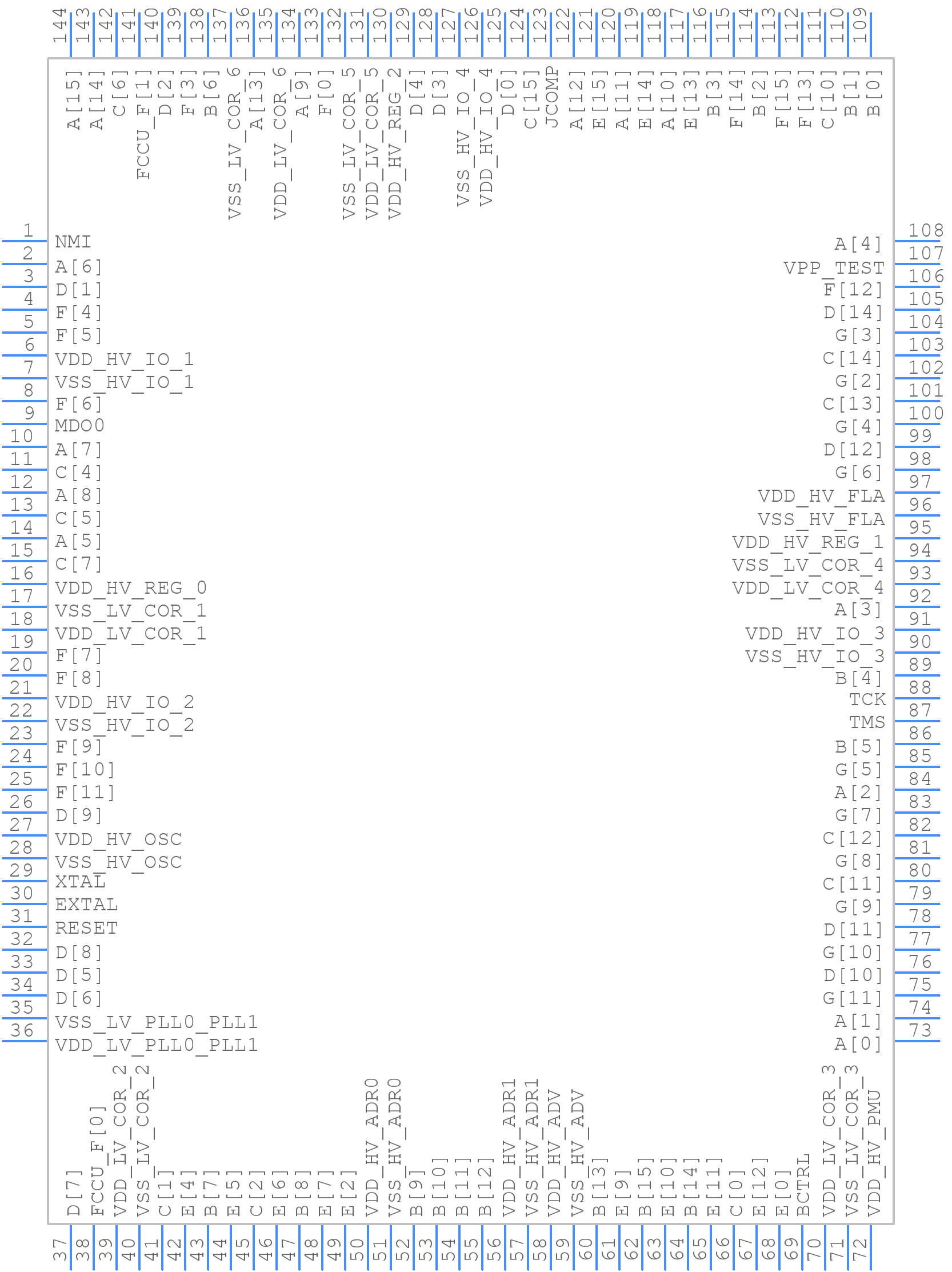

Part Symbol
-
Footprint
-

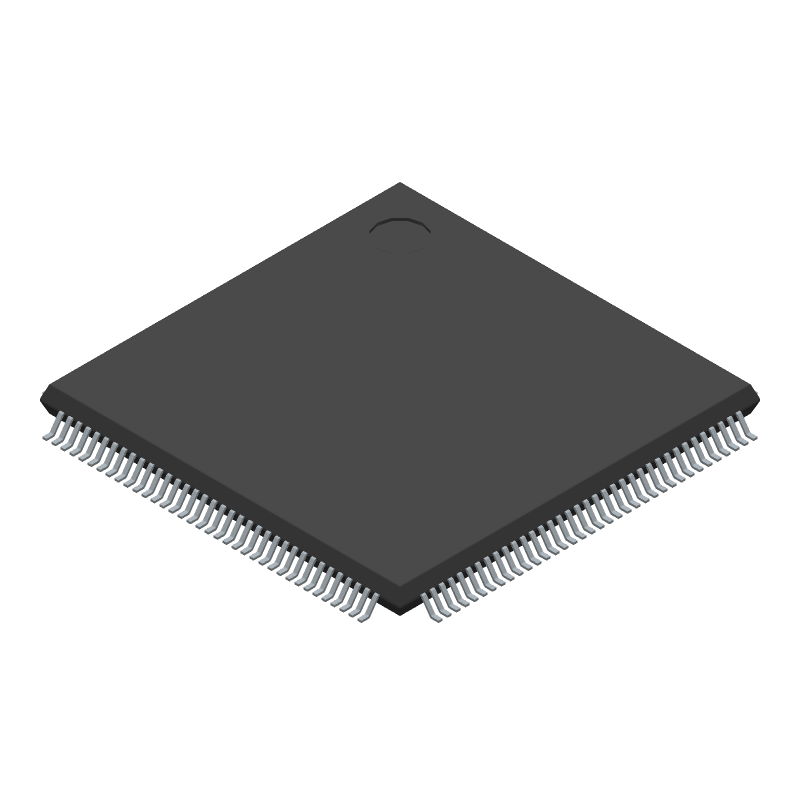

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SPC56EL60L5CBOSY by STMicroelectronics
Results Overview of SPC56EL60L5CBOSY by STMicroelectronics
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
SPC56EL60L5CBOSY Information
SPC56EL60L5CBOSY by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for SPC56EL60L5CBOSY
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
19X6057
|
Newark | 32-Bit Auto Mcus Perf |Stmicroelectronics SPC56EL60L5CBOSY RoHS: Not Compliant Min Qty: 360 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
SPC56EL60L5CBOSY-ND
|
DigiKey | IC MCU 32BIT 1MB FLASH 144LQFP Min Qty: 360 Lead time: 26 Weeks Container: Tray | Temporarily Out of Stock |
|
$11.3894 | Buy Now |
|
DISTI #
SPC56EL60L5CBOSY
|
Avnet Americas | MCU 32-Bit SPC56EL60x e200z4d RISC 1MB Flash 3.3V/5V 144-Pin LQFP Tray - Trays (Alt: SPC56EL60L5CBOSY) RoHS: Compliant Min Qty: 360 Package Multiple: 360 Lead time: 26 Weeks, 0 Days Container: Tray | 0 |
|
$10.9338 / $11.1616 | Buy Now |
|
DISTI #
511-SPC56EL60L5CBOSY
|
Mouser Electronics | ARM Microcontrollers - MCU 32-bit Pwr Architect MCU Auto Chassis RoHS: Compliant | 0 |
|
$12.7600 | Order Now |
|
|
STMicroelectronics | 32-bit Power Architecture MCU for Automotive Chassis and Safety Applications RoHS: Compliant Min Qty: 1 | 0 |
|
$12.4500 | Buy Now |
|
DISTI #
SPC56EL60L5CBOSY
|
Avnet Silica | MCU 32Bit SPC56EL60x e200z4d RISC 1MB Flash 33V5V 144Pin LQFP Tray (Alt: SPC56EL60L5CBOSY) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
SPC56EL60L5CBOSY
|
EBV Elektronik | MCU 32Bit SPC56EL60x e200z4d RISC 1MB Flash 33V5V 144Pin LQFP Tray (Alt: SPC56EL60L5CBOSY) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 27 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for SPC56EL60L5CBOSY
SPC56EL60L5CBOSY CAD Models
SPC56EL60L5CBOSY Part Data Attributes
|
|
SPC56EL60L5CBOSY
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SPC56EL60L5CBOSY
STMicroelectronics
32-bit Power Architecture MCU for Automotive Chassis and Safety Applications
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A991.B.4.A | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | 32 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | SPC56 | |
| Clock Frequency-Max | 40 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | 64 | |
| JESD-30 Code | S-PQFP-G144 | |
| JESD-609 Code | e3 | |
| Length | 20 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 16 | |
| Number of Terminals | 144 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP144,.87SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 131072 | |
| ROM (words) | 1048576 | |
| ROM Programmability | FLASH | |
| Screening Level | AEC-Q100 | |
| Speed | 120 MHz | |
| Supply Current-Max | 311.6 mA | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
SPC56EL60L5CBOSY Frequently Asked Questions (FAQ)
-
STMicroelectronics provides a recommended PCB layout guide in their application note AN4379, which includes guidelines for component placement, routing, and thermal management.
-
The clock settings for the SPC56EL60L5CBOSY can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The CCT allows you to generate clock configuration code for your specific application.
-
The SPC56EL60L5CBOSY has an operating temperature range of -40°C to 125°C, but it's recommended to check the specific temperature range for your application and ensure that the device is properly cooled to prevent overheating.
-
STMicroelectronics provides a safety manual for the SPC56EL60L5CBOSY, which includes guidelines for implementing functional safety in your design. Additionally, the device has built-in safety features such as ECC memory and a safety processor that can be used to implement safety-critical functions.
-
The recommended power-up sequence for the SPC56EL60L5CBOSY is to first power up the VDD voltage, followed by the VDDA voltage, and then the reset signal. This ensures that the device powers up correctly and prevents any potential damage.
