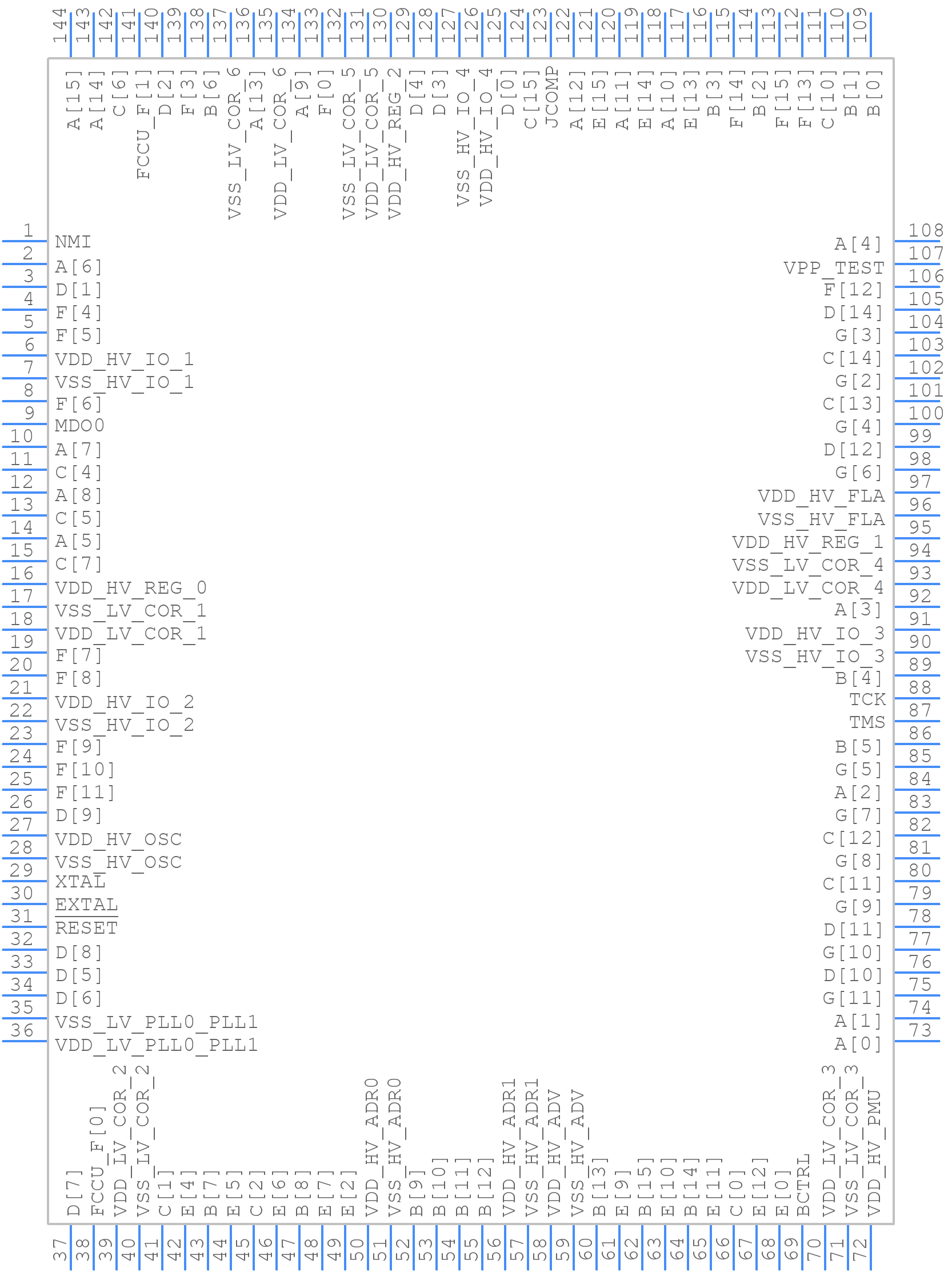

Part Symbol
-
Footprint
-

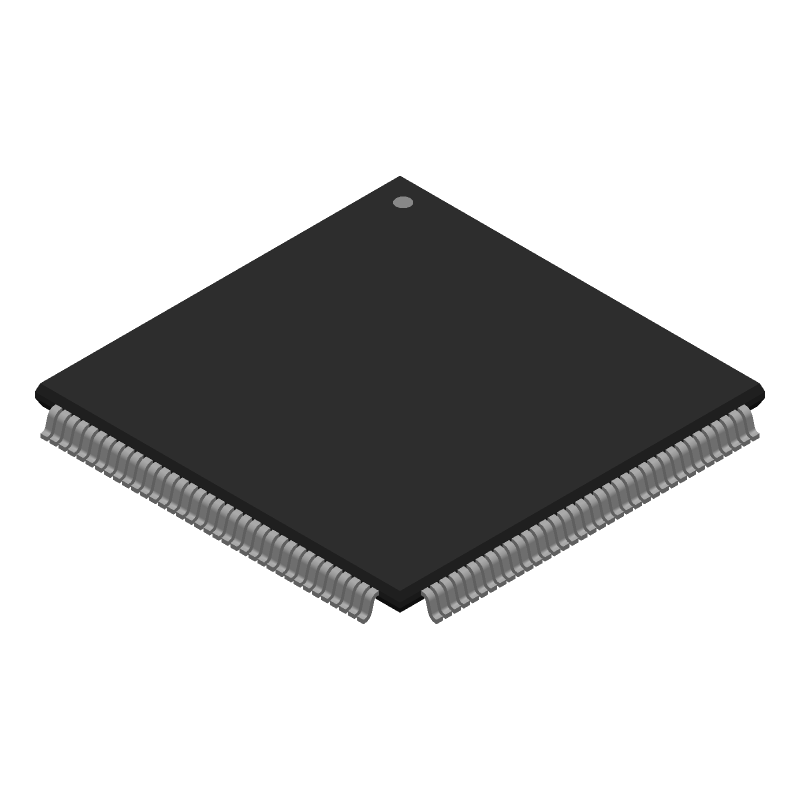

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SPC564L60L5BCOQR by STMicroelectronics
Results Overview of SPC564L60L5BCOQR by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
SPC564L60L5BCOQR Information
SPC564L60L5BCOQR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for SPC564L60L5BCOQR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SPC564L60L5BCOQR-ND
|
DigiKey | IC MCU 32BIT 1MB FLASH 144LQFP Min Qty: 500 Lead time: 26 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$8.1757 | Buy Now |
|
DISTI #
SPC564L60L5BCOQR
|
Avnet Americas | MCU 32-Bit SPC564L60x e200z4d RISC 1024KB Flash 3.3V/5V 144-Pin LQFP T/R - Tape and Reel (Alt: SPC564L60L5BCOQR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 26 Weeks, 0 Days Container: Reel | 0 |
|
$7.8487 / $8.0122 | Buy Now |
|
DISTI #
511-SPC564L60L5BCOQR
|
Mouser Electronics | ARM Microcontrollers - MCU 32-bit Power Architecture MCU for Automotive Chassis and Safety Applications RoHS: Compliant | 0 |
|
$8.4700 | Order Now |
|
|
STMicroelectronics | 32-bit Power Architecture MCU for Automotive Chassis and Safety Applications RoHS: Compliant Min Qty: 1 | 0 |
|
$8.8900 | Buy Now |
|
DISTI #
SPC564L60L5BCOQR
|
Avnet Silica | MCU 32Bit SPC564L60x e200z4d RISC 1024KB Flash 33V5V 144Pin LQFP TR (Alt: SPC564L60L5BCOQR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
SPC564L60L5BCOQR
|
EBV Elektronik | MCU 32Bit SPC564L60x e200z4d RISC 1024KB Flash 33V5V 144Pin LQFP TR (Alt: SPC564L60L5BCOQR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 27 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for SPC564L60L5BCOQR
SPC564L60L5BCOQR CAD Models
SPC564L60L5BCOQR Part Data Attributes
|
|
SPC564L60L5BCOQR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
SPC564L60L5BCOQR
STMicroelectronics
32-bit Power Architecture MCU for Automotive Chassis and Safety Applications
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A991.B.4.A | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | 32 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | SPC56 | |
| Clock Frequency-Max | 40 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | 64 | |
| JESD-30 Code | S-PQFP-G144 | |
| JESD-609 Code | e3 | |
| Length | 20 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 16 | |
| Number of Terminals | 144 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP144,.87SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 131072 | |
| ROM (words) | 1048576 | |
| ROM Programmability | FLASH | |
| Screening Level | AEC-Q100 | |
| Speed | 80 MHz | |
| Supply Current-Max | 279 mA | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
SPC564L60L5BCOQR Frequently Asked Questions (FAQ)
-
The SPC564L60L5BCOQR can operate from -40°C to 125°C, but the maximum junction temperature is 150°C.
-
The clock settings can be configured using the Clock Generation Module (CGM) and the Power Management Controller (PMC). Refer to the device's reference manual for detailed instructions.
-
The maximum frequency of the CPU is 120 MHz, and the maximum frequency of the buses (AHB, APB, and IP) is 60 MHz.
-
The SPC564L60L5BCOQR has 4MB of flash memory and 256KB of SRAM.
-
The SPC564L60L5BCOQR has several communication interfaces, including 2x FlexCAN, 2x LIN, 2x UART, 1x SPI, 1x I2C, and 1x Ethernet MAC.
