SPC564A80L7CFAR by: STMicroelectronics

32-bit Power Architecture MCU for Automotive Powertrain Applications

Part Details for SPC564A80L7CFAR by STMicroelectronics

Results Overview of SPC564A80L7CFAR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

SPC564A80L7CFAR Information

SPC564A80L7CFAR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for SPC564A80L7CFAR

Part # Distributor Description Stock Price Buy
DISTI # 06X3537
Newark 32-Bit Auto Mcus Perf |Stmicroelectronics SPC564A80L7CFAR RoHS: Not Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 497-11621-1-ND
DigiKey IC MCU 32BIT 4MB FLASH 176LQFP Min Qty: 1 Lead time: 26 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 498
In Stock
  • 1 $30.3400
  • 10 $24.5300
  • 25 $23.0796
  • 100 $21.4858
  • 250 $20.7261
  • 500 $19.2760
$19.2760 / $30.3400 Buy Now
DISTI # SPC564A80L7CFAR
Avnet Americas MCU 32-bit SPC564A80x e200 RISC 4096KB Flash 1.2V/3.3V/5V 176-Pin LQFP T/R - Tape and Reel (Alt: SPC564A80L7CFAR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 26 Weeks, 0 Days Container: Reel 0
  • 500 $19.0833
  • 1,000 $18.9869
  • 2,000 $18.8905
  • 3,000 $18.7941
  • 4,000 $18.6978
$18.6978 / $19.0833 Buy Now
DISTI # 511-SPC564A80L7CFAR
Mouser Electronics 32-bit Microcontrollers - MCU 32-BIT Embedded MCU 150 MHz, 4Mbyte RoHS: Compliant 592
  • 1 $30.0400
  • 10 $24.5300
  • 25 $23.0600
  • 50 $23.0100
  • 100 $21.4500
  • 250 $20.6800
  • 500 $19.0700
$19.0700 / $30.0400 Buy Now
STMicroelectronics 32-bit Power Architecture MCU for Automotive Powertrain Applications RoHS: Compliant Min Qty: 1 592
  • 1 $29.4400
  • 10 $24.0400
  • 25 $22.6000
  • 50 $22.5500
  • 100 $21.0200
  • 250 $20.2700
  • 500 $18.6900
$18.6900 / $29.4400 Buy Now
Quest Components MICROCONTROLLER, 32-BIT, FLASH, 150MHZ, CMOS, PQFP176 1
  • 1 $18.9000
$18.9000 Buy Now
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 861
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # SPC564A80L7CFAR
Avnet Silica MCU 32bit SPC564A80x e200 RISC 4096KB Flash 12V33V5V 176Pin LQFP TR (Alt: SPC564A80L7CFAR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 17 Weeks, 0 Days Silica - 0
Buy Now
DISTI # SPC564A80L7CFAR
EBV Elektronik MCU 32bit SPC564A80x e200 RISC 4096KB Flash 12V33V5V 176Pin LQFP TR (Alt: SPC564A80L7CFAR) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 27 Weeks, 0 Days EBV - 0
Buy Now

Part Details for SPC564A80L7CFAR

SPC564A80L7CFAR CAD Models

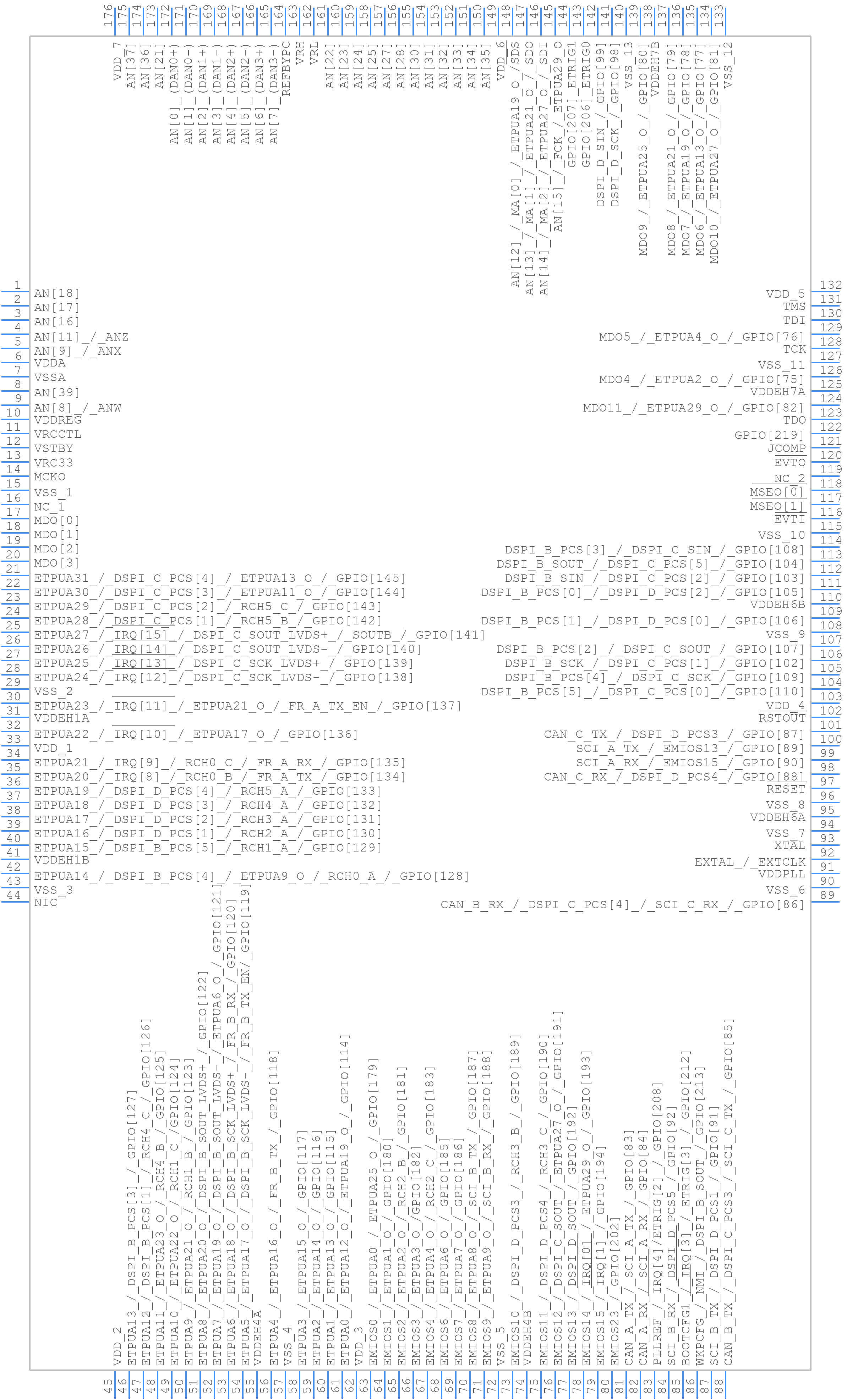

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SPC564A80L7CFAR Part Data Attributes

Parametric Data
SPC564A80L7CFAR STMicroelectronics
Buy Now Datasheet
Compare Parts:
SPC564A80L7CFAR STMicroelectronics 32-bit Power Architecture MCU for Automotive Powertrain Applications
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Package Description ROHS COMPLIANT, LQFP-176
Pin Count 176
Reach Compliance Code compliant
ECCN Code 5A991.B.4.A
HTS Code 8542.31.00.01
Factory Lead Time 26 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width 32
Bit Size 32
Clock Frequency-Max 40 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width 16
JESD-30 Code S-PQFP-G176
JESD-609 Code e3
Length 24 mm
Moisture Sensitivity Level 3
Number of I/O Lines 120
Number of Terminals 176
On Chip Program ROM Width 32
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP176,1.0SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 196608
ROM (words) 1048576
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 150 MHz
Supply Current-Max 445 mA
Supply Voltage-Max 1.32 V
Supply Voltage-Min 1.14 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 24 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER

Alternate Parts for SPC564A80L7CFAR

This table gives cross-reference parts and alternative options found for SPC564A80L7CFAR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SPC564A80L7CFAR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
