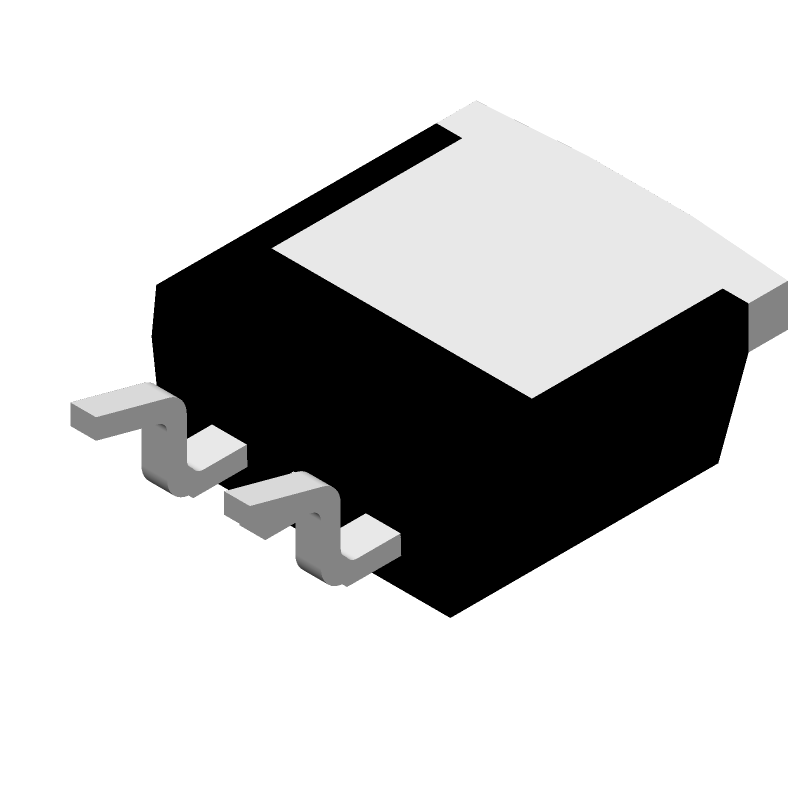

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SPB80P06PGATMA1 by Infineon Technologies AG
Results Overview of SPB80P06PGATMA1 by Infineon Technologies AG
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Medical Imaging
Robotics and Drones
SPB80P06PGATMA1 Information
SPB80P06PGATMA1 by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SPB80P06PGATMA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2212850
|
Farnell | MOSFET, P-CH, 60V, 80A, TO-263 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Cut Tape | 1697 |
|
$1.8082 / $4.2910 | Buy Now |
|
DISTI #
2212850RL
|
Farnell | MOSFET, P-CH, 60V, 80A, TO-263 RoHS: Compliant Min Qty: 100 Lead time: 11 Weeks, 1 Days Container: Reel | 1697 |
|
$1.8082 / $2.3614 | Buy Now |
|
DISTI #
SPB80P06PGATMA1CT-ND
|
DigiKey | MOSFET P-CH 60V 80A TO263-3 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2980 In Stock |
|
$1.5780 / $4.3700 | Buy Now |
|
DISTI #
SPB80P06PGATMA1
|
Avnet Americas | Trans MOSFET P-CH 60V 80A 3-Pin TO-263 T/R - Tape and Reel (Alt: SPB80P06PGATMA1) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days Container: Reel | 0 |
|
$1.2864 / $1.3259 | Buy Now |
|
DISTI #
726-SPB80P06PGATMA1
|
Mouser Electronics | MOSFETs P-Ch -60V 80A D2PAK-2 RoHS: Compliant | 2093 |
|
$1.5700 / $4.2000 | Buy Now |
|
DISTI #
E02:0323_00170540
|
Arrow Electronics | Trans MOSFET P-CH 60V 80A Automotive AEC-Q101 3-Pin(2+Tab) D2PAK T/R Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks Date Code: 2510 | Europe - 3000 |
|
$1.6952 | Buy Now |
|
DISTI #
E32:1076_00170540
|
Arrow Electronics | Trans MOSFET P-CH 60V 80A Automotive AEC-Q101 3-Pin(2+Tab) D2PAK T/R Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks | Europe - 343 |
|
$1.4672 / $4.0588 | Buy Now |
|
DISTI #
V72:2272_06377271
|
Arrow Electronics | Trans MOSFET P-CH 60V 80A Automotive AEC-Q101 3-Pin(2+Tab) D2PAK T/R Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2326 Container: Cut Strips | Americas - 93 |
|
$1.4940 / $3.9680 | Buy Now |
|
DISTI #
88210542
|
Verical | Trans MOSFET P-CH 60V 80A Automotive AEC-Q101 3-Pin(2+Tab) D2PAK T/R Min Qty: 1000 Package Multiple: 1000 Date Code: 2510 | Americas - 3000 |
|
$1.6874 | Buy Now |
|
DISTI #
69267978
|
Verical | Trans MOSFET P-CH 60V 80A Automotive AEC-Q101 3-Pin(2+Tab) D2PAK T/R Min Qty: 13 Package Multiple: 1 Date Code: 2315 | Americas - 1145 |
|
$2.0000 / $2.7200 | Buy Now |
Part Details for SPB80P06PGATMA1
SPB80P06PGATMA1 CAD Models
SPB80P06PGATMA1 Part Data Attributes
|
|
SPB80P06PGATMA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
SPB80P06PGATMA1
Infineon Technologies AG
Power Field-Effect Transistor, 80A I(D), 60V, 0.023ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, GREEN, PLASTIC, TO-263, 3 PIN
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Part Package Code | D2PAK | |
| Package Description | GREEN, PLASTIC, TO-263, 3 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | AVALANCHE RATED | |
| Avalanche Energy Rating (Eas) | 823 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 80 A | |
| Drain-source On Resistance-Max | 0.023 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-263AB | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | P-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 320 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Transistor Element Material | SILICON |
Alternate Parts for SPB80P06PGATMA1
This table gives cross-reference parts and alternative options found for SPB80P06PGATMA1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SPB80P06PGATMA1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SUM55P06-19L-E3 | Vishay Intertechnologies | $1.4462 | Power Field-Effect Transistor, 55A I(D), 60V, 0.019ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, ROHS COMPLIANT, TO-263, 3 PIN | SPB80P06PGATMA1 vs SUM55P06-19L-E3 |
SPB80P06PGATMA1 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the SPB80P06PGATMA1 is -40°C to 150°C.
-
A recommended PCB layout for optimal thermal performance would be to use a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently.
-
To ensure reliable operation in high-humidity environments, it is recommended to apply a conformal coating to the PCB and ensure that the device is properly sealed to prevent moisture ingress.
-
The recommended soldering conditions for the SPB80P06PGATMA1 are a peak temperature of 260°C, with a soldering time of 10-30 seconds.
-
To prevent ESD damage, it is recommended to handle the SPB80P06PGATMA1 in an ESD-protected environment, using ESD-protective packaging and handling tools, and ensuring that all personnel handling the device are grounded.
