SPA08N80C3 by:

Power Field-Effect Transistor, 8A I(D), 800V, 0.65ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220FP, 3 PIN

Part Details for SPA08N80C3 by Infineon Technologies AG

Results Overview of SPA08N80C3 by Infineon Technologies AG

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

SPA08N80C3 Information

SPA08N80C3 by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for SPA08N80C3

Part # Distributor Description Stock Price Buy
DISTI # 726-SPA08N80C3
Mouser Electronics MOSFETs N-Ch 800V 8A TO220FP-3 CoolMOS C3 RoHS: Compliant 165
  • 1 $2.6000
  • 10 $1.9300
  • 100 $1.5300
  • 500 $1.2800
  • 1,000 $1.1000
  • 2,500 $1.0400
  • 5,000 $1.0100
$1.0100 / $2.6000 Buy Now
Quest Components POWER FIELD-EFFECT TRANSISTOR, 8A I(D), 800V, 0.65OHM, 1-ELEMENT, N-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET, TO-220AB 85
  • 1 $2.4938
  • 12 $1.9950
  • 39 $1.4963
$1.4963 / $2.4938 Buy Now
DISTI # SPA08N80C3
TME Transistor: N-MOSFET, unipolar, 800V, 8A, 40W, PG-TO220-3-FP Min Qty: 1 67
  • 1 $2.0100
  • 3 $1.8400
  • 10 $1.6100
  • 50 $1.4500
  • 100 $1.3500
$1.3500 / $2.0100 Buy Now
Cytech Systems Limited   25000
RFQ
Wuhan P&S 800V,8A,N channel Power MOSFET Min Qty: 1 50
  • 1 $1.5700
  • 100 $1.3100
  • 500 $1.1600
  • 1,000 $1.1200
$1.1200 / $1.5700 Buy Now

Part Details for SPA08N80C3

SPA08N80C3 CAD Models

  • Part Symbol

    Part Symbol

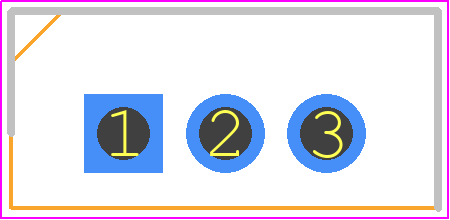

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SPA08N80C3 Part Data Attributes

Parametric Data
SPA08N80C3 Infineon Technologies AG
Buy Now Datasheet
Compare Parts:
SPA08N80C3 Infineon Technologies AG Power Field-Effect Transistor, 8A I(D), 800V, 0.65ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220FP, 3 PIN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer INFINEON TECHNOLOGIES AG
Part Package Code TO-220AB
Package Description TO-220FP, 3 PIN
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer Infineon
Additional Feature AVALANCHE RATED, HIGH VOLTAGE
Avalanche Energy Rating (Eas) 340 mJ
Case Connection ISOLATED
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 800 V
Drain Current-Max (ID) 8 A
Drain-source On Resistance-Max 0.65 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Number of Elements 1
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 40 W
Pulsed Drain Current-Max (IDM) 24 A
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 10
Transistor Application SWITCHING
Transistor Element Material SILICON

Alternate Parts for SPA08N80C3

This table gives cross-reference parts and alternative options found for SPA08N80C3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SPA08N80C3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STP6NK60ZFP STMicroelectronics $0.7542 N-channel 600 V, 1 Ohm typ., 6 A SuperMESH Power MOSFET in a TO-220 package SPA08N80C3 vs STP6NK60ZFP
STP3NK90ZFP STMicroelectronics $0.8525 N-channel 900 V, 4.1 Ohm typ., 3 A SuperMESH Power MOSFET in TO-220FP package SPA08N80C3 vs STP3NK90ZFP
STP7NK80ZFP STMicroelectronics $1.7097 N-channel 800 V, 1.5 Ohm typ., 5.2 A SuperMESH Power MOSFET in a TO-220FP package SPA08N80C3 vs STP7NK80ZFP
SPA11N80C3 Infineon Technologies AG $1.7153 Power Field-Effect Transistor, 11A I(D), 800V, 0.45ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, TO-220FP, 3 PIN SPA08N80C3 vs SPA11N80C3
STP5NK60ZFP STMicroelectronics Check for Price N-channel 600 V, 1.2 Ohm typ., 5 A SuperMESH Power MOSFET in TO-220FP package SPA08N80C3 vs STP5NK60ZFP
STF5NK90Z STMicroelectronics Check for Price 4.5A, 900V, 2.5ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220FP, 3 PIN SPA08N80C3 vs STF5NK90Z
STP8NM50FP STMicroelectronics Check for Price 8A, 500V, 0.8ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220FP, 3 PIN SPA08N80C3 vs STP8NM50FP
STP5NB90FP STMicroelectronics Check for Price 5A, 900V, 2.5ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220FP, 3 PIN SPA08N80C3 vs STP5NB90FP
STP3NB90FP STMicroelectronics Check for Price 3.5A, 900V, 4.2ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220FP, 3 PIN SPA08N80C3 vs STP3NB90FP
STF20N20 STMicroelectronics Check for Price 18A, 200V, 0.125ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220FP, 3 PIN SPA08N80C3 vs STF20N20

SPA08N80C3 Related Parts

SPA08N80C3 Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the SPA08N80C3 is -40°C to 150°C.

  • To ensure reliability, follow the recommended operating conditions, use a suitable heat sink, and ensure proper thermal management. Additionally, consider using a gate driver with a high current capability and a low impedance path to the power device.

  • The recommended gate resistance for the SPA08N80C3 is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.

  • To minimize EMI, use a shielded cable for the gate drive, keep the power and gate drive loops as small as possible, and use a common mode choke or ferrite bead to filter the power supply.

  • The maximum allowable voltage transient for the SPA08N80C3 is 80% of the maximum rated voltage, which is 640V for this device.
