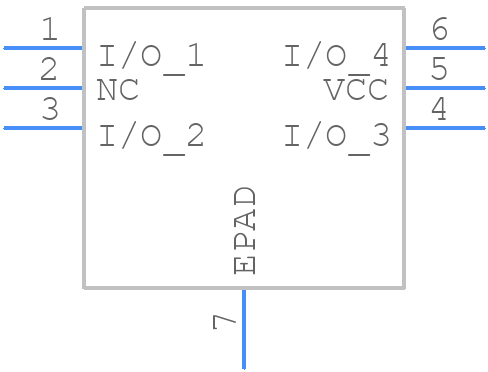

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SP3002-04UTG by Littelfuse Inc
Results Overview of SP3002-04UTG by Littelfuse Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
SP3002-04UTG Information
SP3002-04UTG by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SP3002-04UTG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
72R4430
|
Newark | Transient Voltage Suppression Array, Clamping Voltage Vc Max:13V, Diode Case Style:Udfn, No. Of Pins:6Pins, Operating Voltage:-, Power Dissipation Pd:-, Product Range:Spa Sp3002 Series, Automotive Qualification Standard:- Rohs Compliant: Yes |Littelfuse SP3002-04UTG RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
|
Bristol Electronics | 21000 |
|
RFQ | ||
|
|
Vyrian | Diodes | 617 |
|
RFQ | |
|
|
Win Source Electronics | TVS DIODE 6VWM 13VC UDFN6 | 15000 |
|
$0.1877 / $0.2815 | Buy Now |
Part Details for SP3002-04UTG
SP3002-04UTG CAD Models
SP3002-04UTG Part Data Attributes
|
|
SP3002-04UTG
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
SP3002-04UTG
Littelfuse Inc
Trans Voltage Suppressor Diode, 6V V(RWM), Unidirectional, 1 Element, Silicon, UDFN-6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Part Package Code | DFN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | LOW CAPACITANCE | |
| Clamping Voltage-Max | 13 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | S-PDSO-N6 | |
| Number of Elements | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 6 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
SP3002-04UTG Frequently Asked Questions (FAQ)
-
The recommended PCB layout and land pattern for the SP3002-04UTG can be found in the Littelfuse application note AN9313. It provides guidelines for optimal PCB design, including pad sizes, spacing, and thermal considerations.
-
The SP3002-04UTG is designed to withstand overvoltage conditions up to 30V. During an overvoltage event, the device will clamp the voltage to a safe level, protecting the downstream circuitry. However, prolonged exposure to overvoltage conditions may affect the device's reliability and lifespan.
-
The SP3002-04UTG is rated for 2A surge current, which is sufficient for most industrial and commercial applications. However, if your design requires a higher surge current rating, you may need to consider a different device or consult with a Littelfuse application engineer.
-
The SP3002-04UTG is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consult the datasheet and application notes for specific guidance on high-temperature operation.
-
Yes, the SP3002-04UTG is compatible with lead-free soldering processes. Littelfuse ensures that their devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, making them suitable for use in lead-free soldering applications.
