SP22G-1K Information
SP22G-1K by ETI Systems is a Variable Resistor.
Variable Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for SP22G-1K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
83H7882
|
Newark | Conductive Plastic Potentiometer, 1Kohm, 10%, 1W, Track Resistance:1Kohm, No. Of Turns:1Turns, Track Taper:Linear, Power Rating:1W, Resistance Tolerance:± 10%, Product Range:Sp22G Series, Potentiometer Mounting:Panel Mount Rohs Compliant: Yes |Eti Systems SP22G-1K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 44 |
|
$27.0200 / $41.3500 | Buy Now |
|
DISTI #
5256-SP22G-1K-ND
|
DigiKey | POT 1K OHM 1W PLASTIC LINEAR Min Qty: 1 Lead time: 10 Weeks Container: Bulk |
13 In Stock |
|
$29.0221 / $41.3500 | Buy Now |
|
DISTI #
882-SP22G-1K
|
Mouser Electronics | Precision Potentiometers 1W 1Kohms 10% RoHS: Compliant | 107 |
|
$27.0200 / $40.4000 | Buy Now |
|
DISTI #
70089295
|
RS | Potentiometer Conductive Plastic SP22G Series 1k 1 Turn Pwr 1W Brass Bushing Min Qty: 1 Package Multiple: 1 Container: Bulk | 14 |
|
$31.4200 / $40.8000 | Buy Now |
Part Details for SP22G-1K

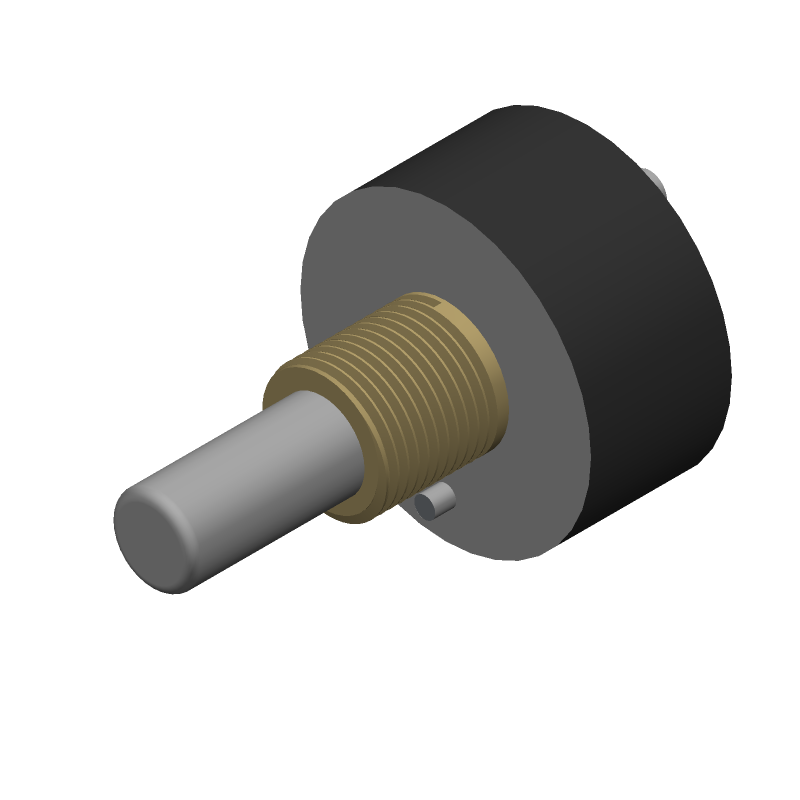

SP22G-1K CAD Models
SP22G-1K Part Data Attributes
|
|
SP22G-1K
ETI Systems
Buy Now
Datasheet
|
Compare Parts:
SP22G-1K
ETI Systems
Potentiometer
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | ETI SYSTEMS INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | ETI Systems | |
| Manufacturer Series | SP22G | |
| Resistor Type | POTENTIOMETER |
