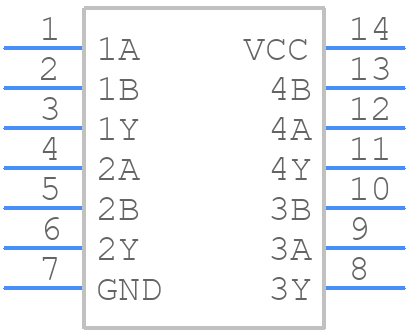

Part Symbol
-

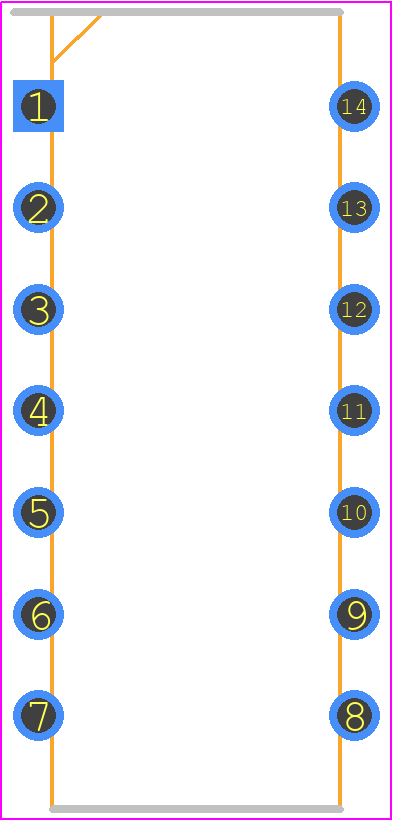

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SNJ54ALS86J by Texas Instruments
Results Overview of SNJ54ALS86J by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Financial Technology (Fintech)
Healthcare
SNJ54ALS86J Information
SNJ54ALS86J by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SNJ54ALS86J | Texas Instruments | Quadruple 2-Input Exclusive-OR Gates 14-CDIP -55 to 125 |
Price & Stock for SNJ54ALS86J
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 9 |
|
RFQ | ||
|
|
Quest Components | XOR GATE, ALS SERIES, 4-FUNC, 2-INPUT, TTL, CDIP14 | 30 |
|
$9.4350 / $11.4750 | Buy Now |
|
|
Quest Components | XOR GATE, ALS SERIES, 4-FUNC, 2-INPUT, TTL, CDIP14 | 26 |
|
$18.5000 / $22.5000 | Buy Now |
|
|
Quest Components | XOR GATE, ALS SERIES, 4-FUNC, 2-INPUT, TTL, CDIP14 | 10 |
|
$14.3750 / $16.1719 | Buy Now |
|
|
Quest Components | XOR GATE, ALS SERIES, 4-FUNC, 2-INPUT, TTL, CDIP14 | 7 |
|
$24.7500 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
|
Vyrian | Peripheral ICs | 905 |
|
RFQ |
Part Details for SNJ54ALS86J
SNJ54ALS86J CAD Models
SNJ54ALS86J Part Data Attributes
|
|
SNJ54ALS86J
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SNJ54ALS86J
Texas Instruments
Military 4-ch, 2-input, 4.5-V to 5.5-V bipolar XOR (exclusive OR) gates 14-CDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Pin Count | 14 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | ALS | |
| JESD-30 Code | R-GDIP-T14 | |
| JESD-609 Code | e0 | |
| Length | 19.56 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | XOR GATE | |
| Max I(ol) | 0.002 A | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | CERAMIC, GLASS-SEALED | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power Supply Current-Max (ICC) | 5.9 mA | |
| Prop. Delay@Nom-Sup | 22 ns | |
| Propagation Delay (tpd) | 14 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Screening Level | MIL-PRF-38535 | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | TTL | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for SNJ54ALS86J
This table gives cross-reference parts and alternative options found for SNJ54ALS86J. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SNJ54ALS86J, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 5962-8862101CA | Texas Instruments | $7.7900 | Military 4-ch, 2-input, 4.5-V to 5.5-V bipolar XOR (exclusive OR) gates 14-CDIP -55 to 125 | SNJ54ALS86J vs 5962-8862101CA |
| SN74ALS86JP4 | Texas Instruments | Check for Price | IC,LOGIC GATE,QUAD 2-INPUT XOR,ALS-TTL,DIP,14PIN,CERAMIC | SNJ54ALS86J vs SN74ALS86JP4 |
| SN74ALS86J4 | Rochester Electronics LLC | Check for Price | XOR Gate | SNJ54ALS86J vs SN74ALS86J4 |
| SN54ALS86J | Texas Instruments | Check for Price | Military 4-ch, 2-input, 4.5-V to 5.5-V bipolar XOR (exclusive OR) gates 14-CDIP -55 to 125 | SNJ54ALS86J vs SN54ALS86J |
| SN74ALS86J4 | Texas Instruments | Check for Price | IC,LOGIC GATE,QUAD 2-INPUT XOR,ALS-TTL,DIP,14PIN,CERAMIC | SNJ54ALS86J vs SN74ALS86J4 |
| SN74ALS86N3 | Texas Instruments | Check for Price | Quadruple 2-Input Exclusive-OR Gates 14-PDIP 0 to 70 | SNJ54ALS86J vs SN74ALS86N3 |
