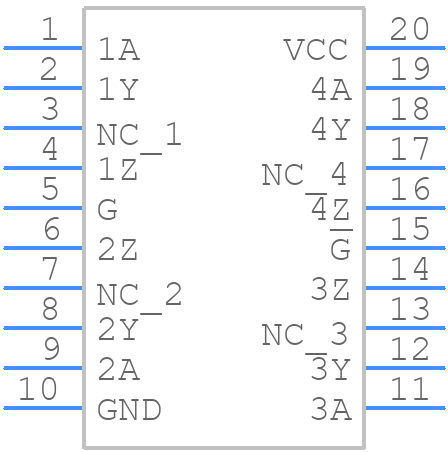

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN75LBC172DWR by Texas Instruments
Results Overview of SN75LBC172DWR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Telecommunications
Renewable Energy
Communication and Networking
Robotics and Drones
SN75LBC172DWR Information
SN75LBC172DWR by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN75LBC172DWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-SN75LBC172DWRCT-ND
|
DigiKey | IC TRANSCEIVER 4/0 20SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$2.6142 / $4.7000 | Buy Now |
|
DISTI #
595-SN75LBC172DWR
|
Mouser Electronics | RS-485 Interface IC Quad Low-Pwr Diff Li ne Driver A 595-SN75LBC172DW RoHS: Compliant | 0 |
|
$2.6100 / $4.7000 | Order Now |
Part Details for SN75LBC172DWR
SN75LBC172DWR CAD Models
SN75LBC172DWR Part Data Attributes
|
|
SN75LBC172DWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN75LBC172DWR
Texas Instruments
Quadruple Low-Power Differential Line Driver 20-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SOIC-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | YES | |
| Driver Number of Bits | 4 | |
| High Level Input Current-Max | 0.0001 A | |
| Input Characteristics | STANDARD | |
| Interface IC Type | LINE DRIVER | |
| Interface Standard | EIA-485 | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 12.8 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 1.5 V | |
| Output Characteristics | 3-STATE | |
| Output Low Current-Max | 0.000059999999999999995 A | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Current-Max | 7 mA | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 5.25 V | |
| Supply Voltage1-Min | 4.75 V | |
| Supply Voltage1-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 20 ns | |
| Width | 7.5 mm |
Alternate Parts for SN75LBC172DWR
This table gives cross-reference parts and alternative options found for SN75LBC172DWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN75LBC172DWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN65LBC172N | Texas Instruments | $3.0986 | Quadruple Low-Power Differential Line Driver 16-PDIP -40 to 85 | SN75LBC172DWR vs SN65LBC172N |
| SN75LBC172N | Texas Instruments | $3.2929 | Quadruple Low-Power Differential Line Driver 16-PDIP 0 to 70 | SN75LBC172DWR vs SN75LBC172N |
| SNJ55LBC172J | Texas Instruments | $40.9717 | Quadruple Low-Power Differential Line Driver 16-CDIP -55 to 125 | SN75LBC172DWR vs SNJ55LBC172J |
| SN75LBC172DWG4 | Texas Instruments | Check for Price | Quadruple Low-Power Differential Line Driver 20-SOIC 0 to 70 | SN75LBC172DWR vs SN75LBC172DWG4 |
| SN65ALS172AN | Texas Instruments | Check for Price | Quadruple Differential Line Driver 16-PDIP | SN75LBC172DWR vs SN65ALS172AN |
