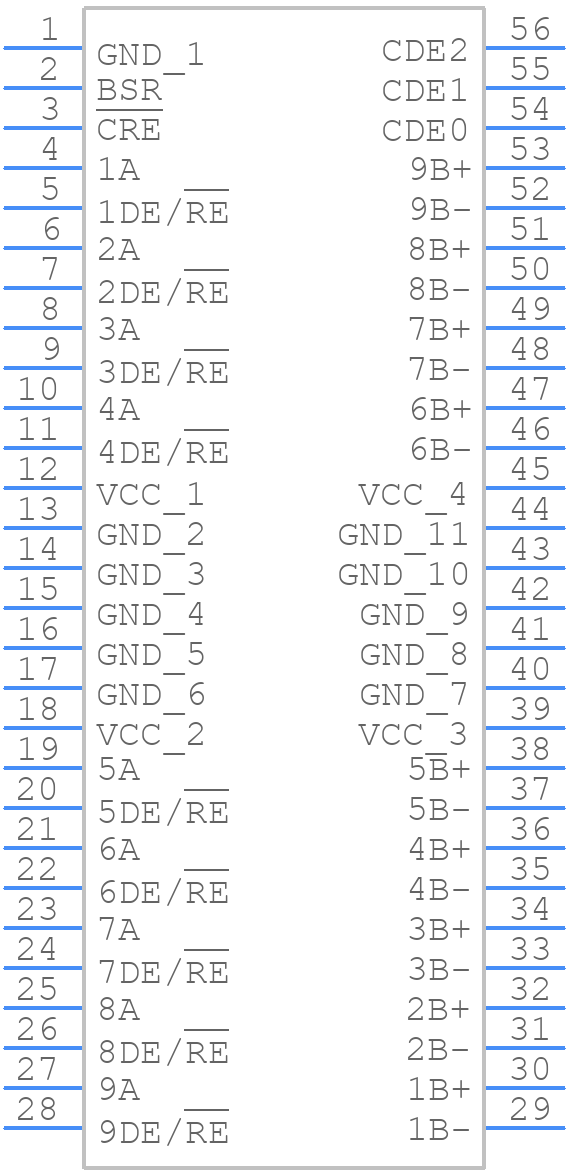

Part Symbol
-

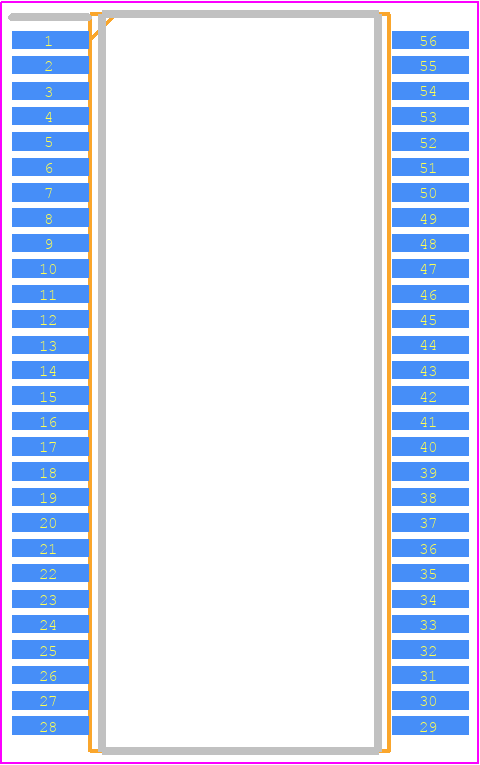

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN75976A2DLR by Texas Instruments
Results Overview of SN75976A2DLR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
SN75976A2DLR Information
SN75976A2DLR by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for SN75976A2DLR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-SN75976A2DLR-ND
|
DigiKey | IC TRANSCEIVER HALF 9/9 56SSOP Min Qty: 1 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
3860 In Stock |
|
$18.4400 | Buy Now |
|
DISTI #
296-1278-1-ND
|
DigiKey | IC TRANSCEIVER HALF 9/9 56SSOP Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$18.1061 / $27.7800 | Buy Now |
|
DISTI #
595-SN75976A2DLR
|
Mouser Electronics | RS-485 Interface IC 9-Channel Diff Trans ceiver A 595-SN75976A2DL RoHS: Compliant | 239 |
|
$17.9300 / $27.7900 | Buy Now |
|
DISTI #
86285581
|
Verical | Nine Transmitter/Receiver RS-485 56-Pin SSOP T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1001 | Americas - 3860 |
|
$22.1625 | Buy Now |
|
|
Bristol Electronics | 35 |
|
RFQ | ||
|
|
Rochester Electronics | SN75976A 9-channel differential transceiver RoHS: Compliant Status: Active Min Qty: 1 | 3860 |
|
$14.1800 / $17.7300 | Buy Now |
|
|
Ameya Holding Limited | IC 9-CHAN DIFF TXCVR 56-SSOP | 5500 |
|
RFQ |
Part Details for SN75976A2DLR
SN75976A2DLR CAD Models
SN75976A2DLR Part Data Attributes
|
|
SN75976A2DLR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN75976A2DLR
Texas Instruments
9-channel differential transceiver 56-SSOP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | SSOP-56 | |
| Pin Count | 56 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A991.B | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | COMMON I/O; ADDITIONAL COMMON ENABLE INPUT | |
| Differential Output | YES | |
| Driver Number of Bits | 9 | |
| High Level Input Current-Max | 0.0001 A | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | X3.129; X3.131; X3.277; EIA-485; SCSI-2; ISO 8482; IPI | |
| JESD-30 Code | R-PDSO-G56 | |
| JESD-609 Code | e4 | |
| Length | 18.415 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 9 | |
| Number of Terminals | 56 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 1 V | |
| Output Characteristics | 3-STATE | |
| Output Low Current-Max | 0.008 A | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP56,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 14.5 ns | |
| Receiver Number of Bits | 9 | |
| Seated Height-Max | 2.79 mm | |
| Supply Current-Max | 60 mA | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 5.25 V | |
| Supply Voltage1-Min | 4.75 V | |
| Supply Voltage1-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 11.5 ns | |
| Width | 7.5 mm |
Alternate Parts for SN75976A2DLR
This table gives cross-reference parts and alternative options found for SN75976A2DLR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN75976A2DLR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN75976A2DL | Texas Instruments | $18.5449 | 9-channel differential transceiver 56-SSOP | SN75976A2DLR vs SN75976A2DL |
| SN75976A2DLG4 | Texas Instruments | Check for Price | 9-Channel Differential Transceiver 56-SSOP | SN75976A2DLR vs SN75976A2DLG4 |
| SN75976A2DLRG4 | Texas Instruments | Check for Price | 9-Channel Differential Transceiver 56-SSOP | SN75976A2DLR vs SN75976A2DLRG4 |
SN75976A2DLR Frequently Asked Questions (FAQ)
-
TI recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for the top layer.
-
Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and follow the recommended PCB layout. Also, consider derating the device's power dissipation according to the temperature derating curve in the datasheet.
-
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V.
-
The SN75976A2DLR is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if you must use it in such an environment, ensure proper conformal coating and follow the recommended storage and handling procedures to minimize moisture absorption.
-
TI recommends using a human-body model (HBM) ESD protection of at least 2 kV and a machine-model (MM) ESD protection of at least 200 V. You can use external ESD protection devices or follow proper handling and storage procedures to minimize ESD damage.
