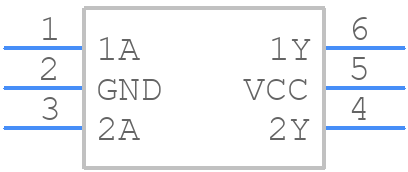

Part Symbol
-
Footprint
-

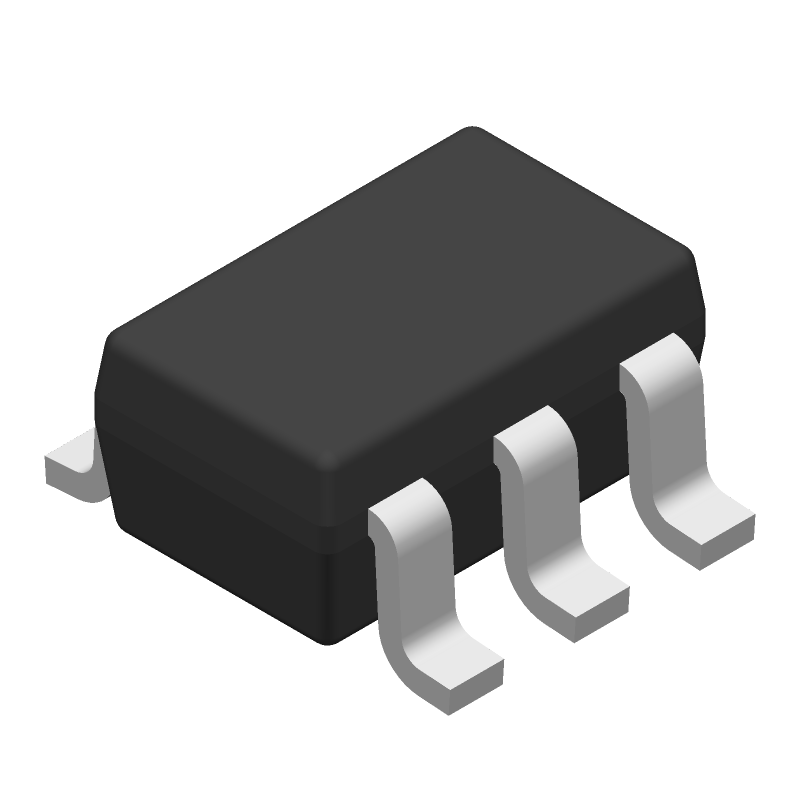

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LVC2G14DCKTG4 by Texas Instruments
Results Overview of SN74LVC2G14DCKTG4 by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
SN74LVC2G14DCKTG4 Information
SN74LVC2G14DCKTG4 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC2G14DCKTG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-74LVC2G14DCKTG4
|
Mouser Electronics | Inverters Dual Schmitt Trigger Inverter A 595-SN74LVC2G14DCKT RoHS: Compliant | 15339 |
|
$0.5540 / $2.0100 | Buy Now |
|
DISTI #
J56:1989_00572631
|
Arrow Electronics | Inverter Schmitt Trigger 2-Element CMOS 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 6 Weeks Date Code: 2301 | Europe - 250 |
|
$0.4702 / $0.5616 | Buy Now |
|
|
Cytech Systems Limited | IC INVERT SCHMITT 2CH 2IN SC70-6 | 1250 |
|
RFQ | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 6238 |
|
$0.4500 / $1.0000 | Buy Now |
|
|
Vyrian | Logic ICs | 55560 |
|
RFQ | |
|
|
Win Source Electronics | IC INVERTER SCHM TRG DL SOT70-6 | 79510 |
|
$0.0578 / $0.0745 | Buy Now |
Part Details for SN74LVC2G14DCKTG4
SN74LVC2G14DCKTG4 CAD Models
SN74LVC2G14DCKTG4 Part Data Attributes
|
|
SN74LVC2G14DCKTG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC2G14DCKTG4
Texas Instruments
2-ch, 1.65-V to 5.5-V inverters with Schmitt-Trigger inputs 6-SC70 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SC-70, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Inputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.01 mA | |
| Prop. Delay@Nom-Sup | 6 ns | |
| Propagation Delay (tpd) | 9.5 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for SN74LVC2G14DCKTG4
This table gives cross-reference parts and alternative options found for SN74LVC2G14DCKTG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC2G14DCKTG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 935273895125 | Nexperia | Check for Price | Inverter, LVC/LCX/Z Series, 2-Func, 1-Input, CMOS, PDSO6 | SN74LVC2G14DCKTG4 vs 935273895125 |
SN74LVC2G14DCKTG4 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVC2G14DCKTG4 is 100 MHz.
-
Yes, the SN74LVC2G14DCKTG4 is 5V tolerant, meaning it can accept input voltages up to 5.5V even though its recommended operating voltage is 1.65V to 3.6V.
-
The propagation delay of the SN74LVC2G14DCKTG4 is approximately 3.5 ns at 3.3V and 25°C.
-
Yes, the SN74LVC2G14DCKTG4 is suitable for use in 3.3V systems, and its output voltage is compatible with 3.3V logic.
-
Yes, the SN74LVC2G14DCKTG4 is available in a lead-free package, making it suitable for use in RoHS-compliant designs.
