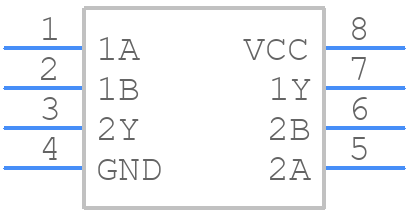

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LVC2G08DCU by Texas Instruments
Results Overview of SN74LVC2G08DCU by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74LVC2G08DCU Information
SN74LVC2G08DCU by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC2G08DCU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Velocity Electronics | Our Stock | 4 |
|
RFQ | |
|
|
Vyrian | Logic ICs | 668 |
|
RFQ |
Part Details for SN74LVC2G08DCU
SN74LVC2G08DCU CAD Models
SN74LVC2G08DCU Part Data Attributes
|
|
SN74LVC2G08DCU
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC2G08DCU
Texas Instruments
LVC/LCX/Z SERIES, DUAL 2-INPUT AND GATE, PDSO8, PLASTIC, TSSOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | PLASTIC, TSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 2.3 mm | |
| Logic IC Type | AND GATE | |
| Number of Functions | 2 | |
| Number of Inputs | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Propagation Delay (tpd) | 9 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.9 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 2 mm |
Alternate Parts for SN74LVC2G08DCU
This table gives cross-reference parts and alternative options found for SN74LVC2G08DCU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC2G08DCU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74LVC2G08DC | Nexperia | Check for Price | AND Gate, LVC/LCX/Z Series, 2-Func, 2-Input, CMOS, PDSO8 | SN74LVC2G08DCU vs 74LVC2G08DC |
| PI74STX2G08DX | Pericom Semiconductor Corporation | Check for Price | AND Gate, STX Series, 2-Func, 2-Input, CMOS, PDSO8, MO-187CA, US-8 | SN74LVC2G08DCU vs PI74STX2G08DX |
| V62/07631-01XE | Texas Instruments | Check for Price | Enhanced product, 2-ch, 2-input 1.65-V to 5.5-V 32-mA drive strength AND gate 8-VSSOP -55 to 125 | SN74LVC2G08DCU vs V62/07631-01XE |
