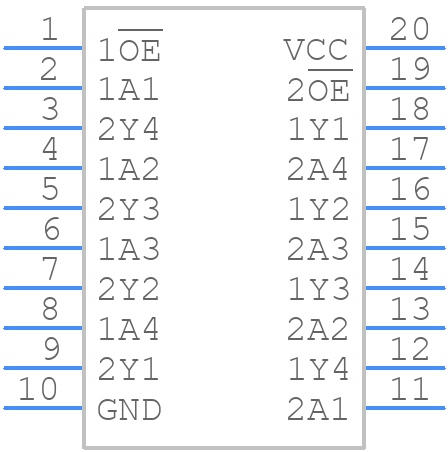

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LVC244APWRE4 by Texas Instruments
Results Overview of SN74LVC244APWRE4 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74LVC244APWRE4 Information
SN74LVC244APWRE4 by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC244APWRE4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-SN74LVC244APWRE4
|
Mouser Electronics | Buffers & Line Drivers Octal Buffer/Driver W/3-State Output ALT 595-SN74LVC244APWR RoHS: Compliant | 1728 |
|
$0.3100 / $1.1800 | Buy Now |
|
|
Quest Components | LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20 | 354 |
|
$0.2247 / $0.4815 | Buy Now |
|
|
Vyrian | Logic ICs | 1371 |
|
RFQ | |
|
|
Win Source Electronics | IC BUF NON-INVERT 3.6V 20TSSOP / Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-TSSOP | 143470 |
|
$0.0833 / $0.1076 | Buy Now |
Part Details for SN74LVC244APWRE4
SN74LVC244APWRE4 CAD Models
SN74LVC244APWRE4 Part Data Attributes
|
|
SN74LVC244APWRE4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC244APWRE4
Texas Instruments
8-ch, 1.65-V to 3.6-V buffers with 3-state outputs 20-TSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Control Type | ENABLE LOW | |
| Count Direction | UNIDIRECTIONAL | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 6.5 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS DRIVER | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Ports | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP20,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.04 mA | |
| Prop. Delay@Nom-Sup | 7.2 ns | |
| Propagation Delay (tpd) | 16.4 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for SN74LVC244APWRE4
This table gives cross-reference parts and alternative options found for SN74LVC244APWRE4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC244APWRE4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 935210420118 | Nexperia | Check for Price | Bus Driver | SN74LVC244APWRE4 vs 935210420118 |
| 74LVC244APWDH | NXP Semiconductors | Check for Price | IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, TSSOP2-20, Bus Driver/Transceiver | SN74LVC244APWRE4 vs 74LVC244APWDH |
| 74LVC244APWDH-T | NXP Semiconductors | Check for Price | IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, TSSOP2-20, Bus Driver/Transceiver | SN74LVC244APWRE4 vs 74LVC244APWDH-T |
| 7LVC244APWDH | NXP Semiconductors | Check for Price | IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver | SN74LVC244APWRE4 vs 7LVC244APWDH |
| SN74LVC244APWR | Texas Instruments | $0.1776 | 8-ch, 1.65-V to 3.6-V buffers with 3-state outputs 20-TSSOP -40 to 125 | SN74LVC244APWRE4 vs SN74LVC244APWR |
| 74LVC244APW | NXP Semiconductors | $0.2023 | IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, 4.40 MM, PLASTIC, MO-153, SOT360-1, TSSOP-20, Bus Driver/Transceiver | SN74LVC244APWRE4 vs 74LVC244APW |
| SN74LVC244APW | Texas Instruments | $0.3476 | 8-ch, 1.65-V to 3.6-V buffers with 3-state outputs 20-TSSOP -40 to 125 | SN74LVC244APWRE4 vs SN74LVC244APW |
SN74LVC244APWRE4 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVC244APWRE4 is 100 MHz.
-
Yes, the SN74LVC244APWRE4 is compatible with both 3.3V and 5V logic levels, making it a versatile component for various applications.
-
The propagation delay of the SN74LVC244APWRE4 is typically around 2.5 ns, but it can vary depending on the operating conditions and load capacitance.
-
Yes, the SN74LVC244APWRE4 is rated for operation up to 125°C, making it suitable for high-temperature applications.
-
Yes, the SN74LVC244APWRE4 has built-in electrostatic discharge (ESD) protection, which helps prevent damage from static electricity.
