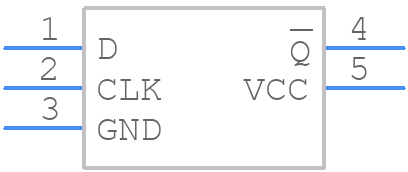

Part Symbol
-
Footprint
-

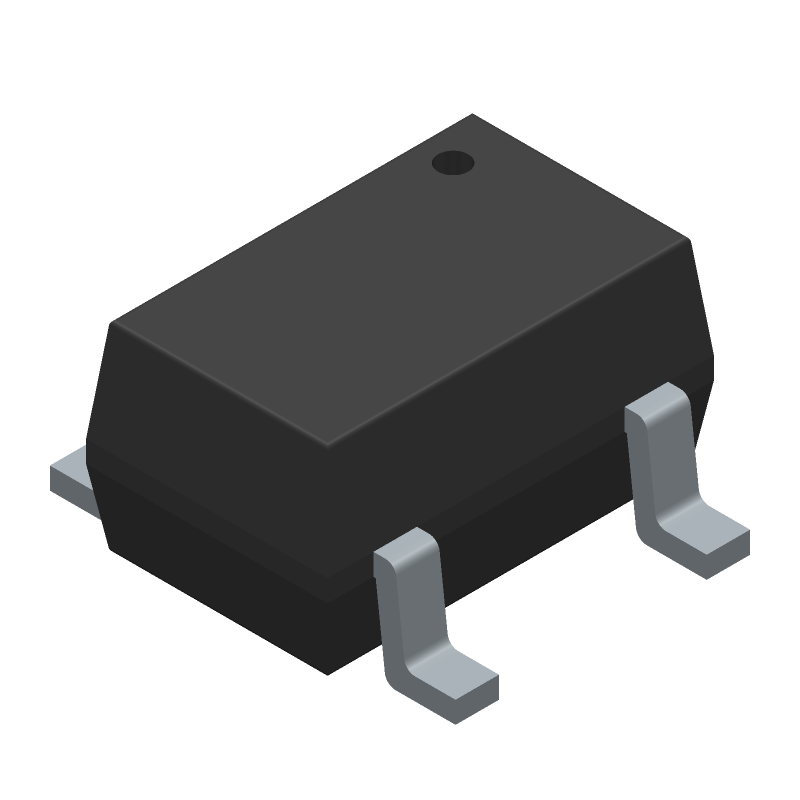

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LVC1G80QDCKTQ1 by Texas Instruments
Results Overview of SN74LVC1G80QDCKTQ1 by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
SN74LVC1G80QDCKTQ1 Information
SN74LVC1G80QDCKTQ1 by Texas Instruments is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
