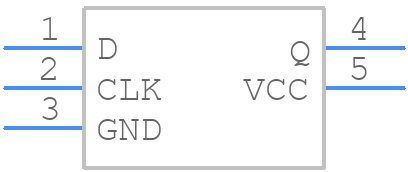

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LVC1G79DBVT by Texas Instruments
Results Overview of SN74LVC1G79DBVT by Texas Instruments
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Industrial Automation
Electronic Manufacturing
Automotive
SN74LVC1G79DBVT Information
SN74LVC1G79DBVT by Texas Instruments is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC1G79DBVT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52AH4421
|
Newark | Logic, Sngl Pos-Edg-Trg D F-F, 5Sot23, Logic Family/Base Number:74Lvc1G79, Flip-Flop Type:D, Propagation Delay:3.8Ns, Frequency:160Mhz, Output Current:32Ma, Logic Case Style:Sot-23, No. Of Pins:5Pins, Trigger Type:Positive Edge, Icrohs Compliant: Yes |Texas Instruments SN74LVC1G79DBVT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.2900 / $1.5300 | Buy Now |
|
DISTI #
2156-SN74LVC1G79DBVT-ND
|
DigiKey | IC FF D-TYPE SGL 1-BIT SOT-23-5 Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
123518 In Stock |
|
$0.4800 | Buy Now |
|
DISTI #
296-32306-1-ND
|
DigiKey | IC FF D-TYPE SGL 1-BIT SOT-23-5 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1211 In Stock |
|
$0.3583 / $0.8300 | Buy Now |
|
DISTI #
595-SN74LVC1G79DBVT
|
Mouser Electronics | Flip Flops SNGL Pos Edge Trigrd DType FlipFlop A 595-SN74LVC1G79DBVR RoHS: Compliant | 870 |
|
$0.3640 / $0.7200 | Buy Now |
|
DISTI #
V72:2272_07352824
|
Arrow Electronics | Flip Flop D-Type Pos-Edge Push-Pull 1-Element 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 1206 Container: Cut Strips | Americas - 36 |
|
$0.3427 / $0.3429 | Buy Now |
|
DISTI #
86029464
|
Verical | Flip Flop D-Type Pos-Edge Push-Pull 1-Element 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 729 Package Multiple: 1 Date Code: 1201 | Americas - 76000 |
|
$0.3544 / $0.5145 | Buy Now |
|
DISTI #
86042477
|
Verical | Flip Flop D-Type Pos-Edge Push-Pull 1-Element 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 729 Package Multiple: 1 Date Code: 0501 | Americas - 35250 |
|
$0.3544 / $0.5145 | Buy Now |
|
DISTI #
86030001
|
Verical | Flip Flop D-Type Pos-Edge Push-Pull 1-Element 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 729 Package Multiple: 1 Date Code: 0301 | Americas - 11000 |
|
$0.3544 / $0.5145 | Buy Now |
|
DISTI #
86042038
|
Verical | Flip Flop D-Type Pos-Edge Push-Pull 1-Element 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 729 Package Multiple: 1 | Americas - 1268 |
|
$0.3544 / $0.5145 | Buy Now |
|
|
Rochester Electronics | SN74LVC1G79 Single Positive-Edge-Triggered D-Type Flip-Flop RoHS: Compliant Status: Active Min Qty: 1 | 123518 |
|
$0.2835 / $0.4573 | Buy Now |
Part Details for SN74LVC1G79DBVT
SN74LVC1G79DBVT CAD Models
SN74LVC1G79DBVT Part Data Attributes
|
|
SN74LVC1G79DBVT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC1G79DBVT
Texas Instruments
Single Positive-Edge-Triggered D-Type Flip-Flop 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | GREEN, PLASTIC, SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | D FLIP-FLOP | |
| Max Frequency@Nom-Sup | 160000000 Hz | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.01 mA | |
| Prop. Delay@Nom-Sup | 5 ns | |
| Propagation Delay (tpd) | 20.5 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 1.6 mm | |
| fmax-Min | 150 MHz |
Alternate Parts for SN74LVC1G79DBVT
This table gives cross-reference parts and alternative options found for SN74LVC1G79DBVT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC1G79DBVT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74LVC1G80DBVRG4 | Texas Instruments | $0.1222 | Single Positive-Edge-Triggered D-Type Flip-Flop 5-SOT-23 -40 to 125 | SN74LVC1G79DBVT vs SN74LVC1G80DBVRG4 |
| SN74LVC1G80DBVT | Texas Instruments | $0.6680 | Single Positive-Edge-Triggered D-Type Flip-Flop 5-SOT-23 -40 to 125 | SN74LVC1G79DBVT vs SN74LVC1G80DBVT |
| SN74LVC1G79DBVRG4 | Texas Instruments | Check for Price | LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO5, GREEN, PLASTIC, SOT-23, 5 PIN | SN74LVC1G79DBVT vs SN74LVC1G79DBVRG4 |
| SN74LVC1G79DBVTE4 | Texas Instruments | Check for Price | LVC/LCX/Z SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO5, GREEN, PLASTIC, SOT-23, 5 PIN | SN74LVC1G79DBVT vs SN74LVC1G79DBVTE4 |
| PI74ST1G79TX | Pericom Semiconductor Corporation | Check for Price | D Flip-Flop, ST Series, 1-Func, Positive Edge Triggered, 1-Bit, True Output, CMOS, PDSO5, SOT-23, 5 PIN | SN74LVC1G79DBVT vs PI74ST1G79TX |
SN74LVC1G79DBVT Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVC1G79DBVT is 150 MHz.
-
Yes, the SN74LVC1G79DBVT is compatible with both 3.3V and 5V systems, making it a versatile component for various applications.
-
The propagation delay of the SN74LVC1G79DBVT is approximately 3.5 ns.
-
Yes, the SN74LVC1G79DBVT is suitable for high-speed applications due to its low propagation delay and high operating frequency.
-
The power consumption of the SN74LVC1G79DBVT is relatively low, with a typical quiescent current of 10 μA.
