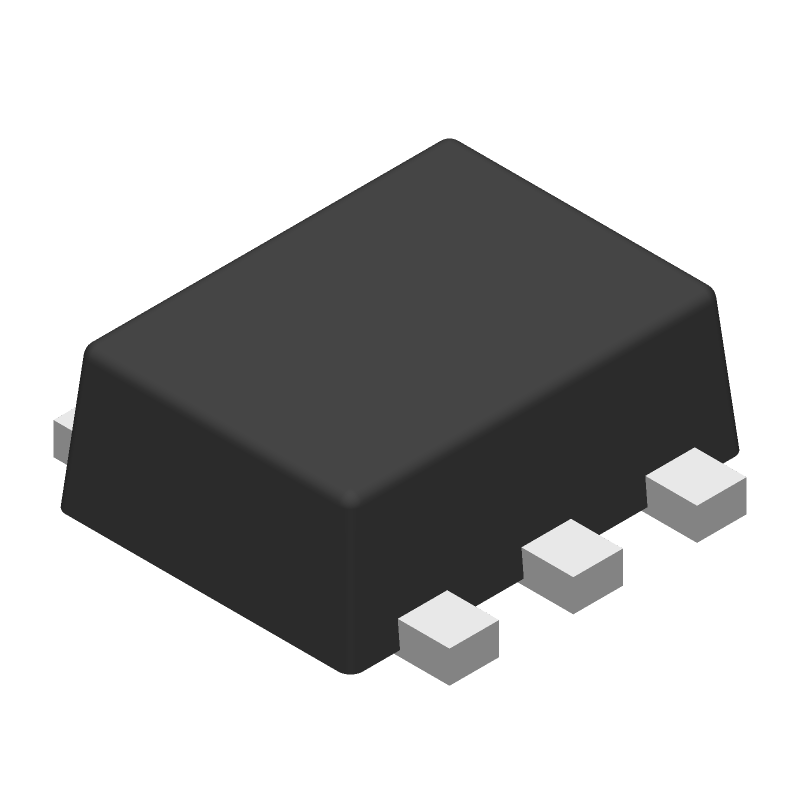

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LVC1G332DRLR by Texas Instruments
Results Overview of SN74LVC1G332DRLR by Texas Instruments
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74LVC1G332DRLR Information
SN74LVC1G332DRLR by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| SN74LVC1G332DRLR | Texas Instruments | Single 3-Input Positive-OR Gate 6-SOT-5X3 -40 to 125 |
Price & Stock for SN74LVC1G332DRLR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-SN74LVC1G332DRLR-ND
|
DigiKey | IC GATE OR 1CH 3-INP SOT5X3 Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
102087 In Stock |
|
$0.1100 | Buy Now |
|
DISTI #
296-18652-1-ND
|
DigiKey | IC GATE OR 1CH 3-INP SOT5X3 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2383 In Stock |
|
$0.0791 / $0.3300 | Buy Now |
|
DISTI #
595-SN74LVC1G332DRLR
|
Mouser Electronics | Logic Gates Sngl 3 Inp Pos OR Ga te RoHS: Compliant | 4412 |
|
$0.0780 / $0.3300 | Buy Now |
|
DISTI #
86287478
|
Verical | OR Gate 1-Element 3-IN CMOS 6-Pin SOT-563 T/R RoHS: Compliant Min Qty: 2953 Package Multiple: 1 Date Code: 1701 | Americas - 82087 |
|
$0.1270 | Buy Now |
|
DISTI #
86287711
|
Verical | OR Gate 1-Element 3-IN CMOS 6-Pin SOT-563 T/R RoHS: Compliant Min Qty: 2953 Package Multiple: 1 Date Code: 1401 | Americas - 20000 |
|
$0.1270 | Buy Now |
|
|
Quest Components | OR GATE, LVC/LCX/Z SERIES, 1-FUNC, 3-INPUT, CMOS, PDSO6 | 3882 |
|
$0.0585 / $0.1800 | Buy Now |
|
|
Rochester Electronics | SN74LVC1G332 Single 3-Input Positive-OR Gate RoHS: Compliant Status: Active Min Qty: 1 | 102087 |
|
$0.0630 / $0.1016 | Buy Now |
|
DISTI #
SN74LVC1G332DRLR
|
TME | IC: digital, OR, Ch: 1, IN: 3, CMOS, SMD, SOT5X3, 1.65÷5.5VDC, 10uA Min Qty: 3 | 0 |
|
$0.1940 / $0.4250 | RFQ |
|
|
LCSC | 10uA 1.65V5.5V 1 4.5ns5V50pF OR Gate SOT-5x3-6 Logic Gates ROHS | 280 |
|
$0.1571 / $0.2953 | Buy Now |
|
|
Vyrian | Logic ICs | 127466 |
|
RFQ |
Part Details for SN74LVC1G332DRLR
SN74LVC1G332DRLR CAD Models
SN74LVC1G332DRLR Part Data Attributes
|
|
SN74LVC1G332DRLR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC1G332DRLR
Texas Instruments
1-ch, 3-input 1.65-V to 5.5-V 32-mA drive strength OR gate 6-SOT-5X3 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT | |
| Package Description | SOT-553, 6 PIN | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-F6 | |
| JESD-609 Code | e4 | |
| Length | 1.6 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | OR GATE | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 3 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSOF | |
| Package Equivalence Code | FL6,.047,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.01 mA | |
| Prop. Delay@Nom-Sup | 4.8 ns | |
| Propagation Delay (tpd) | 17.2 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 0.6 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | FLAT | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.2 mm |
SN74LVC1G332DRLR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVC1G332DRLR is 100 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure signal integrity, use proper PCB layout techniques, such as using short signal traces, minimizing impedance mismatches, and adding termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
-
Yes, the SN74LVC1G332DRLR can be used in a 3.3V system. The recommended power supply voltage range is 1.65V to 3.6V, with a typical operating voltage of 3.3V. Ensure that the power supply is stable and within the recommended range to ensure proper device operation.
-
The SN74LVC1G332DRLR has built-in ESD protection, but it's still important to follow proper ESD handling procedures during device handling and assembly. Use an ESD wrist strap or mat, and ensure that the device is properly grounded during assembly and testing.
-
The SN74LVC1G332DRLR can sink or source up to 24 mA of current per output, but it's recommended to limit the current to 12 mA or less to ensure reliable operation and minimize power consumption.
