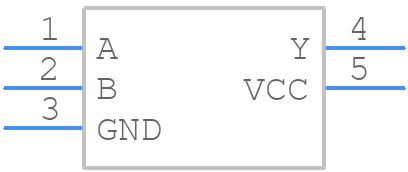

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LVC1G02DCKR by Texas Instruments
Results Overview of SN74LVC1G02DCKR by Texas Instruments
- Distributor Offerings: (23 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SN74LVC1G02DCKR Information
SN74LVC1G02DCKR by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC1G02DCKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-11598-1-ND
|
DigiKey | IC GATE NOR 1CH 2-INP SC70-5 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1514 In Stock |
|
$0.0301 / $0.1000 | Buy Now |
|
DISTI #
595-SN74LVC1G02DCKR
|
Mouser Electronics | Logic Gates Single 2 Input A 595-SN74LVC1G02DCKT RoHS: Compliant | 17232 |
|
$0.0320 / $0.1000 | Buy Now |
|
|
Bristol Electronics | 12045 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 27 | 5785 |
|
$0.0375 / $0.1875 | Buy Now |
|
|
Bristol Electronics | 4098 |
|
RFQ | ||
|
|
Bristol Electronics | 2945 |
|
RFQ | ||
|
|
Quest Components | LVC/LCX/Z SERIES, 2-INPUT NOR GATE, PDSO5 | 8296 |
|
$0.0448 / $0.2240 | Buy Now |
|
|
Quest Components | LVC/LCX/Z SERIES, 2-INPUT NOR GATE, PDSO5 | 6654 |
|
$0.4815 / $1.6050 | Buy Now |
|
|
Quest Components | LVC/LCX/Z SERIES, 2-INPUT NOR GATE, PDSO5 | 4628 |
|
$0.0500 / $0.2500 | Buy Now |
|
|
Quest Components | LVC/LCX/Z SERIES, 2-INPUT NOR GATE, PDSO5 | 3278 |
|
$0.0672 / $0.2240 | Buy Now |
Part Details for SN74LVC1G02DCKR
SN74LVC1G02DCKR CAD Models
SN74LVC1G02DCKR Part Data Attributes
|
|
SN74LVC1G02DCKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC1G02DCKR
Texas Instruments
Single 2-input, 1.65-V to 5.5-V NOR gate 5-SC70 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SC-70, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | NOR GATE | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.01 mA | |
| Prop. Delay@Nom-Sup | 4.5 ns | |
| Propagation Delay (tpd) | 8 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
Alternate Parts for SN74LVC1G02DCKR
This table gives cross-reference parts and alternative options found for SN74LVC1G02DCKR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC1G02DCKR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74LVC1G02DCKT | Texas Instruments | $0.3432 | Single 2-input, 1.65-V to 5.5-V NOR gate 5-SC70 -40 to 125 | SN74LVC1G02DCKR vs SN74LVC1G02DCKT |
| SN74LVC1G02DCK | Texas Instruments | Check for Price | LVC/LCX/Z SERIES, 2-INPUT NOR GATE, PDSO5, PLASTIC, SO-5 | SN74LVC1G02DCKR vs SN74LVC1G02DCK |
| SN74LVC1G02DCKRE4 | Texas Instruments | Check for Price | Single 2-input, 1.65-V to 5.5-V NOR gate 5-SC70 -40 to 125 | SN74LVC1G02DCKR vs SN74LVC1G02DCKRE4 |
| SN74LVC1G02DCKTG4 | Texas Instruments | Check for Price | Single 2-input, 1.65-V to 5.5-V NOR gate 5-SC70 -40 to 125 | SN74LVC1G02DCKR vs SN74LVC1G02DCKTG4 |
| PI74STX1G02CEX | Pericom Semiconductor Corporation | Check for Price | NOR Gate, STX Series, 1-Func, 2-Input, CMOS, PDSO5, GREEN, MO-203BA, SC-70, 5 PIN | SN74LVC1G02DCKR vs PI74STX1G02CEX |
| SN74LVC1G02DCKTE4 | Texas Instruments | Check for Price | LVC/LCX/Z SERIES, 2-INPUT NOR GATE, PDSO5, GREEN, PLASTIC, SC-70, 5 PIN | SN74LVC1G02DCKR vs SN74LVC1G02DCKTE4 |
SN74LVC1G02DCKR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVC1G02DCKR is 100 MHz.
-
Yes, the SN74LVC1G02DCKR is 5V tolerant, meaning it can accept input voltages up to 5.5V even though its recommended operating voltage is 1.65V to 3.6V.
-
The propagation delay of the SN74LVC1G02DCKR is typically around 3.5 ns at 3.3V and 25°C.
-
Yes, the SN74LVC1G02DCKR is rated for operation up to 125°C, making it suitable for use in high-temperature applications.
-
Yes, the SN74LVC1G02DCKR is a voltage-translating device that can be used in both 3.3V and 5V systems, making it a good choice for level shifting and voltage translation applications.
