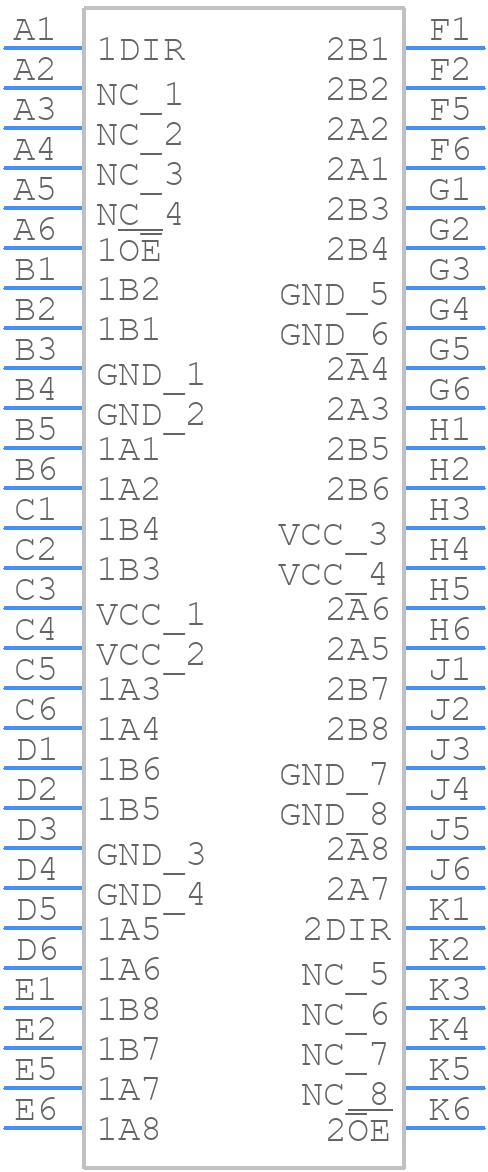

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LVC16245AZQLR by Texas Instruments
Results Overview of SN74LVC16245AZQLR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
SN74LVC16245AZQLR Information
SN74LVC16245AZQLR by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LVC16245AZQLR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | SN74LVC16245A 16-Bit Bus Transceiver With 3-State Outputs RoHS: Compliant Status: Obsolete Min Qty: 1 | 19 |
|
$0.7091 / $1.1400 | Buy Now |
|
|
Vyrian | Logic ICs | 19 |
|
RFQ |
Part Details for SN74LVC16245AZQLR
SN74LVC16245AZQLR CAD Models
SN74LVC16245AZQLR Part Data Attributes
|
|
SN74LVC16245AZQLR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LVC16245AZQLR
Texas Instruments
16-Bit Bus Transceiver With 3-State Outputs 56-BGA MICROSTAR JUNIOR -40 to 85
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Package Description | VFBGA-56 | |
| Pin Count | 56 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Control Type | COMMON CONTROL | |
| Count Direction | BIDIRECTIONAL | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PBGA-B56 | |
| JESD-609 Code | e1 | |
| Length | 7 mm | |
| Logic IC Type | BUS TRANSCEIVER | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 2 | |
| Number of Ports | 2 | |
| Number of Terminals | 56 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA56,6X10,25 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.02 mA | |
| Prop. Delay@Nom-Sup | 4 ns | |
| Propagation Delay (tpd) | 7.1 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.5 mm |
Alternate Parts for SN74LVC16245AZQLR
This table gives cross-reference parts and alternative options found for SN74LVC16245AZQLR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LVC16245AZQLR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74LVC16245ADGVR | Texas Instruments | $0.6117 | 16-Bit Bus Transceiver With 3-State Outputs 48-TVSOP -40 to 125 | SN74LVC16245AZQLR vs SN74LVC16245ADGVR |
| SN74LVCH16245ADL | Texas Instruments | $0.7217 | 16-Bit Bus Transceiver With 3-State Outputs 48-SSOP -40 to 125 | SN74LVC16245AZQLR vs SN74LVCH16245ADL |
| SN74ALVTH16374DLR | Texas Instruments | $0.8648 | 2.5-V/3.3-V 16-Bit Edge-Triggered D-Type Flip-Flops With 3-State Outputs 48-SSOP -40 to 85 | SN74LVC16245AZQLR vs SN74ALVTH16374DLR |
| SN74LVCR16245AZQLR | Texas Instruments | Check for Price | 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS 56-BGA MICROSTAR JUNIOR -40 to 85 | SN74LVC16245AZQLR vs SN74LVCR16245AZQLR |
| IDT74FCT163374CPAG | Renesas Electronics Corporation | Check for Price | Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48 | SN74LVC16245AZQLR vs IDT74FCT163374CPAG |
| SN74LVTH32374ZKER | Texas Instruments | Check for Price | 3.3-V ABT 32-Bit Edge-Triggered D-Type Flip-Flop With 3-State Outputs 96-LFBGA -40 to 85 | SN74LVC16245AZQLR vs SN74LVTH32374ZKER |
| 74ALVTH32374ZKER | Texas Instruments | Check for Price | 2.5-V/3.3-V 32-Bit Edge-Triggered D-Type Flip-Flops With 3-State Outputs 96-LFBGA -40 to 85 | SN74LVC16245AZQLR vs 74ALVTH32374ZKER |
| SN74ALVTH32373KR | Texas Instruments | Check for Price | 2.5-V/3.3-V 32-Bit Transparent D-Type Latches With 3-State Outputs 96-LFBGA -40 to 85 | SN74LVC16245AZQLR vs SN74ALVTH32373KR |
| SN74LVTH32373GKER | Texas Instruments | Check for Price | 3.3-V ABT 32-Bit Transparent D-Type Latch With 3-State Outputs 96-LFBGA -40 to 85 | SN74LVC16245AZQLR vs SN74LVTH32373GKER |
| 74LVT16374ADL | NXP Semiconductors | Check for Price | IC LVT SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, 7.50 MM, PLASTIC, MO-118, SOT370-1, SSOP-48, Bus Driver/Transceiver | SN74LVC16245AZQLR vs 74LVT16374ADL |
SN74LVC16245AZQLR Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the SN74LVC16245AZQLR is 100 MHz.
-
Yes, the SN74LVC16245AZQLR is 3.3V tolerant, meaning it can accept input signals up to 3.3V even though its VCC is 1.8V.
-
The propagation delay of the SN74LVC16245AZQLR is approximately 2.5 ns.
-
No, the SN74LVC16245AZQLR is not recommended for use in a 1.5V system. The minimum recommended VCC is 1.8V.
-
Yes, the SN74LVC16245AZQLR is lead-free and RoHS compliant, making it suitable for use in environmentally friendly designs.
