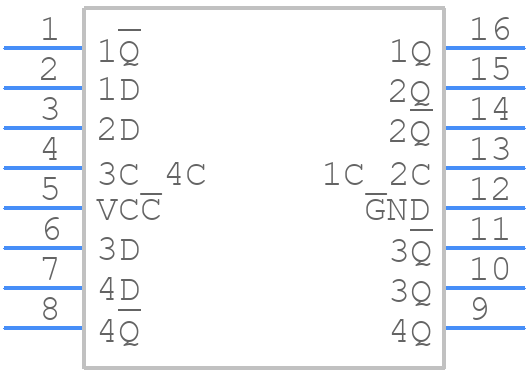

Part Symbol
-

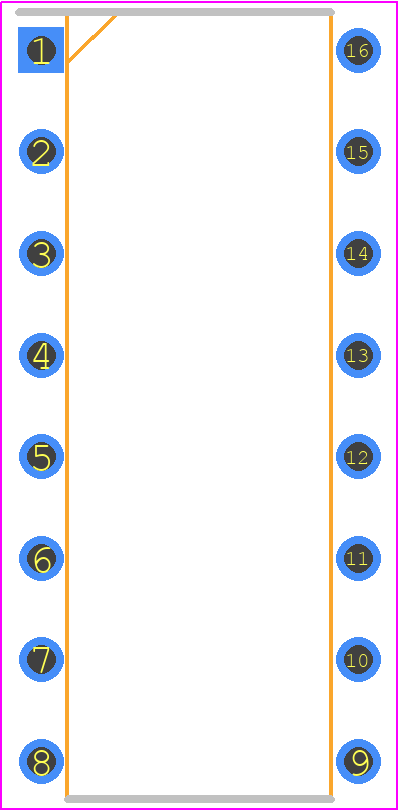

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LS75N by Texas Instruments
Results Overview of SN74LS75N by Texas Instruments
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Financial Technology (Fintech)
Healthcare
SN74LS75N Information
SN74LS75N by Texas Instruments is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LS75N
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
37AJ1168
|
Newark | Ic, 74Ls, 74Ls75, Dip16, 5.25V, Logic Family/Base Number:74Ls75, Latch Type:D Type Bistable, Ic Output Type:Differential, Propagation Delay:15Ns, Output Current:8Ma, Logic Case Style:Dip, No. Of Pins:16Pins, Supply Voltage Rohs Compliant: Yes |Texas Instruments SN74LS75N RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 928 |
|
$2.3600 / $2.6600 | Buy Now |
|
DISTI #
2156-SN74LS75N-ND
|
DigiKey | IC D-TYPE TRANSP 1:1 16-PDIP Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
21273 In Stock |
|
$1.6200 | Buy Now |
|
DISTI #
296-3744-5-ND
|
DigiKey | IC D-TYPE TRANSP 1:1 16-PDIP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
699 In Stock |
|
$1.3637 / $2.6600 | Buy Now |
|
DISTI #
595-SN74LS75N
|
Mouser Electronics | Latches Quad bistable latch RoHS: Compliant | 642 |
|
$1.3600 / $2.6600 | Buy Now |
|
DISTI #
J56:1989_00103503
|
Arrow Electronics | Latch Transparent 4-CH D-Type 16-Pin PDIP Tube RoHS: Compliant Min Qty: 25 Package Multiple: 25 Lead time: 6 Weeks Date Code: 2024 | Europe - 375 |
|
$1.1740 / $1.3430 | Buy Now |
|
DISTI #
86040780
|
Verical | Latch Transparent 4-CH D-Type 16-Pin PDIP Tube RoHS: Compliant Min Qty: 193 Package Multiple: 1 Date Code: 1001 | Americas - 12677 |
|
$1.2063 / $1.9500 | Buy Now |
|
DISTI #
86027991
|
Verical | Latch Transparent 4-CH D-Type 16-Pin PDIP Tube RoHS: Compliant Min Qty: 193 Package Multiple: 1 Date Code: 0001 | Americas - 8000 |
|
$1.2063 / $1.9500 | Buy Now |
|
DISTI #
86040378
|
Verical | Latch Transparent 4-CH D-Type 16-Pin PDIP Tube RoHS: Compliant Min Qty: 193 Package Multiple: 1 Date Code: 0101 | Americas - 301 |
|
$1.2063 / $1.9500 | Buy Now |
|
DISTI #
86041227
|
Verical | Latch Transparent 4-CH D-Type 16-Pin PDIP Tube RoHS: Compliant Min Qty: 193 Package Multiple: 1 Date Code: 0601 | Americas - 250 |
|
$1.2063 / $1.9500 | Buy Now |
|
|
Bristol Electronics | 25 |
|
RFQ |
Part Details for SN74LS75N
SN74LS75N CAD Models
SN74LS75N Part Data Attributes
|
|
SN74LS75N
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LS75N
Texas Instruments
Quad bistable latches 16-PDIP 0 to 70
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | LS | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e4 | |
| Length | 19.305 mm | |
| Load Capacitance (CL) | 15 pF | |
| Logic IC Type | D LATCH | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 2 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power Supply Current-Max (ICC) | 53 mA | |
| Prop. Delay@Nom-Sup | 40 ns | |
| Propagation Delay (tpd) | 25 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 4.75 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | TTL | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Trigger Type | HIGH LEVEL | |
| Width | 7.62 mm | |
| fmax-Min | 35 MHz |
Alternate Parts for SN74LS75N
This table gives cross-reference parts and alternative options found for SN74LS75N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LS75N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| N74LS75N | YAGEO Corporation | Check for Price | D Latch, LS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDIP16, DIP-16 | SN74LS75N vs N74LS75N |
| S54LS75F | Philips Semiconductors | Check for Price | D Latch, 1-Func, 4-Bit, TTL, CDIP16 | SN74LS75N vs S54LS75F |
| SN74LS75ND | Motorola Mobility LLC | Check for Price | LS SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDIP16, PLASTIC, DIP-16 | SN74LS75N vs SN74LS75ND |
| 5962-7601201VEA | Texas Instruments | Check for Price | 4-Bit Bistable Latches 16-CDIP -55 to 125 | SN74LS75N vs 5962-7601201VEA |
| SN74LS75NS | Motorola Semiconductor Products | Check for Price | D Latch, LS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16 | SN74LS75N vs SN74LS75NS |
| HD74LS75P | Hitachi Ltd | Check for Price | D Latch, LS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDIP16, DP-16 | SN74LS75N vs HD74LS75P |
| SN74LS75N-00 | Texas Instruments | Check for Price | LS SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDIP16, PLASTIC, DIP-16 | SN74LS75N vs SN74LS75N-00 |
| 54LS75/BEAJC | Motorola Semiconductor Products | Check for Price | D Latch, LS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, CDIP16, CERDIP-16 | SN74LS75N vs 54LS75/BEAJC |
| SN54LS75JD | Motorola Mobility LLC | Check for Price | LS SERIES, DUAL HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, CDIP16, CERAMIC, DIP-16 | SN74LS75N vs SN54LS75JD |
SN74LS75N Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the SN74LS75N is 2 MHz, but it can be operated at higher frequencies with proper signal conditioning and layout.
-
The SN74LS75N requires a 5V power supply, and it's recommended to use a 0.1uF decoupling capacitor between VCC and GND, as close to the device as possible, to reduce noise and ensure stable operation.
-
The SN74LS75N can sink or source up to 16mA of current per output, but it's recommended to limit the current to 10mA or less to ensure reliable operation.
-
The CLR input should be tied to VCC through a 1kΩ resistor and a 0.01uF capacitor to ensure proper reset operation. The CLR input should be driven low to reset the device, and then released to allow normal operation.
-
The propagation delay of the SN74LS75N is typically around 10-15ns, but it can vary depending on the operating conditions and load capacitance.
