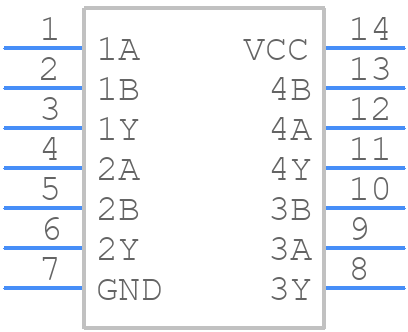

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LS09DR by Texas Instruments
Results Overview of SN74LS09DR by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Financial Technology (Fintech)
Healthcare
SN74LS09DR Information
SN74LS09DR by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LS09DR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-14880-1-ND
|
DigiKey | IC GATE AND 4CH 2-INP 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2829 In Stock |
|
$0.2497 / $0.6000 | Buy Now |
|
DISTI #
595-SN74LS09DR
|
Mouser Electronics | Logic Gates Quad 2-input pos-AND gate A 595-SN74LS09D RoHS: Compliant | 2545 |
|
$0.2450 / $0.6000 | Buy Now |
|
DISTI #
V72:2272_07345121
|
Arrow Electronics | AND Gate 4-Element 2-IN Bipolar 14-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2051 Container: Cut Strips | Americas - 2057 |
|
$0.1167 / $0.2280 | Buy Now |
|
|
Bristol Electronics | 3377 |
|
RFQ | ||
|
|
Bristol Electronics | 1971 |
|
RFQ | ||
|
|
Quest Components | LS SERIES, QUAD 2-INPUT AND GATE, PDSO14 | 2000 |
|
$0.6300 / $1.8000 | Buy Now |
|
DISTI #
SN74LS09DR
|
TME | IC: digital, AND, Ch: 4, IN: 2, SMD, SO14, OUT: open collector, 74LS Min Qty: 1 | 0 |
|
$0.3580 / $0.7700 | RFQ |
|
|
ComSIT USA | AND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
LCSC | 4.75V5.25V 4 35ns5V15pF AND Gate SOIC-14 Logic Gates ROHS | 298 |
|
$0.6292 / $1.0048 | Buy Now |
Part Details for SN74LS09DR
SN74LS09DR CAD Models
SN74LS09DR Part Data Attributes
|
|
SN74LS09DR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LS09DR
Texas Instruments
4-ch, 2-input, 4.75-V to 5.25-V 16-mA drive strength bipolar AND gate with open-collector outputs 14-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | LS | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 15 pF | |
| Logic IC Type | AND GATE | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Characteristics | OPEN-COLLECTOR | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 8.8 mA | |
| Prop. Delay@Nom-Sup | 35 ns | |
| Propagation Delay (tpd) | 35 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 4.75 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | TTL | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for SN74LS09DR
This table gives cross-reference parts and alternative options found for SN74LS09DR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74LS09DR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74LS09SC | Fairchild Semiconductor Corporation | Check for Price | AND Gate, TTL, PDSO14 | SN74LS09DR vs 74LS09SC |
| DM74LS09M | Rochester Electronics LLC | Check for Price | AND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, 0.150 INCH, MS-120, SOIC-14 | SN74LS09DR vs DM74LS09M |
SN74LS09DR Frequently Asked Questions (FAQ)
-
The SN74LS09DR is a digital logic gate and does not have a clock input, so it does not have a maximum clock frequency.
-
The SN74LS09DR is a 5V device, but it can be used in a 3.3V system with some limitations. The output voltage will be lower than 5V, and the noise margin will be reduced.
-
To avoid glitches, it is recommended to sequence the inputs to the SN74LS09DR in a way that avoids simultaneous transitions on both inputs. If simultaneous transitions cannot be avoided, a short pulse stretcher or a synchronizer circuit can be used to clean up the output.
-
Yes, you can use the SN74LS09DR as an inverter by tying one input high or low. This is a common practice, but keep in mind that the output will not be a perfect inversion of the input due to the internal circuitry of the device.
-
The power consumption of the SN74LS09DR depends on the operating frequency, input voltage, and output load. According to the datasheet, the typical power consumption is around 20-30 mW at 5V and 1 kHz.
