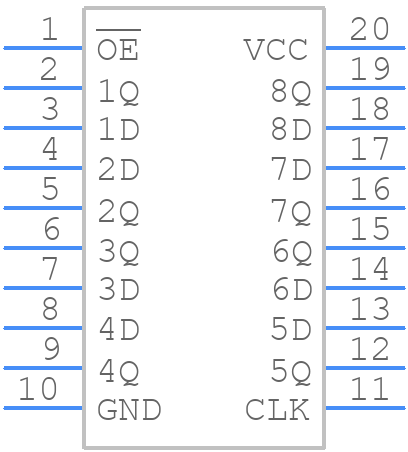

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74HCT374DW by Texas Instruments
Results Overview of SN74HCT374DW by Texas Instruments
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
SN74HCT374DW Information
SN74HCT374DW by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74HCT374DW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86027579
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC Tube RoHS: Compliant Min Qty: 465 Package Multiple: 1 Date Code: 0201 | Americas - 63325 |
|
$0.8066 | Buy Now |
|
DISTI #
86039429
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC Tube RoHS: Compliant Min Qty: 465 Package Multiple: 1 Date Code: 1201 | Americas - 6350 |
|
$0.8066 | Buy Now |
|
DISTI #
86036097
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC Tube RoHS: Compliant Min Qty: 465 Package Multiple: 1 Date Code: 0601 | Americas - 4296 |
|
$0.8066 | Buy Now |
|
DISTI #
86026009
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC Tube RoHS: Compliant Min Qty: 465 Package Multiple: 1 Date Code: 1301 | Americas - 3488 |
|
$0.8066 | Buy Now |
|
DISTI #
86026899
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC Tube RoHS: Compliant Min Qty: 465 Package Multiple: 1 Date Code: 1101 | Americas - 3000 |
|
$0.8066 | Buy Now |
|
DISTI #
86020750
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC Tube RoHS: Compliant Min Qty: 465 Package Multiple: 1 | Americas - 2907 |
|
$0.8066 | Buy Now |
|
DISTI #
86039986
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC Tube RoHS: Compliant Min Qty: 465 Package Multiple: 1 Date Code: 1001 | Americas - 2100 |
|
$0.8066 | Buy Now |
|
DISTI #
86048071
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC Tube RoHS: Compliant Min Qty: 465 Package Multiple: 1 Date Code: 0401 | Americas - 1000 |
|
$0.8066 | Buy Now |
|
|
Bristol Electronics | 2060 |
|
RFQ | ||
|
|
Bristol Electronics | 858 |
|
RFQ |
Part Details for SN74HCT374DW
SN74HCT374DW CAD Models
SN74HCT374DW Part Data Attributes
|
|
SN74HCT374DW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74HCT374DW
Texas Instruments
Octal D-type Edge-Triggered Flip-Flops With 3-State Outputs 20-SOIC -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Control Type | ENABLE LOW | |
| Count Direction | UNIDIRECTIONAL | |
| Family | HCT | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 12.8 mm | |
| Load Capacitance (CL) | 150 pF | |
| Logic IC Type | BUS DRIVER | |
| Max Frequency@Nom-Sup | 25000000 Hz | |
| Max I(ol) | 0.006 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 8 | |
| Number of Ports | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.08 mA | |
| Prop. Delay@Nom-Sup | 45 ns | |
| Propagation Delay (tpd) | 58 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 7.5 mm |
Alternate Parts for SN74HCT374DW
This table gives cross-reference parts and alternative options found for SN74HCT374DW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN74HCT374DW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74HCT374DWG4 | Texas Instruments | $0.2201 | Octal D-type Edge-Triggered Flip-Flops With 3-State Outputs 20-SOIC -40 to 85 | SN74HCT374DW vs SN74HCT374DWG4 |
| MM74HCT374WMX | Texas Instruments | Check for Price | HCT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, SO-20 | SN74HCT374DW vs MM74HCT374WMX |
| GD74HCT374D | Goldstar Electron Co Ltd | Check for Price | Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, | SN74HCT374DW vs GD74HCT374D |
| 933713490652 | NXP Semiconductors | Check for Price | IC HCT SERIES, OCTAL 1-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, SO-20, Bus Driver/Transceiver | SN74HCT374DW vs 933713490652 |
| MM74HCT374WMX_NL | Fairchild Semiconductor Corporation | Check for Price | Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.300 INCH, MS-013, SOIC-20 | SN74HCT374DW vs MM74HCT374WMX_NL |
| MC74HCT374ADWR2 | Motorola Mobility LLC | Check for Price | HCT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20 | SN74HCT374DW vs MC74HCT374ADWR2 |
| HD74HCT374RP | Hitachi Ltd | Check for Price | Bus Driver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, FP-20DB | SN74HCT374DW vs HD74HCT374RP |
| MM74HCT374WM | Texas Instruments | Check for Price | HCT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, SO-20 | SN74HCT374DW vs MM74HCT374WM |
SN74HCT374DW Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the SN74HCT374DW is 40 MHz.
-
To ensure that the output signals are not distorted or skewed, it is recommended to use a low-impedance output driver, such as a 74HCT244, and to keep the output traces as short as possible.
-
The recommended power-on sequence for the SN74HCT374DW is to apply power to the VCC pin first, followed by the input signals. This helps to prevent latch-up and ensures proper device operation.
-
During power-up, it is recommended to hold the CLR input low for at least 10 ns to ensure that the device is properly reset. After power-up, the CLR input can be released to allow normal device operation.
-
The maximum capacitive load that the SN74HCT374DW can drive is 100 pF. Exceeding this limit may cause signal distortion or device malfunction.
